Automatic Transmission/Transaxle

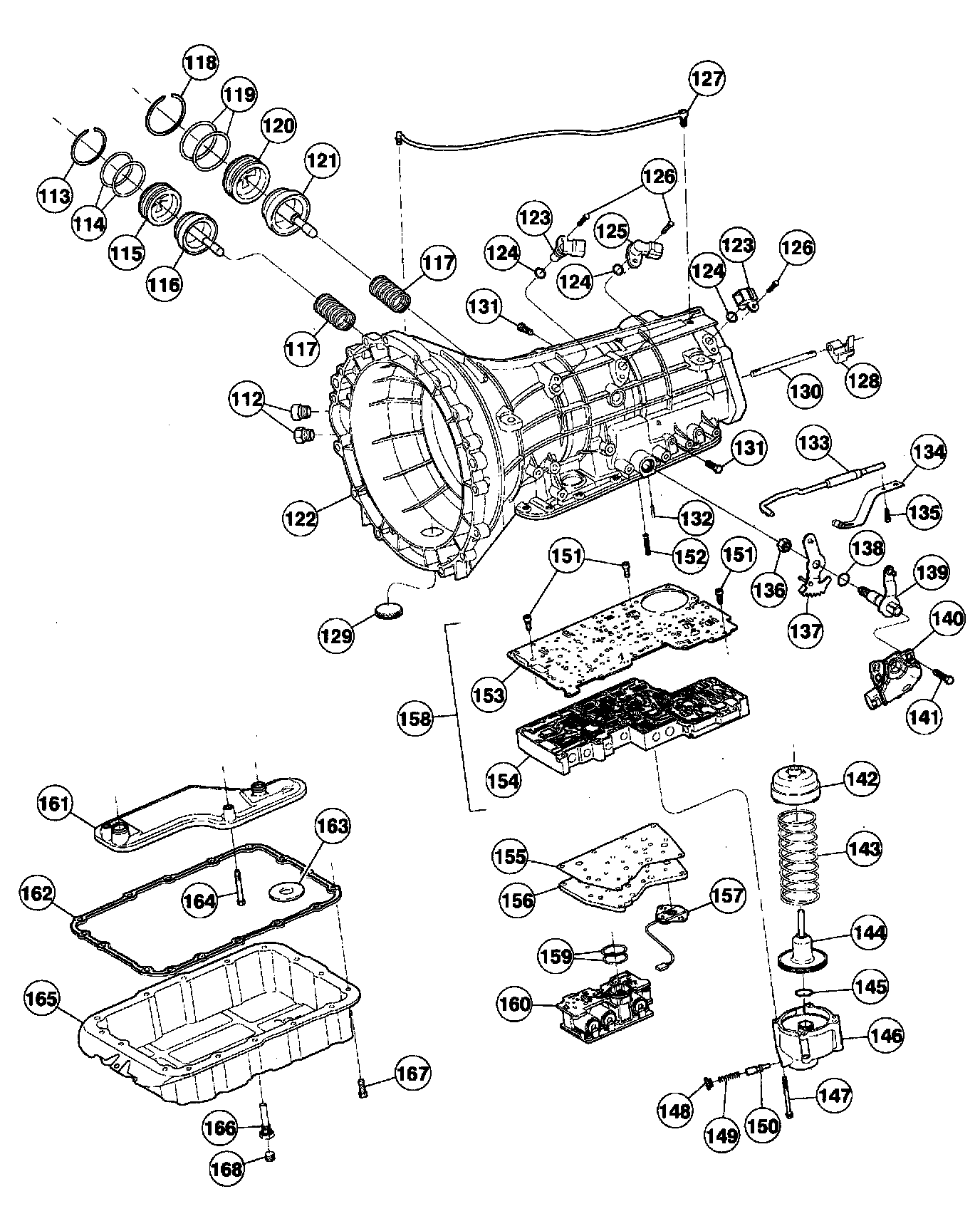

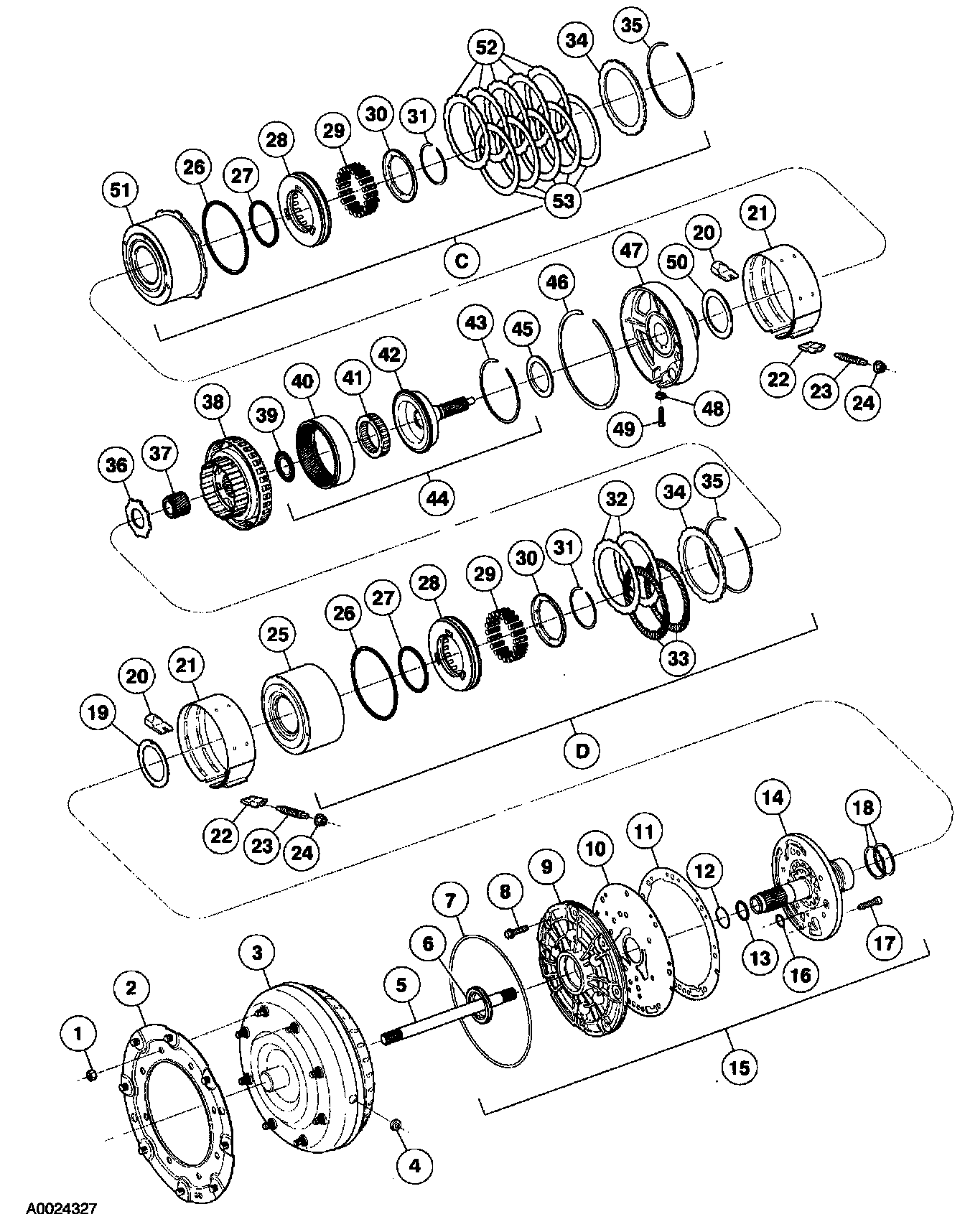

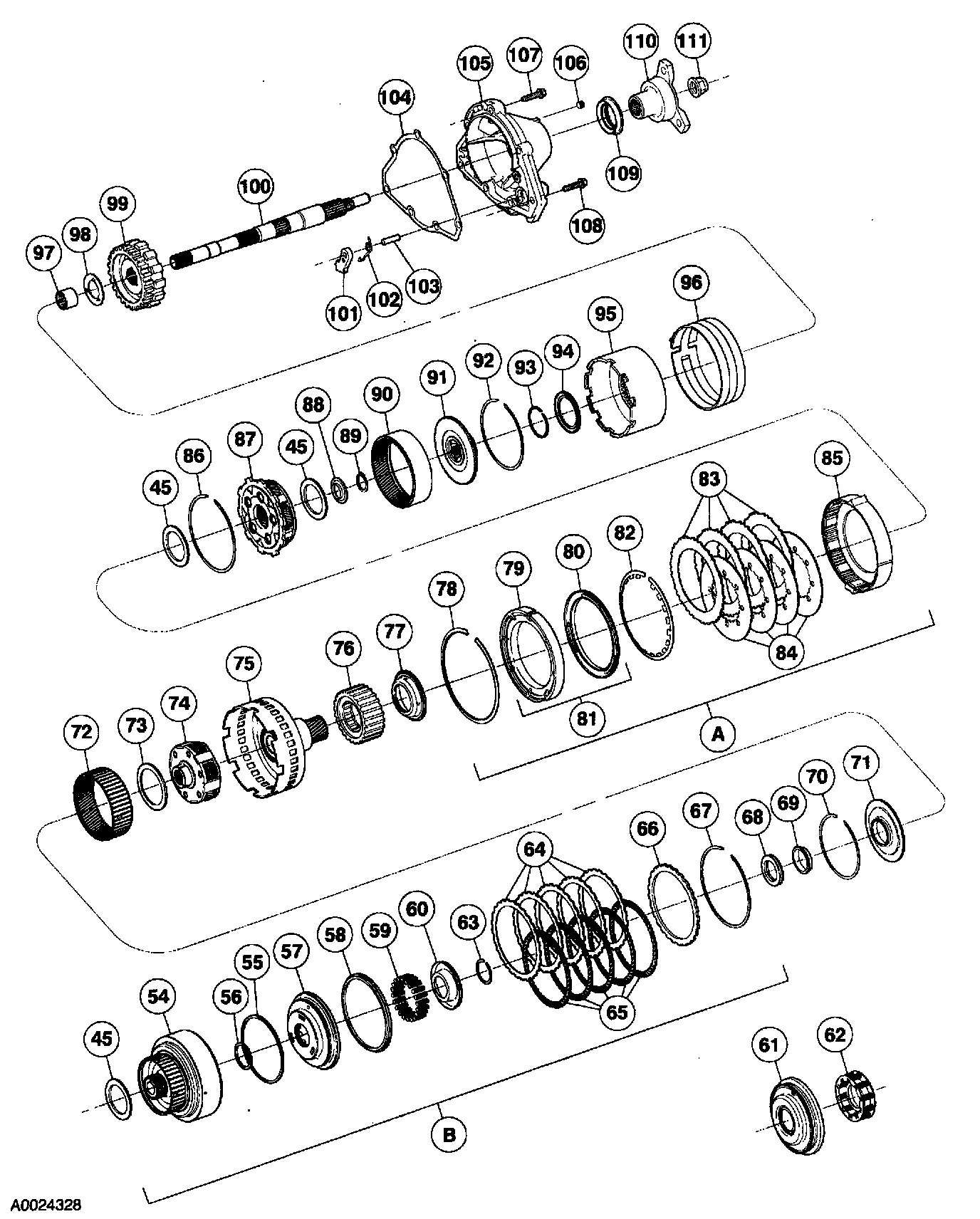

Disassembled Views

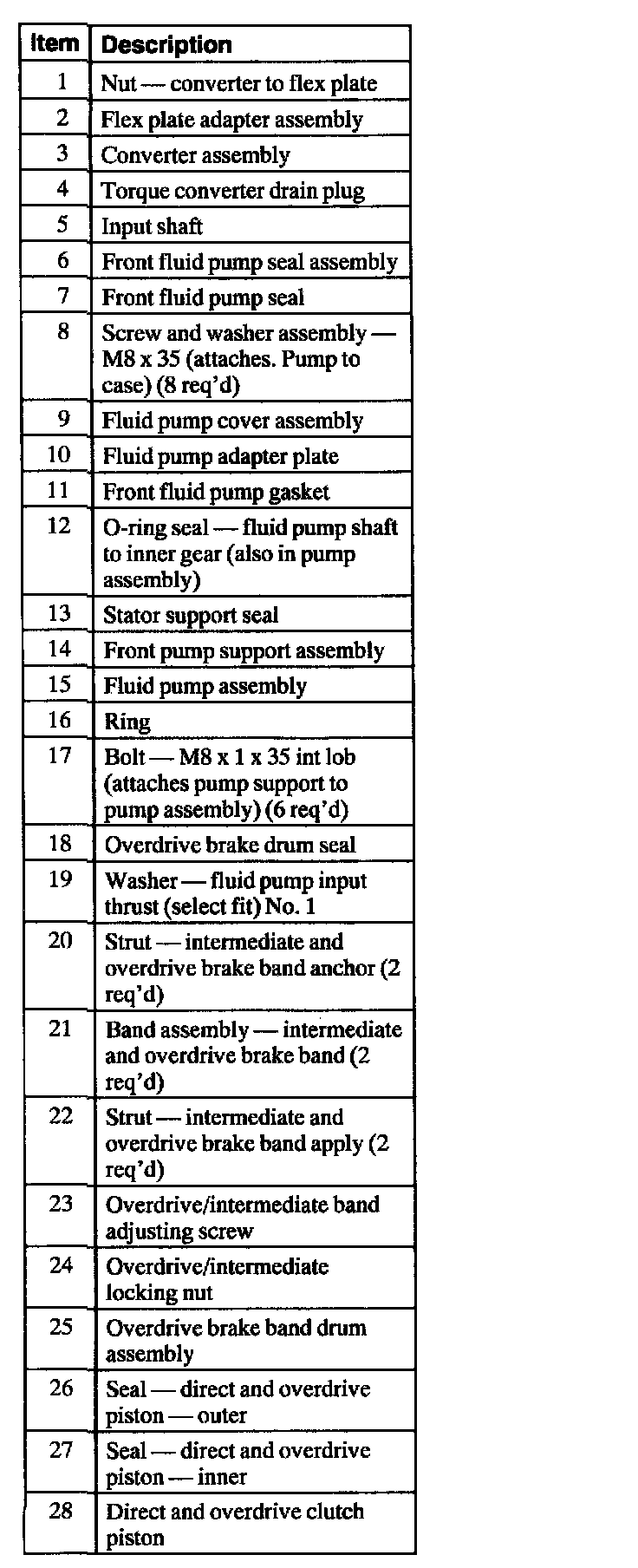

Items 1-28

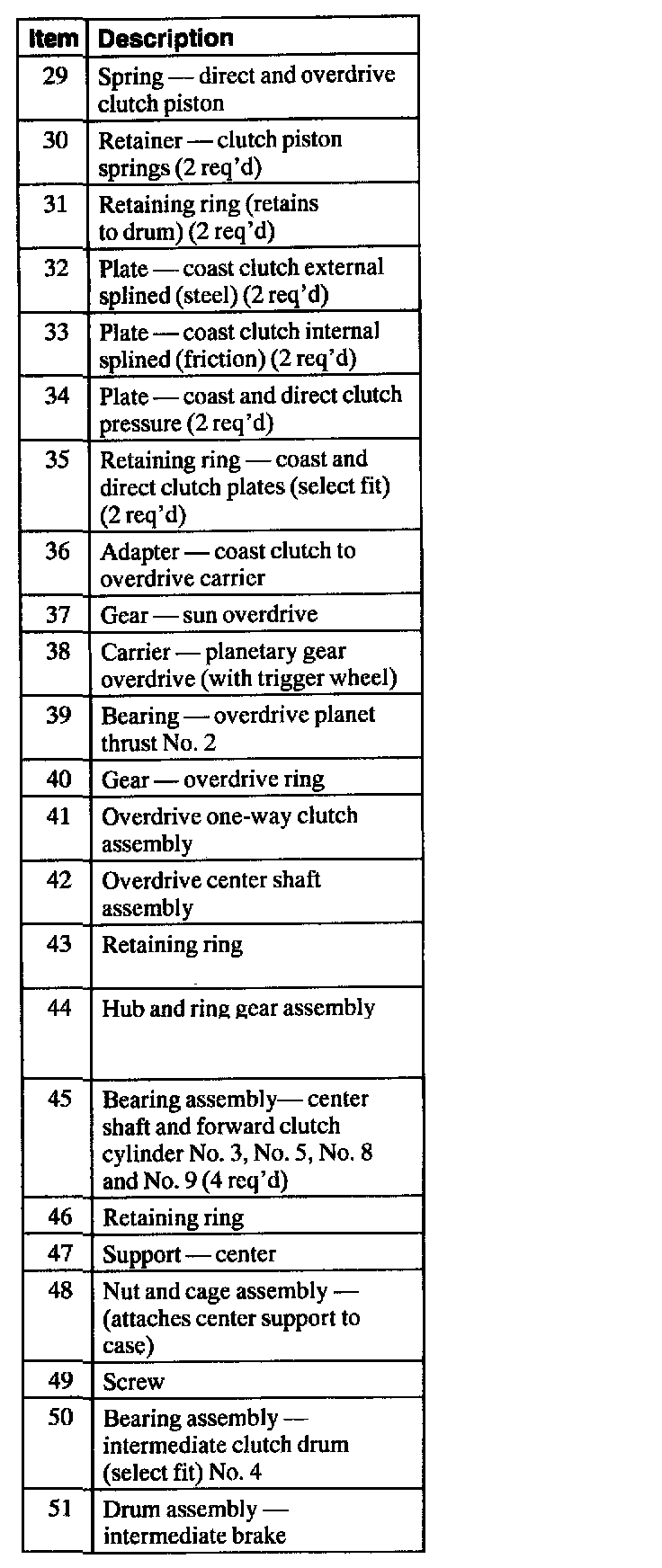

Items 29-51

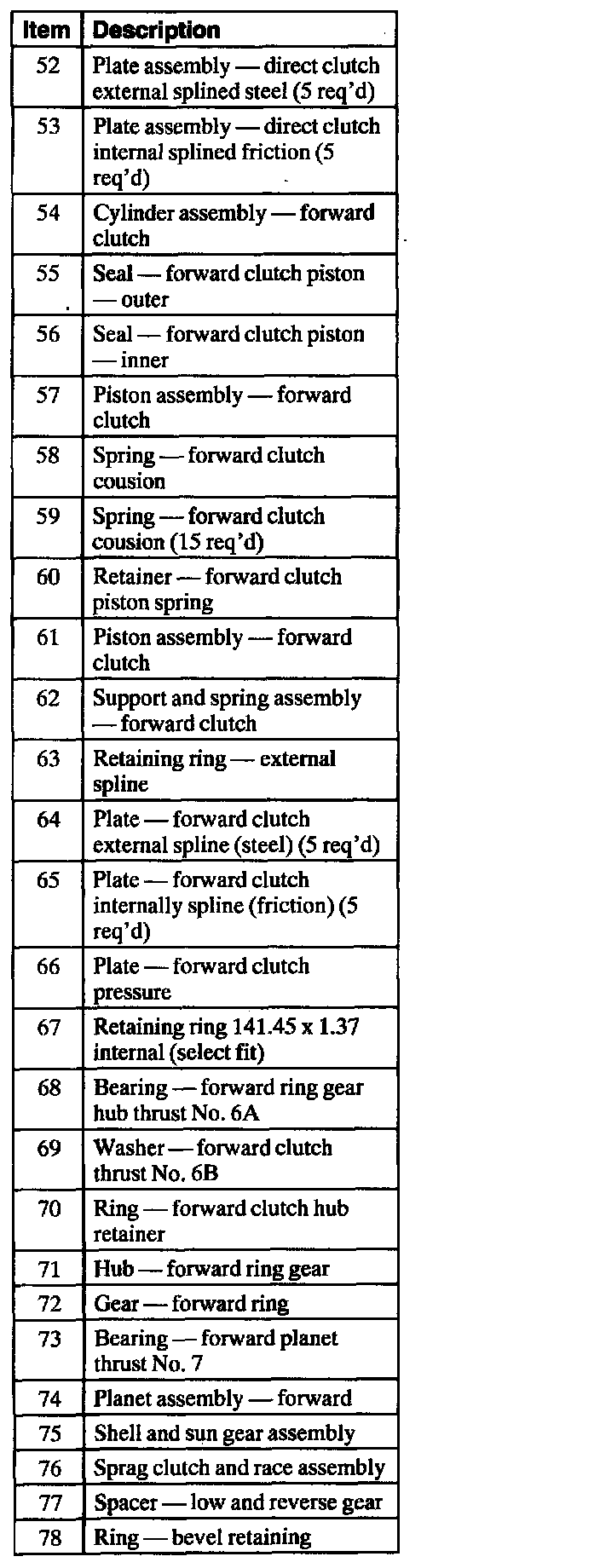

Items 52-78

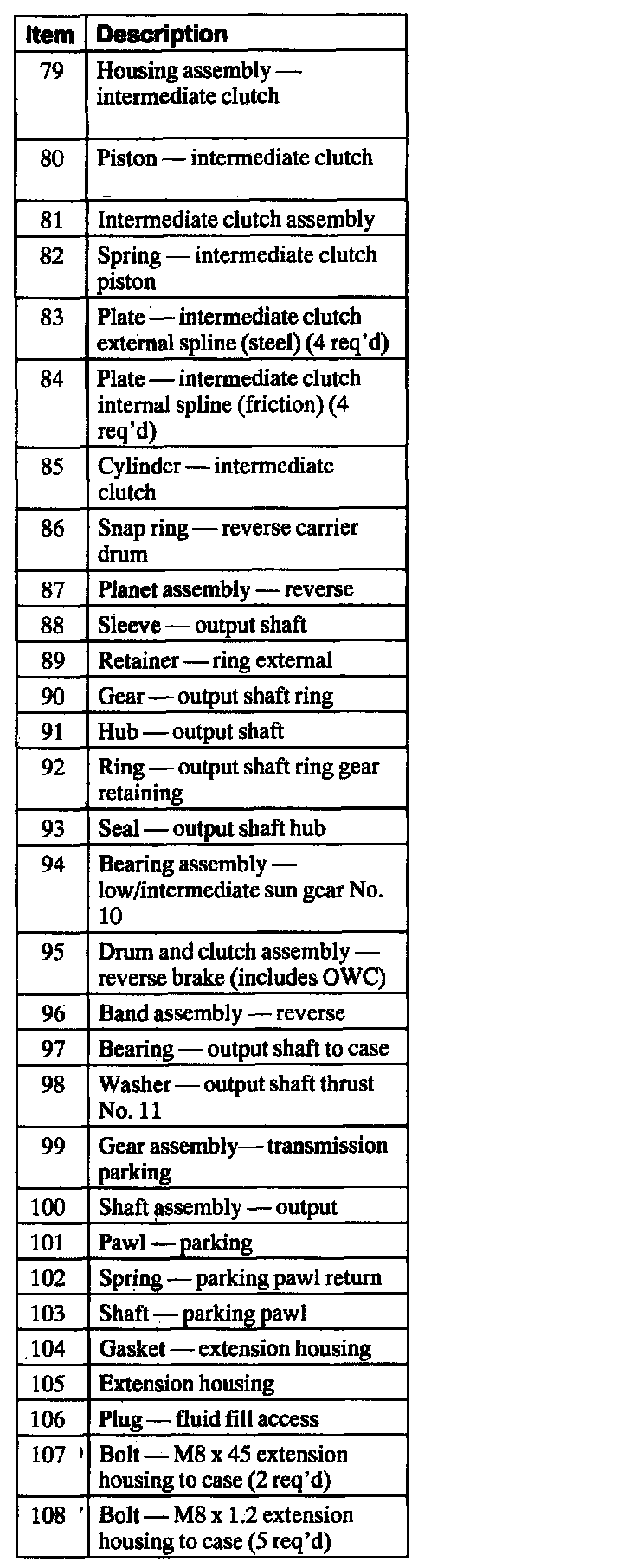

Items 79-108

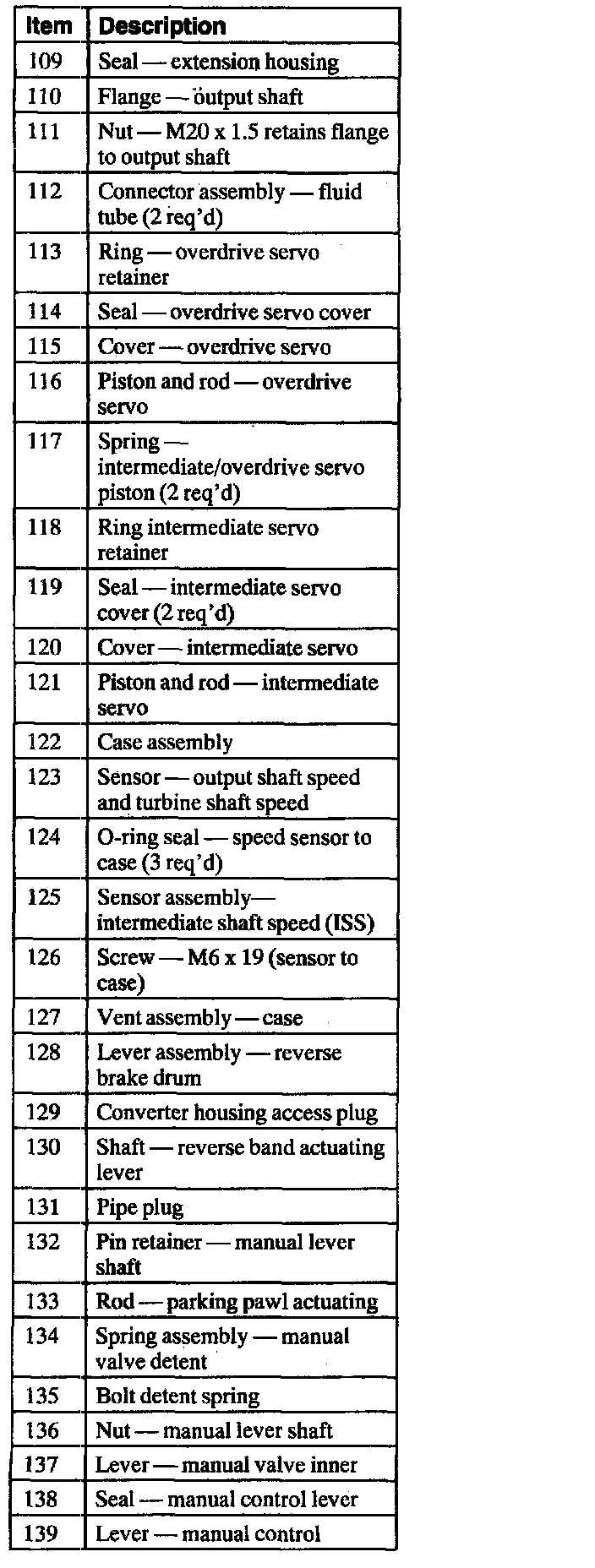

Items 109-139

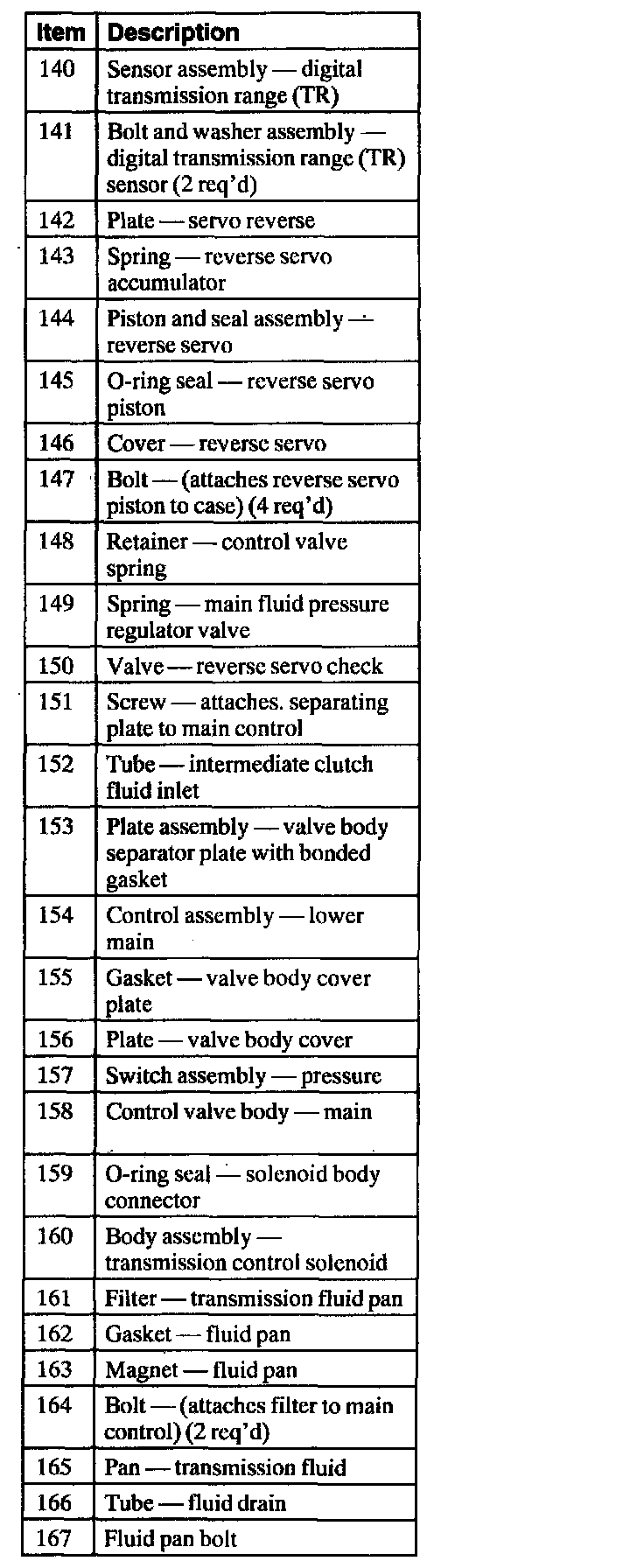

Items 140-167






Items 168 and A-D
