Front Wheel Speed Sensor: Notes

  1. Remove the components in the order indicated in the following illustration and table.
  2. Install in the reverse order of removal.

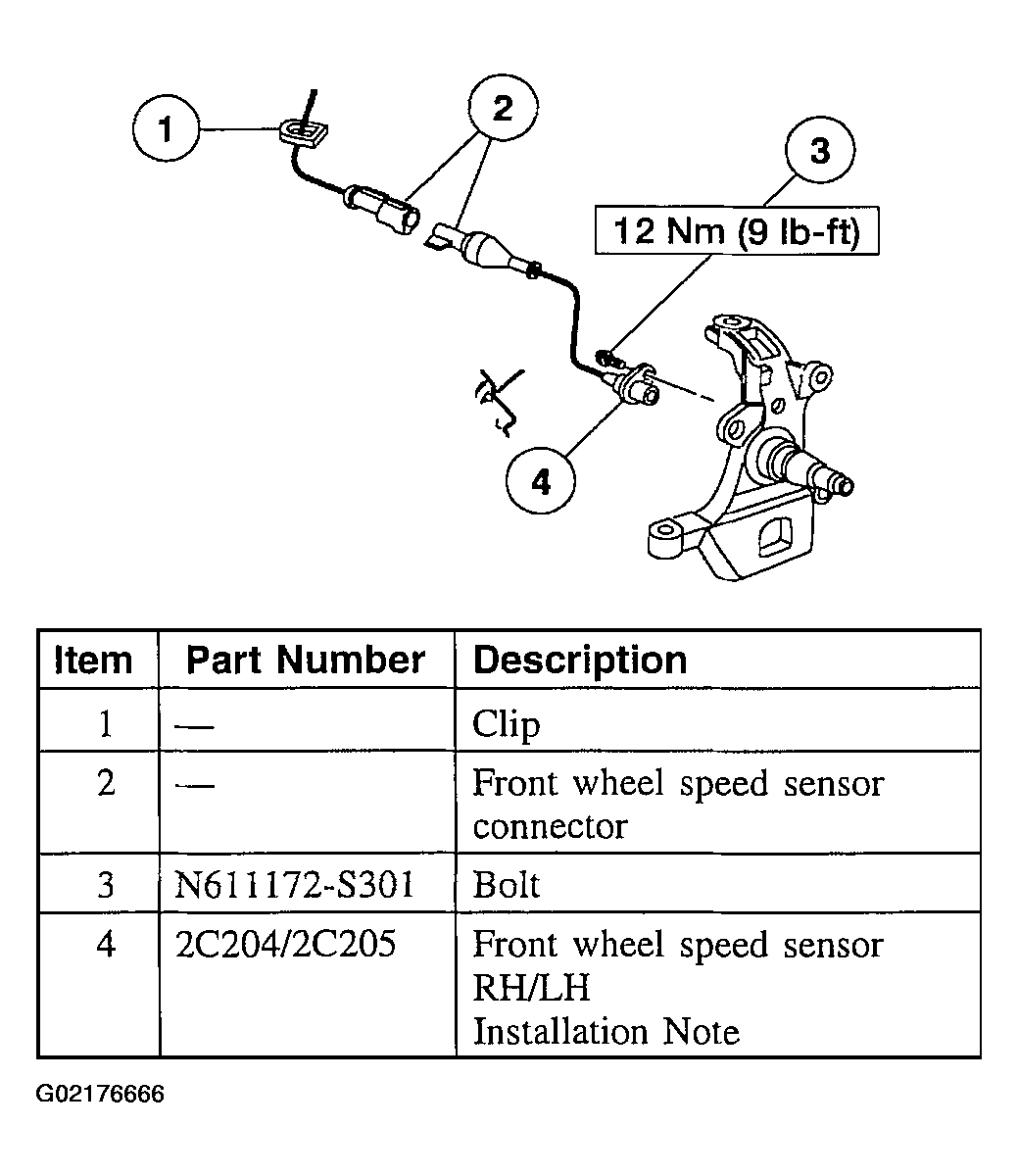

    Fig 1: Removing Sequence Of Front Wheel Speed Sensor
    G02176666Courtesy of FORD MOTOR CO.
