Pump Assembly, Disassembled View

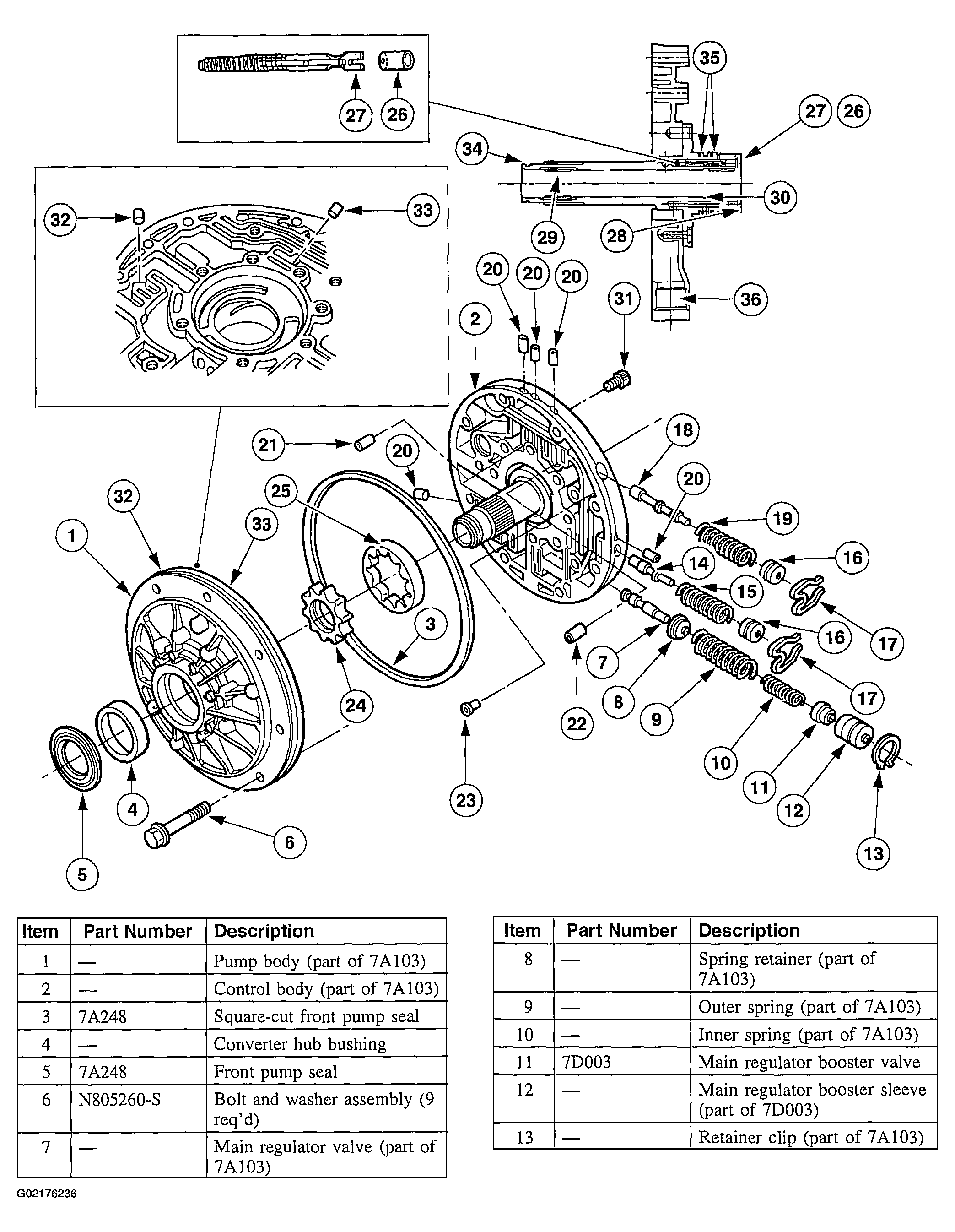

Fig 1: Disassembled View Of Pump Assembly And Components Description
G02176236Courtesy of FORD MOTOR CO.

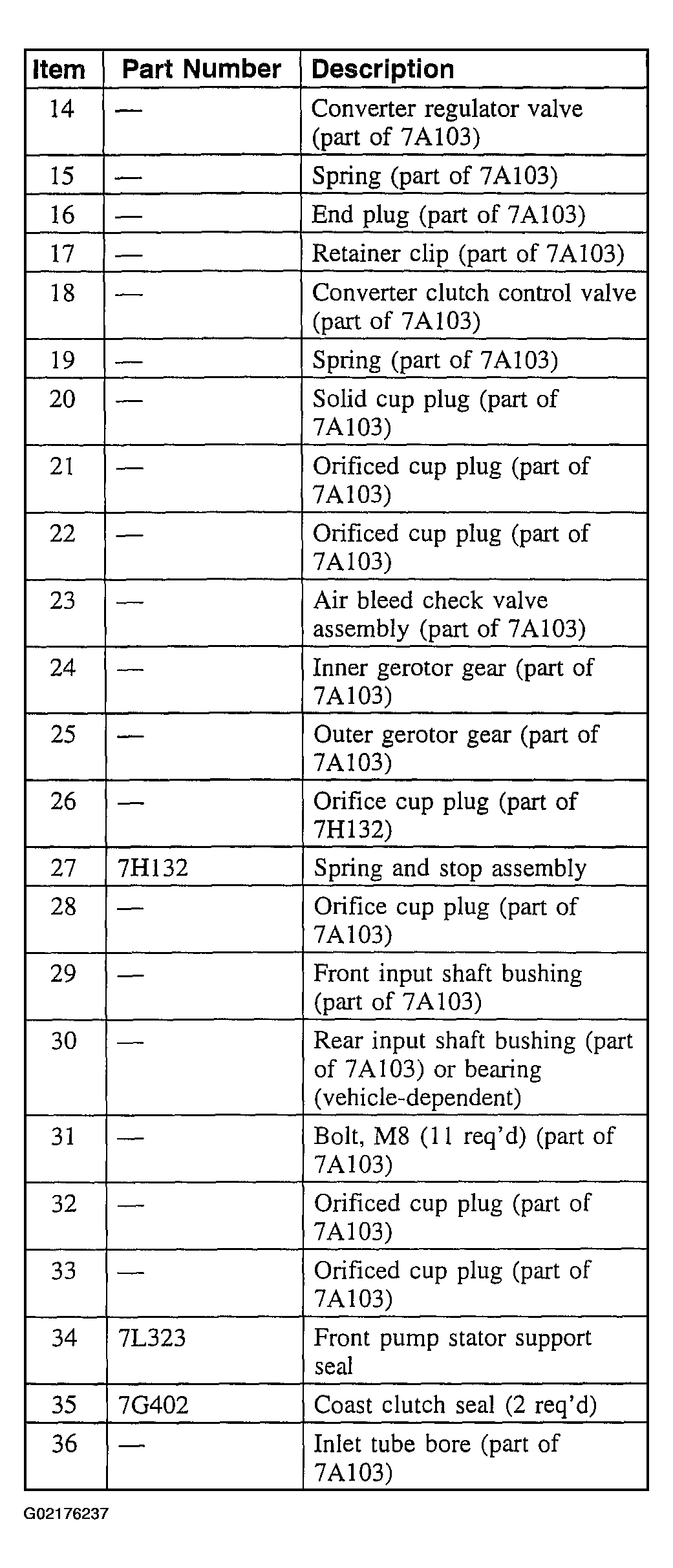

Fig 2: Pump Assembly Components Description
G02176237Courtesy of FORD MOTOR CO.
