Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

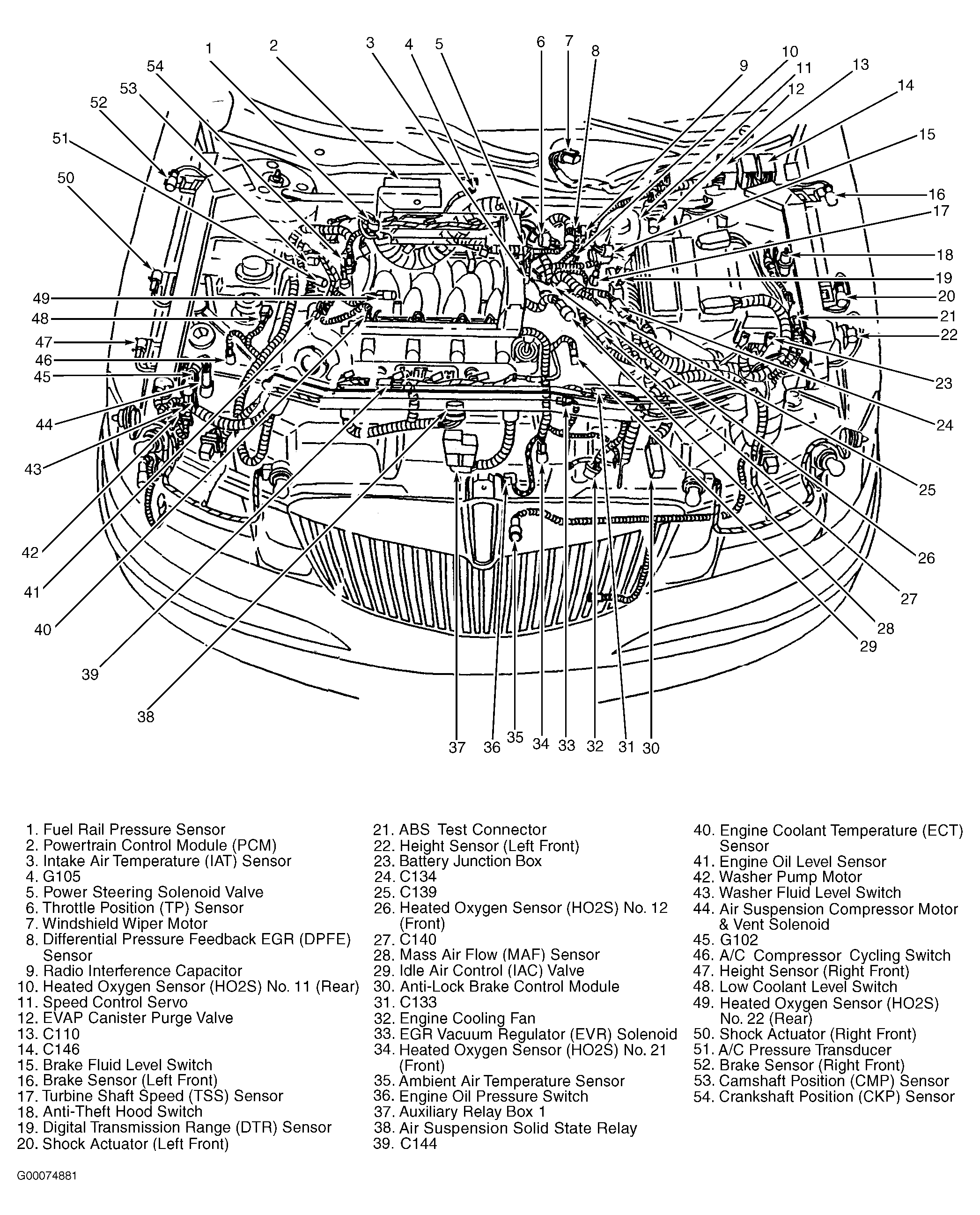

| Auxiliary Relay Box 1 |
Center of engine compartment, on upper radiator support. See Figure. |
| Battery Junction Box |
In engine compartment, above left wheelwell. See Figure. |

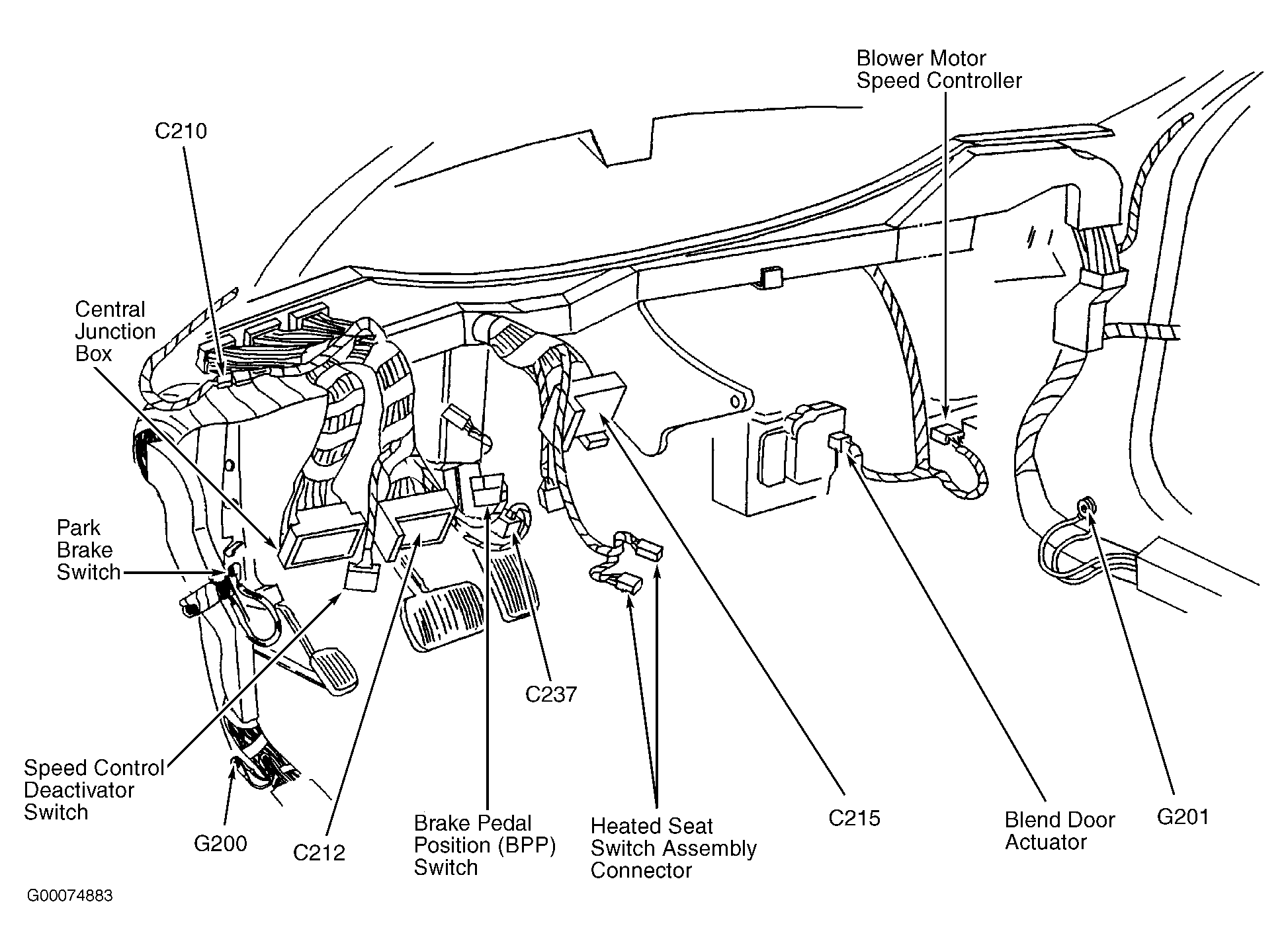

| Central Junction Box |
Below left side of dash. See Figure. |
