Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module

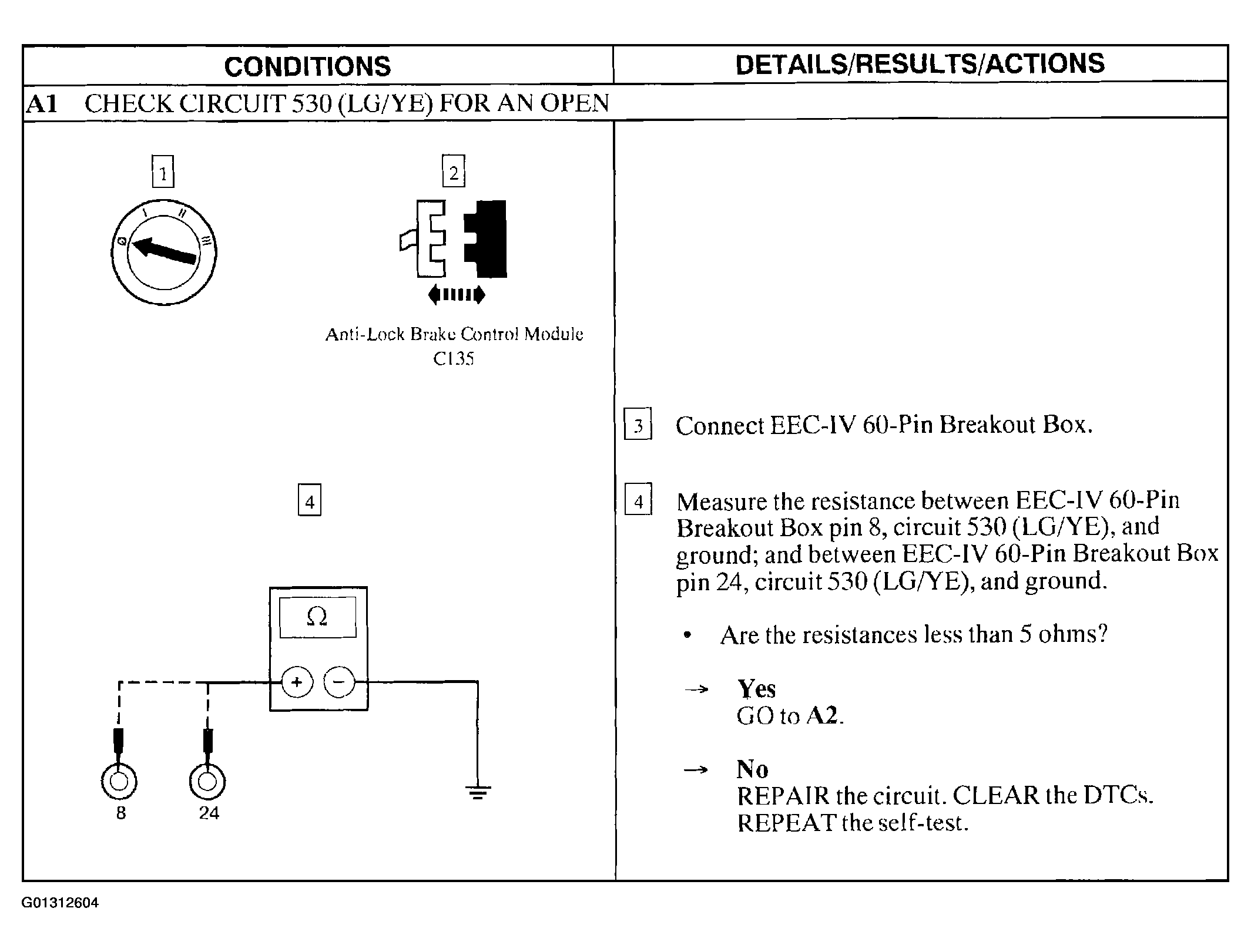

Fig 1: Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module (Step 1)

Courtesy of FORD MOTOR CO.

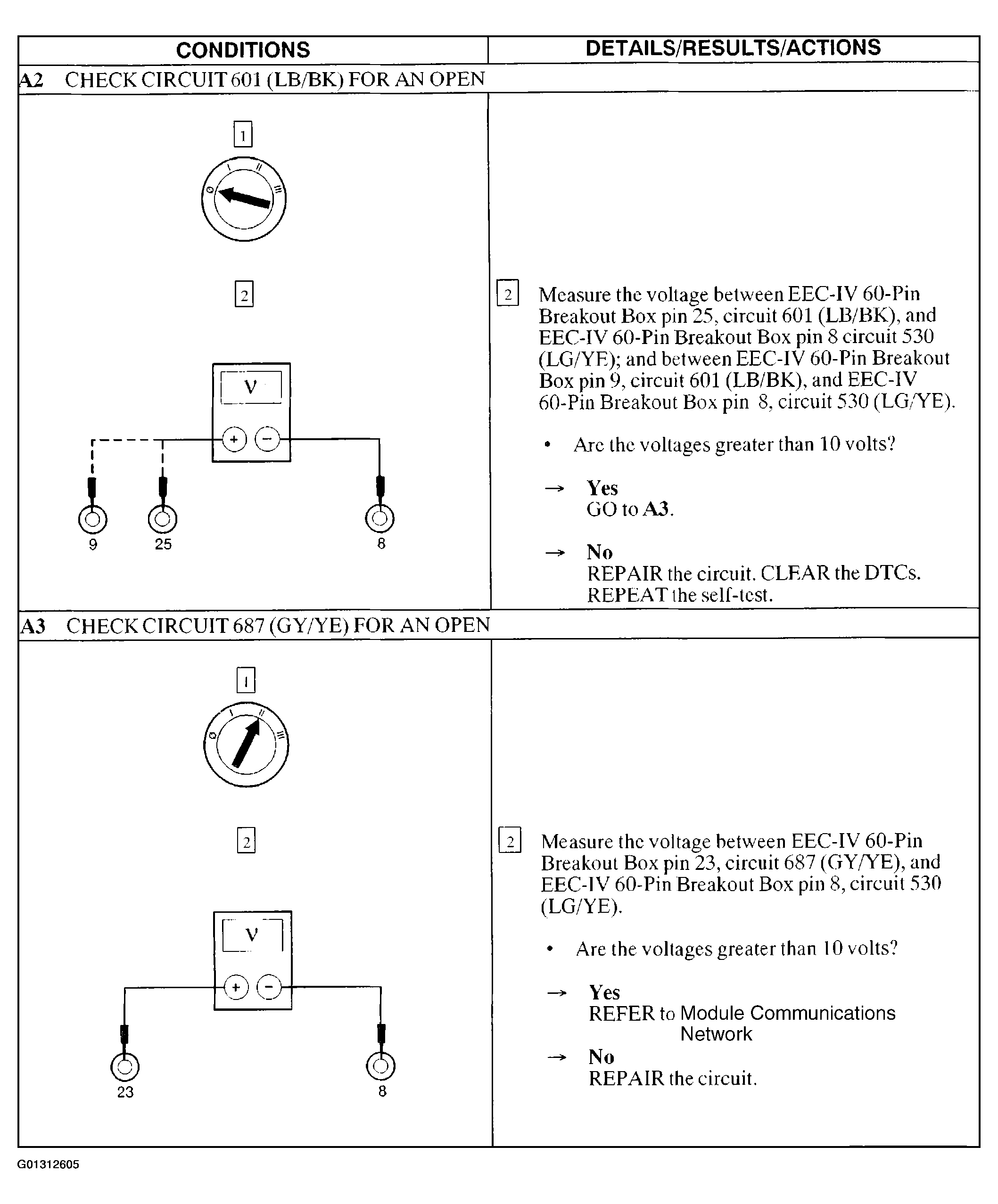

Fig 2: Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module (Steps 2-3)

Courtesy of FORD MOTOR CO.
