Hydraulic Control Unit: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

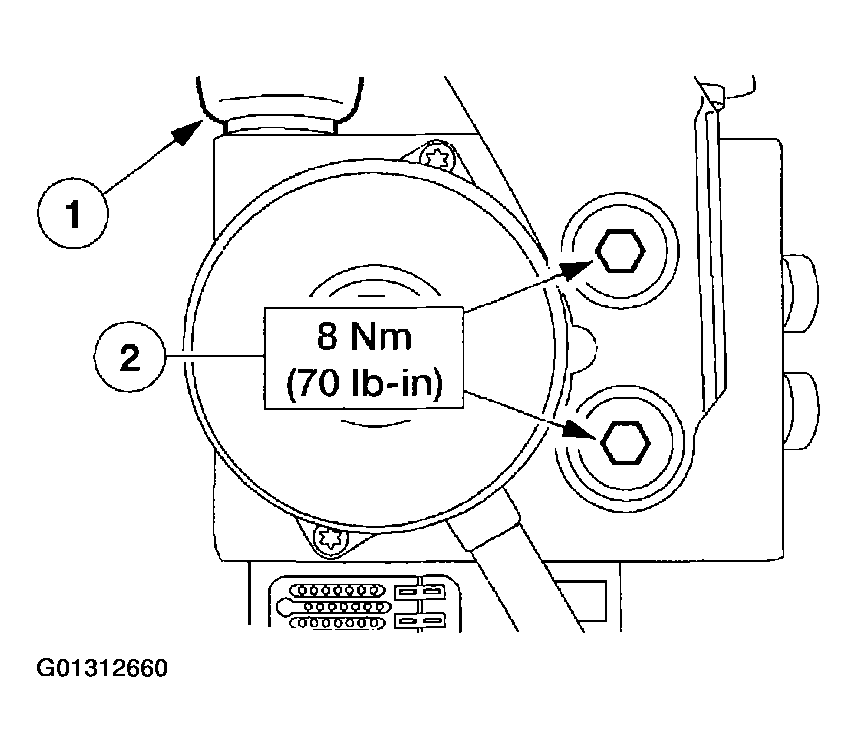

Fig 1: Installing HCU (1 Of 2)

Courtesy of FORD MOTOR CO.

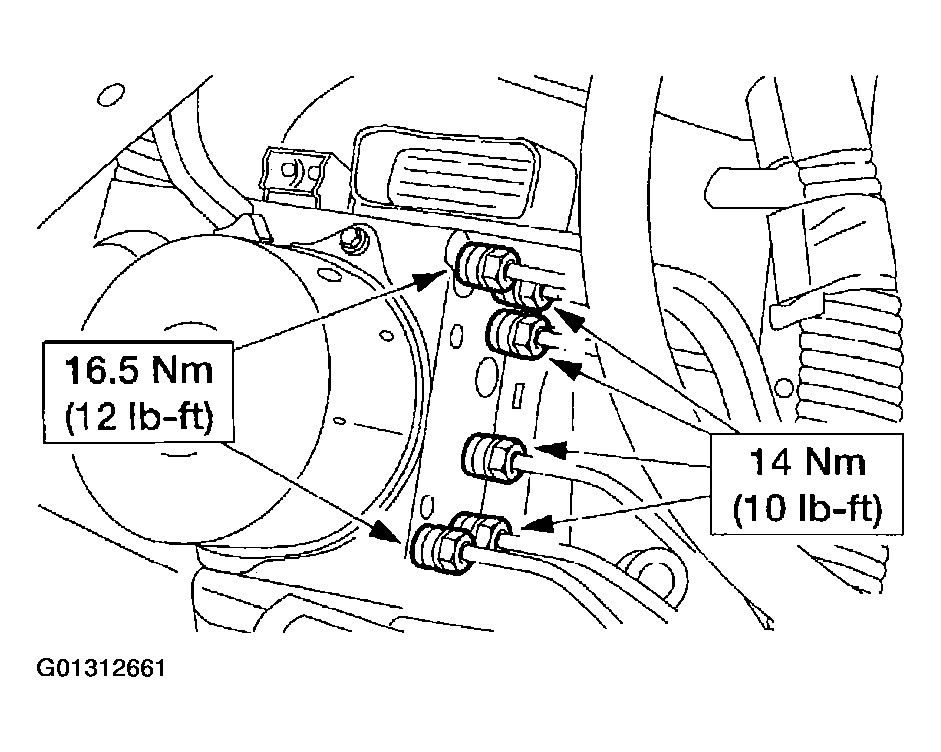

Fig 2: Installing HCU (2 Of 2)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Bleed the brake hydraulic system. For additional information, refer to BLEEDING BRAKE SYSTEM .
