Bezel - Shift Control: Removal

  1. Remove the shift control bezel.

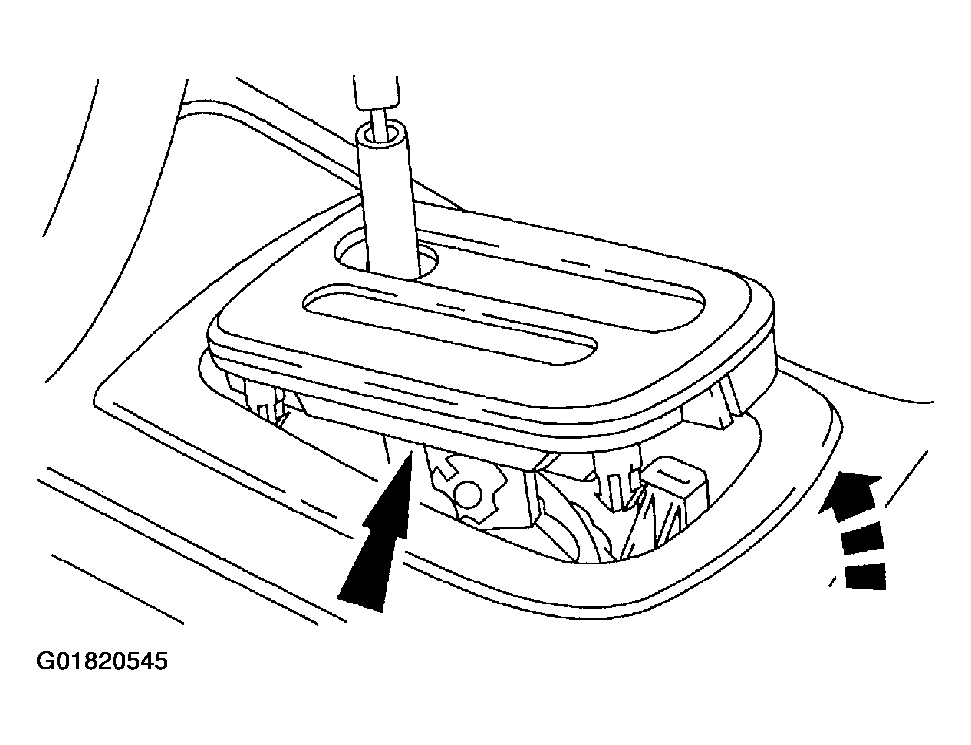

    2. Fig 1: Removing Shift Control Bezel
    G01820545Courtesy of FORD MOTOR CO.
  2. Lift the shift control bezel slightly.
  3. Remove the shift control bezel light bulbs and remove the shift control bezel.

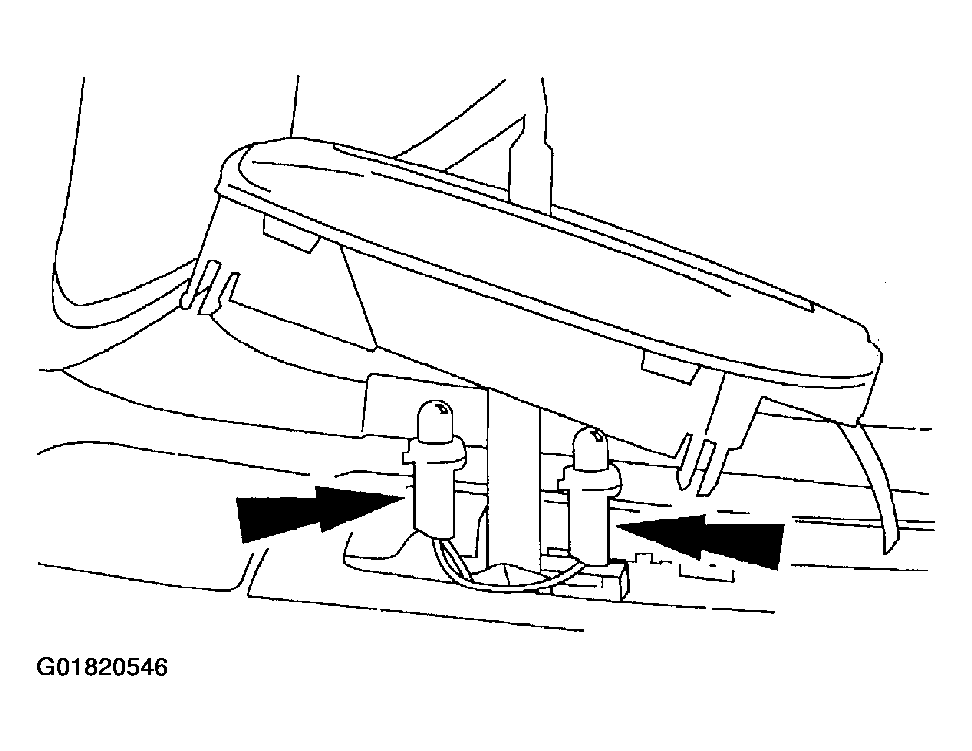

    4. Fig 2: Removing Shift Control Bezel Light Bulbs
    G01820546Courtesy of FORD MOTOR CO.
