Direct Clutch Cylinder: Notes

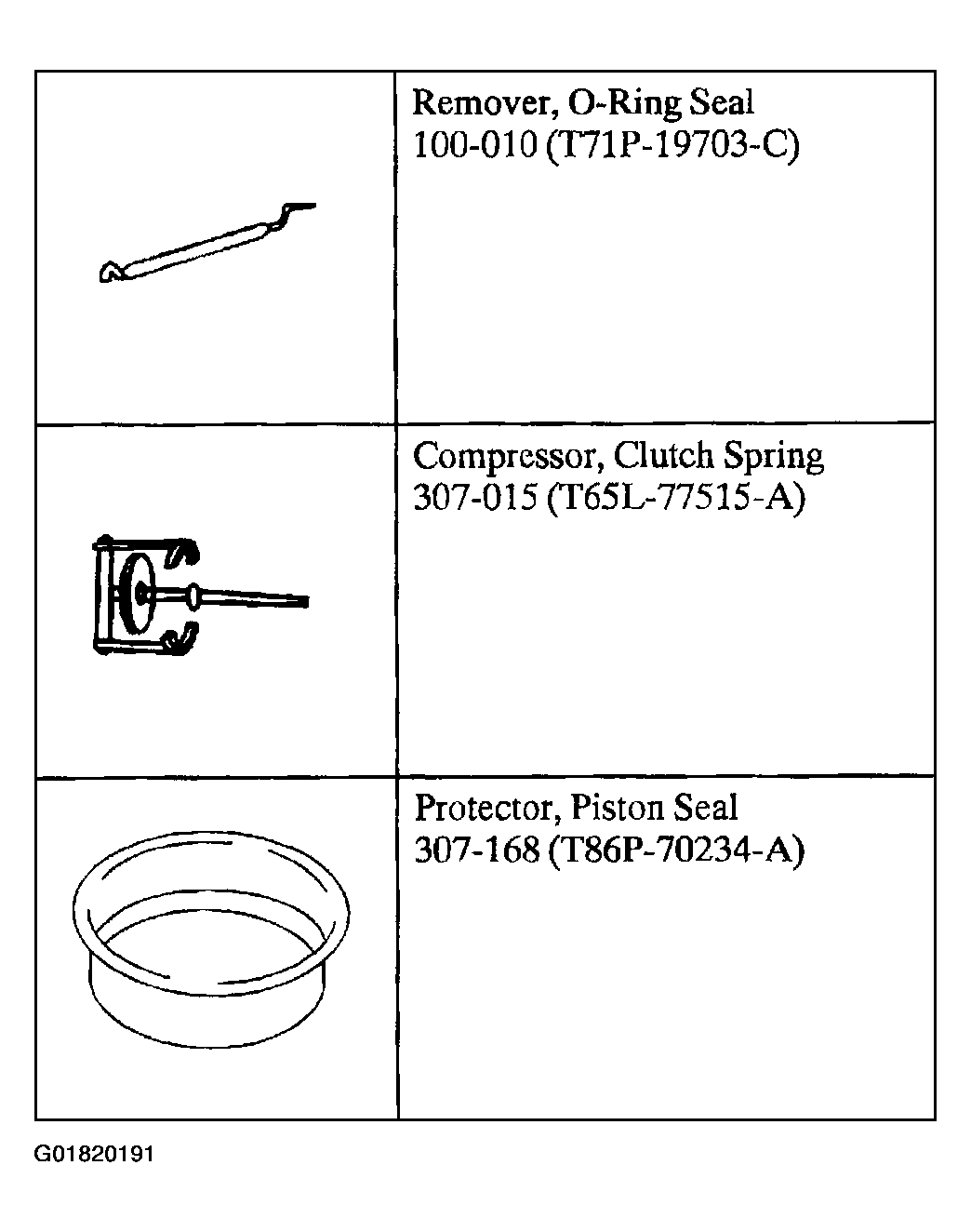

Fig 1: Special Tool(s) (1 Of 2)
G01820191Courtesy of FORD MOTOR CO.

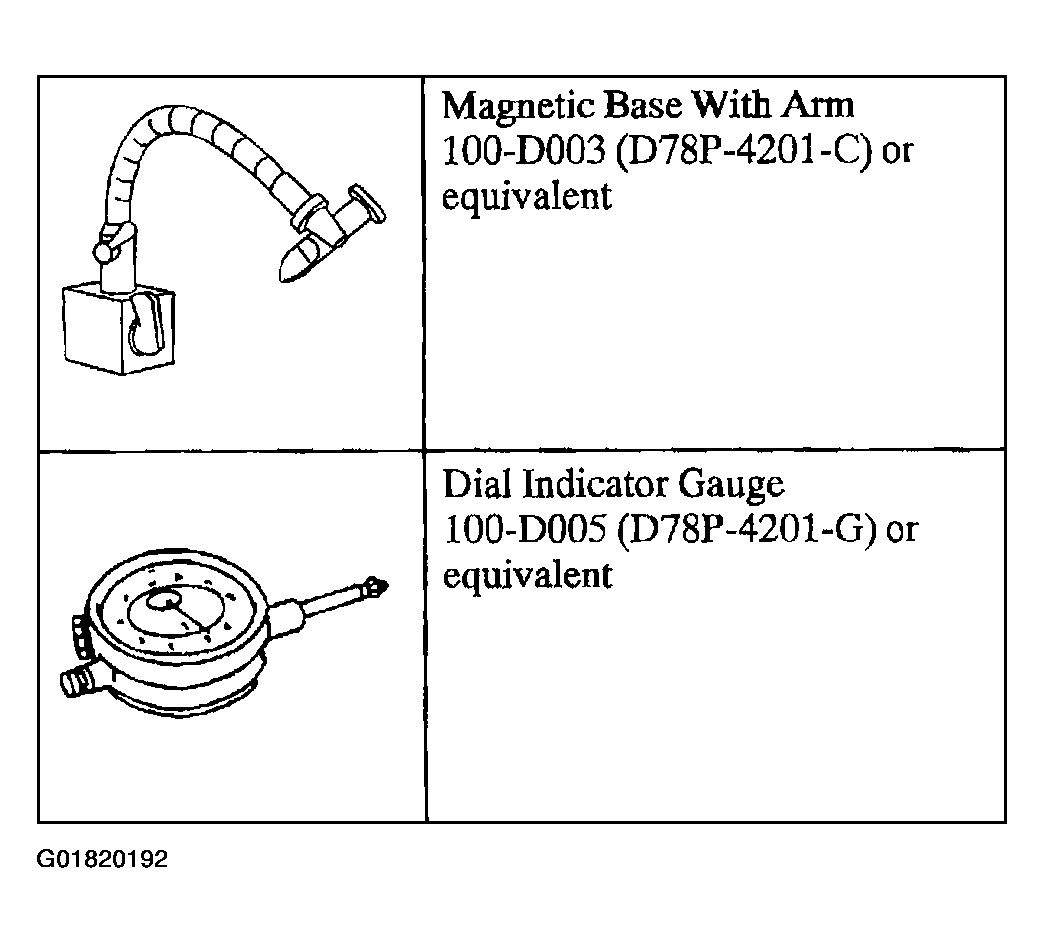

Fig 2: Special Tool(s) (2 Of 2)
G01820192Courtesy of FORD MOTOR CO.

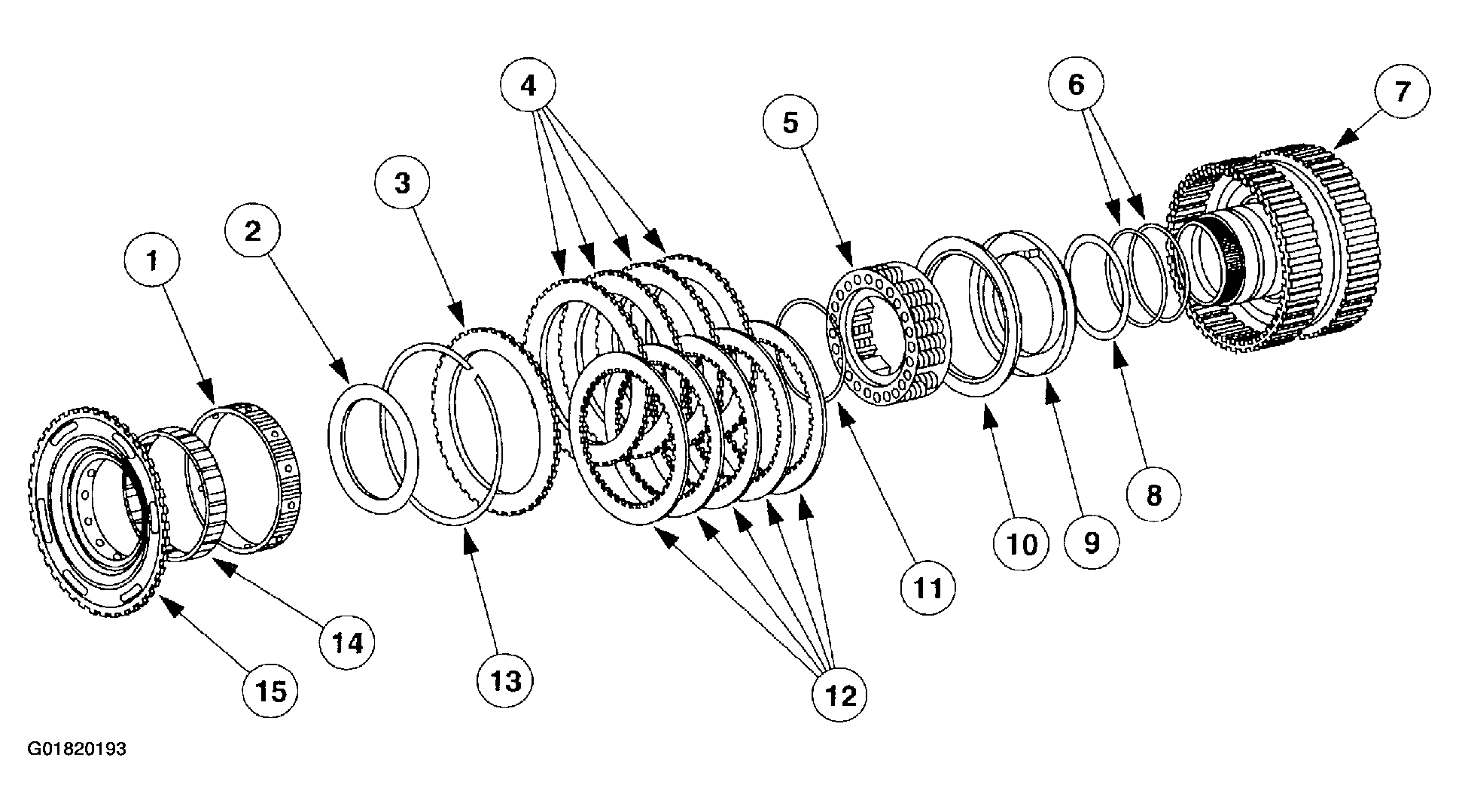

Fig 3: Direct Clutch Cylinder - Component View
G01820193Courtesy of FORD MOTOR CO.

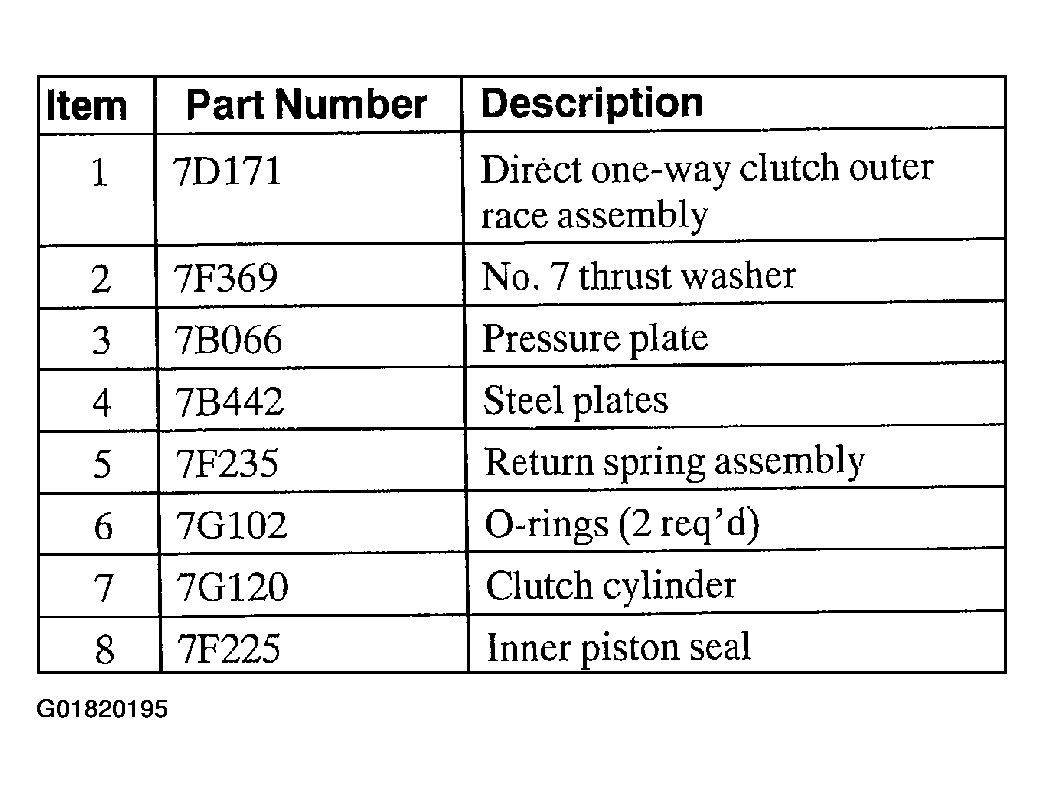

Fig 4: Direct Clutch Cylinder - Component View Legend (Items 1-8)
G01820195Courtesy of FORD MOTOR CO.

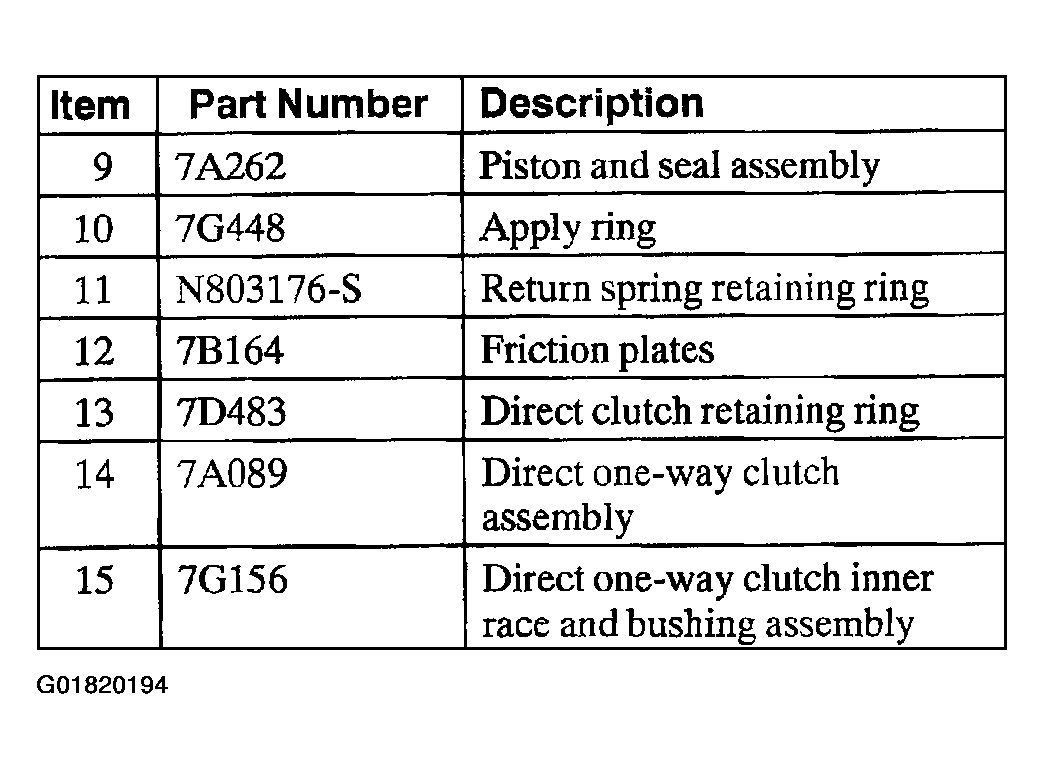

Fig 5: Direct Clutch Cylinder - Component View Legend (Items 9-15)
G01820194Courtesy of FORD MOTOR CO.
