| A/C Compressor Bolts |
18 (24) |
| A/C Compressor Bracket Bolts |
18 (24) |
| A/C Manifold Nuts |
15 (21) |
| Ball Joint-To-Spindle Nuts |
66 (90) |
| Camshaft Sprocket Bolts |
| Step 1 |
15 (20) |
| Step 2 |
|
| Center Crossmember Bolts |
76 (103) |
| Crankshaft Pulley Bolts |
| Step 1 |
59 (80) |
| Step 2 |
|
| Cylinder Block Flanged Plug |
| Step 1 |
15 (20) |
| Step 2 |
|

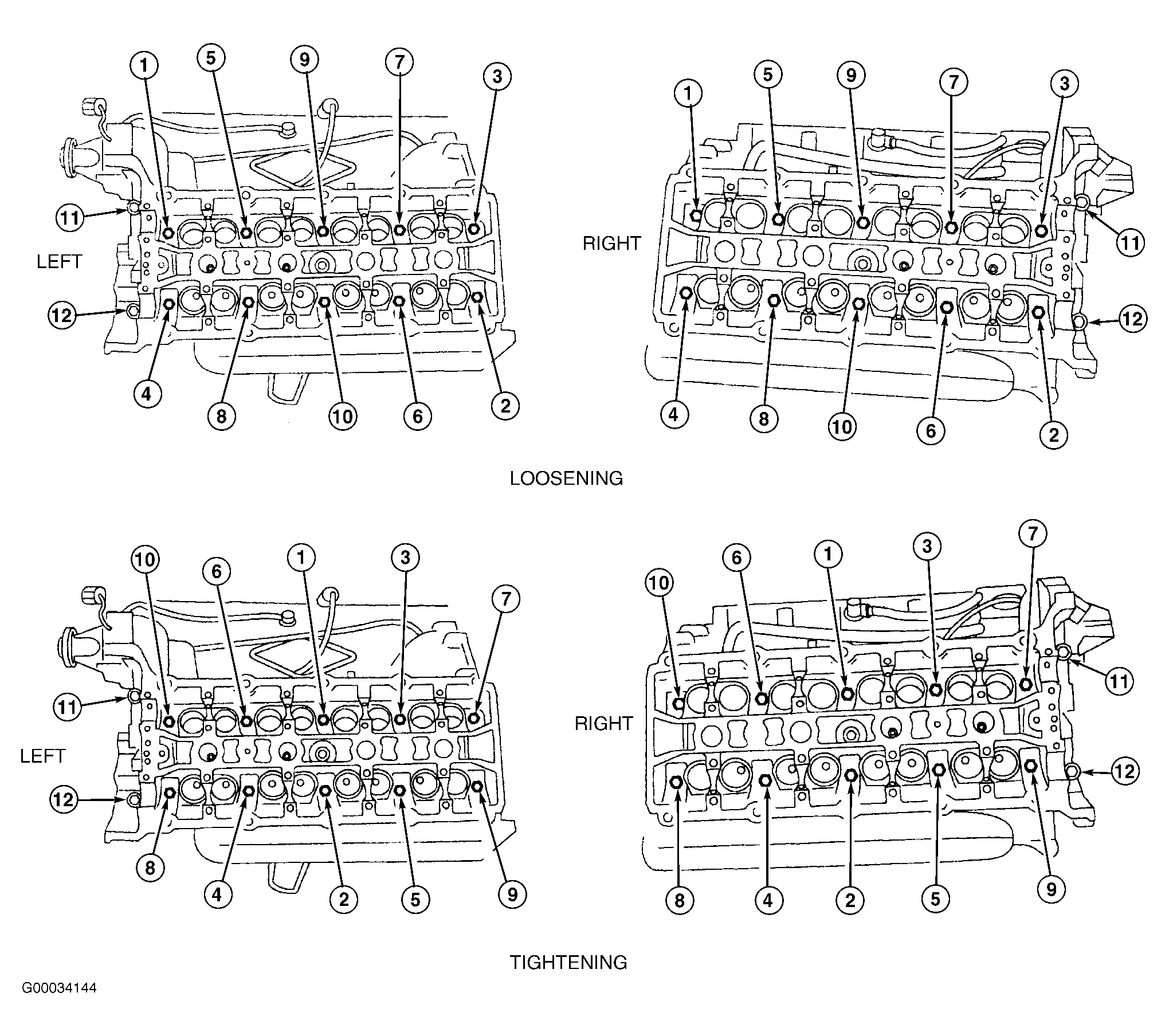

| Cylinder Head Bolts |
| Bolts 1-10 |
| Step 1 |
15 (20) |
| Step 2 |
26 (35) |
| Step 3 |
33 (45) |
| Step 4 |
|
| Step 5 |
|
| Bolts 11-12 |
| Step 1 |
15 (20) |
| Step 2 |
|
| Drive Belt Tensioner Bolts |
37 (50) |
| EGR Valve Bolts |
18 (25) |
| EGR Valve-To-Exhaust Manifold Tube Nuts |
30 (40) |
| Engine Mount Bracket-To-Cylinder Block Bolts |
34 (46) |
| Engine Mount-To-Frame Bolts |
30 (40) |
| Engine-To-Transmission Bolts |
35 (47) |
| Exhaust Manifold Bolts |
18 (25) |
| Exhaust Manifold-To-Catalytic Converter Nuts |
30 (40) |

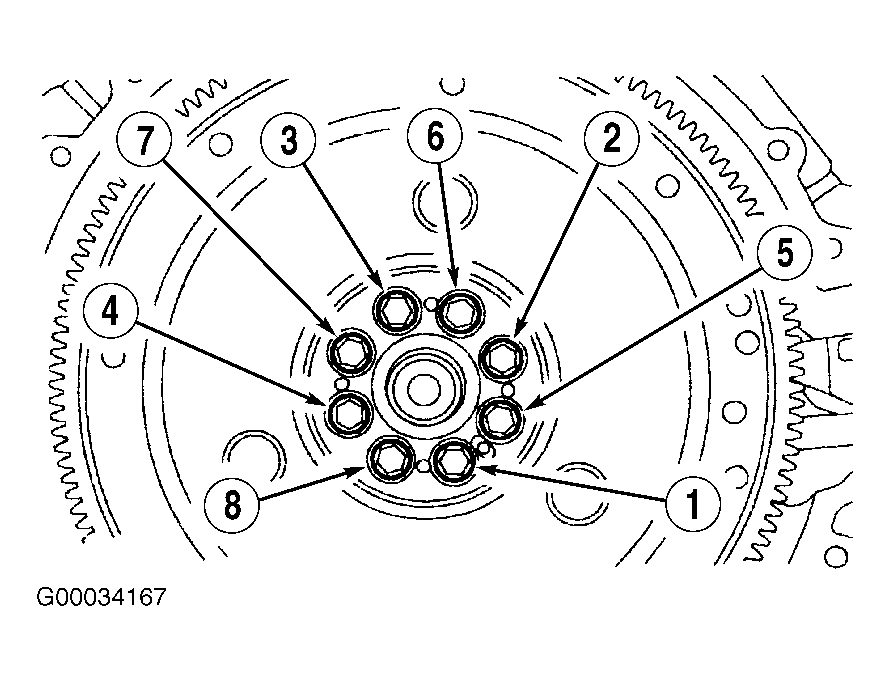

| Flexplate Bolts |
| Step 1 |
11 (15) |
| Step 2 |
81 (110) |
| Flexplate Spacer Nuts |
28 (38) |
| Generator |
| Expanding Bushing & Bolts |
| Step 1 |
15 (20) |
| Step 2 |
|
| Lower & Upper Bolts |
35 (48) |
| Hydraulic Cooling Fan Pump Bracket Bolts |
18 (25) |
| Hydraulic Cooling Fan Pump Line Bolts |
15 (20) |
| Hydraulic Cooling Fan Pump Retaining Bolts |
18 (25) |
| Idler Pulley Bolts |
18 (25) |

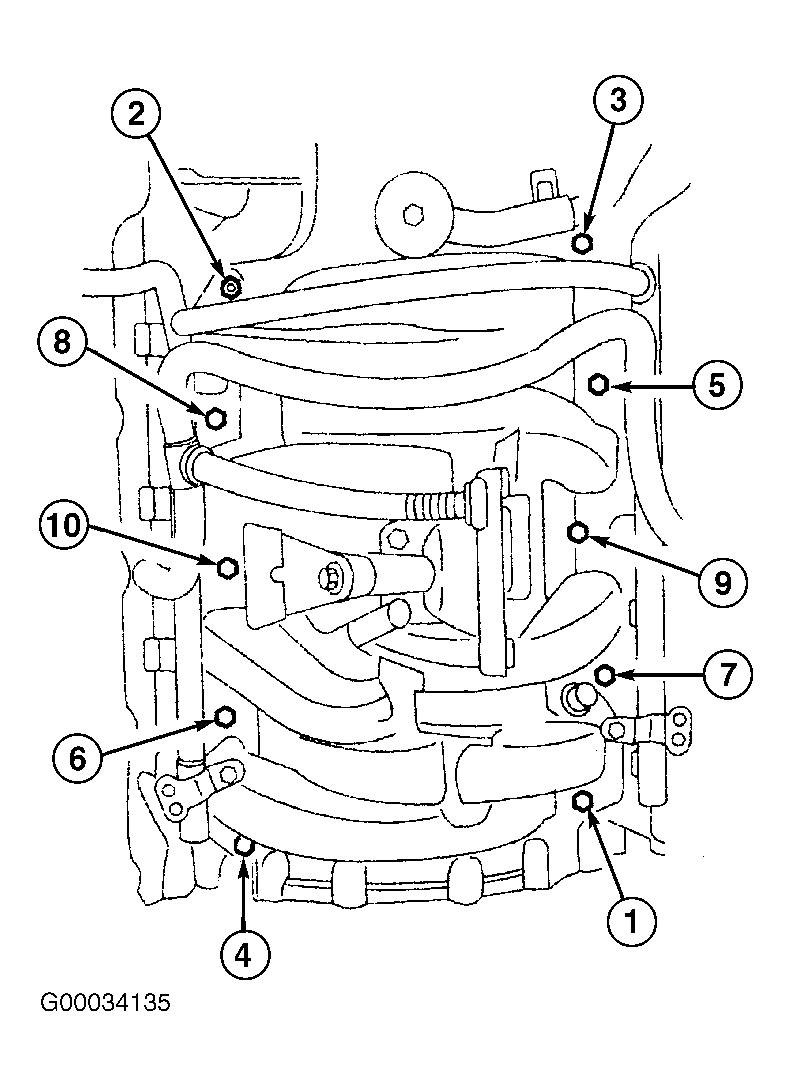

| Intake Manifold Bolts |
18 (25) |
| Knock Sensor Bolts |
15 (20) |
| M30 Cylinder Block Plugs |
37 (50) |
| Oil Cooler Assembly Bolts |
18 (25) |
| Oil Cooler Bolts |
43 (58) |
| Oil Filter Adapter Bolts |
18 (25) |
| Oil Pan Drain Plug |
17 (23) |

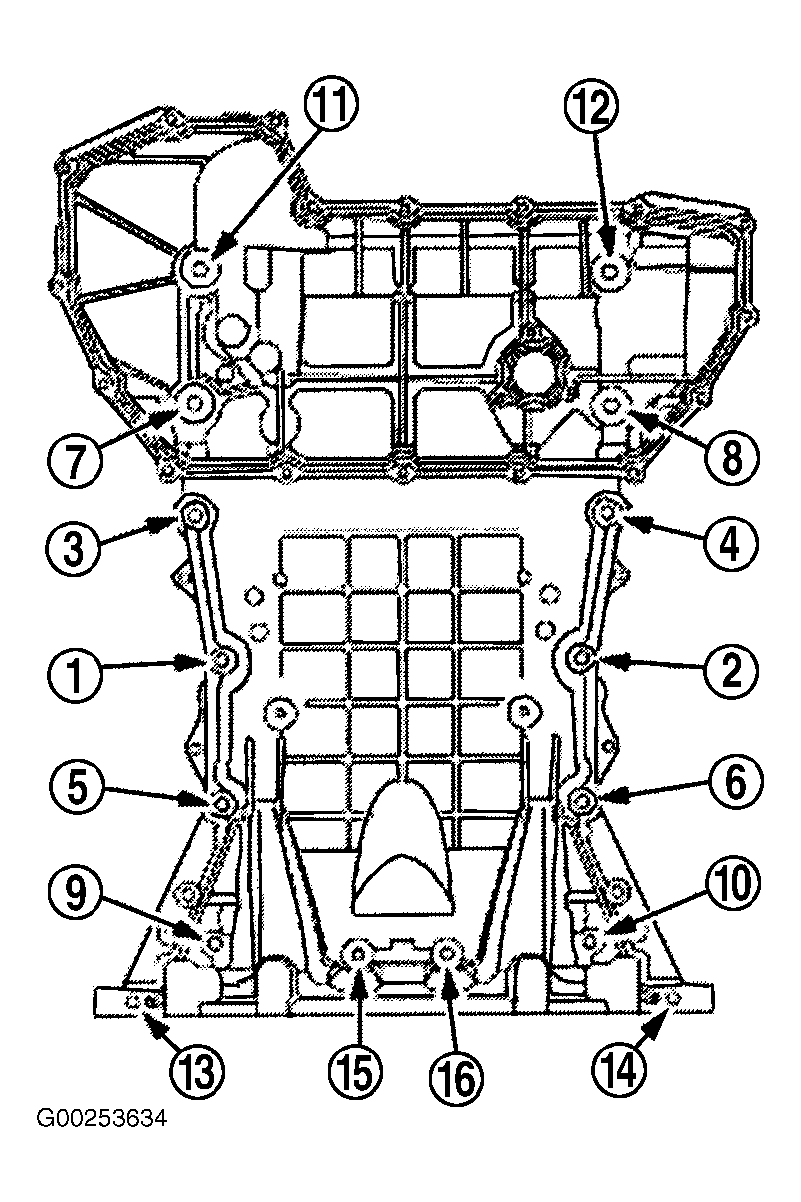

| Oil Sump Bolts |
| Step 1 |
11 (15) |
| Step 2 |
18 (25) |
| Power Steering Pulley Bolts |
41-50 (56-68) |
| Power Steering Pressure Hose Nuts |
15 (20) |
| Power Steering Pump Bolts |
18 (25) |
| Power Steering Pump Bracket Bolts |
18 (25) |
| Stabilizer Bar Link Nuts |
41 (55) |
| Starter Motor Ground Cable Nuts |
18 (25) |
| Starter Motor Nuts |
18 (25) |
| Steering Coupling Bolts |
26 (35) |
| Strut Mount Bolts (Lower) |
129 (175) |
| Sub-Frame-To-Body Bolts |
76 (103) |
| Sway Bar Lower Nuts |
41 (55) |
| Three-Way Catalytic Converter Bolts |
30 (40) |
| Torque Converter Nuts |
28 (38) |
| Transmission Cooler Tube Nuts |
26 (35) |
| Transmission Crossmember Bolts |
30 (40) |
| Transmission-To-Engine Bolts |
35 (47) |
| Water Jacket Plug |
18 (25) |
| Wheel Hub Nuts |
170-202 (230-275) |
| INCH Lbs. (N.m) |
| A/C High Pressure Hose |
71 (8) |

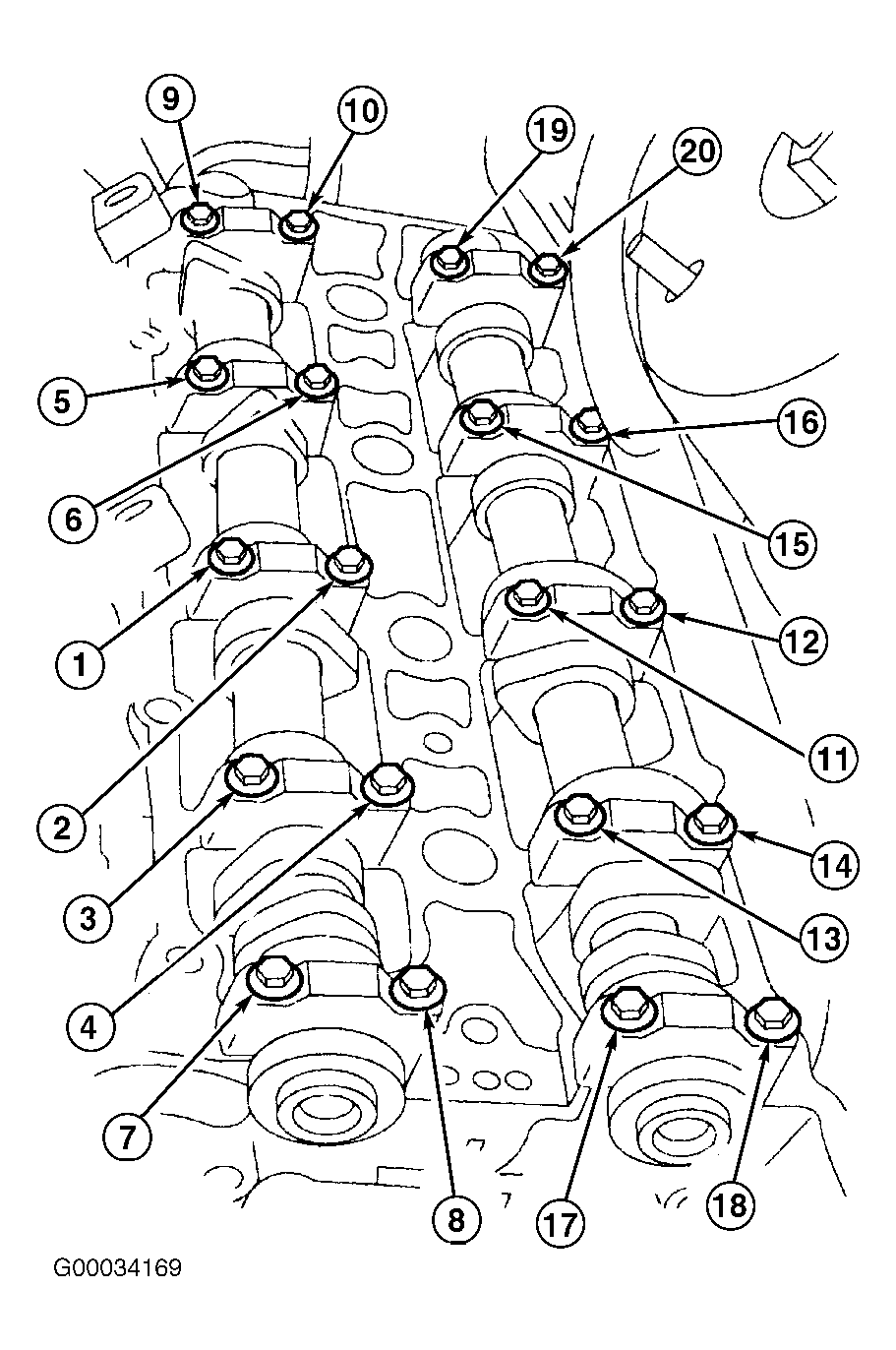

| Camshaft Bearing Cap Bolts |
| Step 1 |
Hand Tighten |
| Step 2 |
53 (6) |
| Step 3 |
|
| Camshaft Position Sensor Bolts |
97 (11) |
| Coil Cover Bolts |
44 (5) |
| Cooling Fan Hose Bracket Bolts |
89 (10) |
| Cowl Panel Support Bracket Bolts |
80 (9) |
| Crankshaft Position Sensor Bolt |
89 (10) |
| Cylinder Head Temperature Sensor |
97 (11) |
| Delta PFE Sensor Bolts |
53 (6) |
| Engine Compartment Brace Bolts |
9 (80) |
| EGR Heat Shield Bolts |
89 (10) |
| EGR Tube Bracket Bolts |
97 (11) |
| EGR Valve Adapter Bolts |
89 (10) |

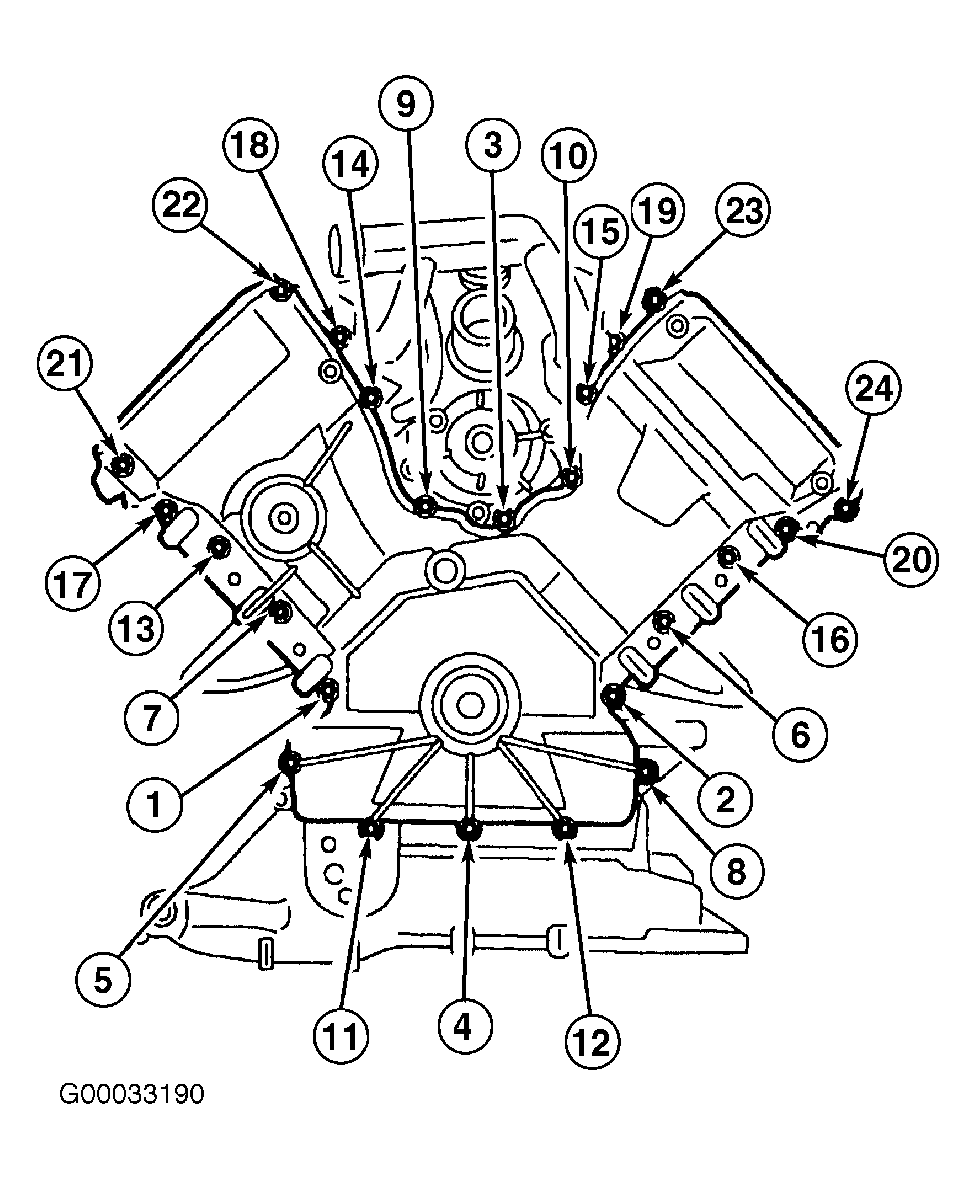

| Engine Front Cover Bolt |
| Step 1 |
44 (5) |
| Step 2 |
89 (10) |
| Evaporative Emission Purge Valve Bracket Nuts |
89 (10) |
| EVR Solenoid Bolts |
53 (6) |
| Fresh Air Box Nuts |
89 (10) |
| Fresh Air Duct Nuts |
89 (10) |
| Fuel Line Bracket Bolts |
97 (11) |
| Ground Strap Bolts |
89 (10) |
| Heated Oxygen Sensor Bracket Bolts |
53 (6) |
| Heater Hose Bracket Bolts |
89 (10) |
| Hydraulic Cooling Fan Reservoir Lower Bolts |
106 (12) |
| Hydraulic Cooling Fan Reservoir Upper Bolts |
53 (6) |
| Ignition Coil Bolts |
44 (5) |
| Inlet Tube Support Bracket Bolts |
97 (11) |
| Oil Filter Bolts |
| Step 1 |
115 (13) |
| Step 2 |
|
| Oil Level Indicator Tube Nuts |
53 (6) |
| Oil Pan Bolts |
| Step 1 |
44 (5) |
| Step 2 |
9 (12) |
| Oil Pump Bolts |
| Step 1 |
53 (6) |
| Step 2 |
|
| Oil Pump Screen Cover & Tube Bolts |
106 (12) |
| Power Steering Hose Bracket Bolts |
89 (10) |
| Power Steering Pump Reservoir Bolts (Lower) |
106 (12) |
| Power Steering Pump Reservoir Bolts (Upper) |
53 (6) |
| Radiator Hose Bolts (Lower) |
89 (10) |
| Radiator Support Bracket Bolts |
89 (10) |
| Radio Interference Capacitor Nuts |
53 (6) |
| Shift Cable Bracket Bolts |
89 (10) |
| Starter Bracket Nuts |
89 (10) |
| Starter Motor Wiring Harness Nuts |
53 (6) |
| Thermostat Housing Bolt |
80 (9) |
| Timing Chain Guide Bolts |
97 (11) |
| Timing Chain Tensioner Arm Bolts |
97 (11) |
| Throttle Body Bolts |
80 (9) |
| Timing Chain Guide Bolts |
97 (11) |
| Timing Chain Tensioner Arm Bolts |
97 (11) |
| Timing Chain Tensioner Bolts |
97 (11) |
| Transmission Wiring Harness Nuts |
89 (10) |

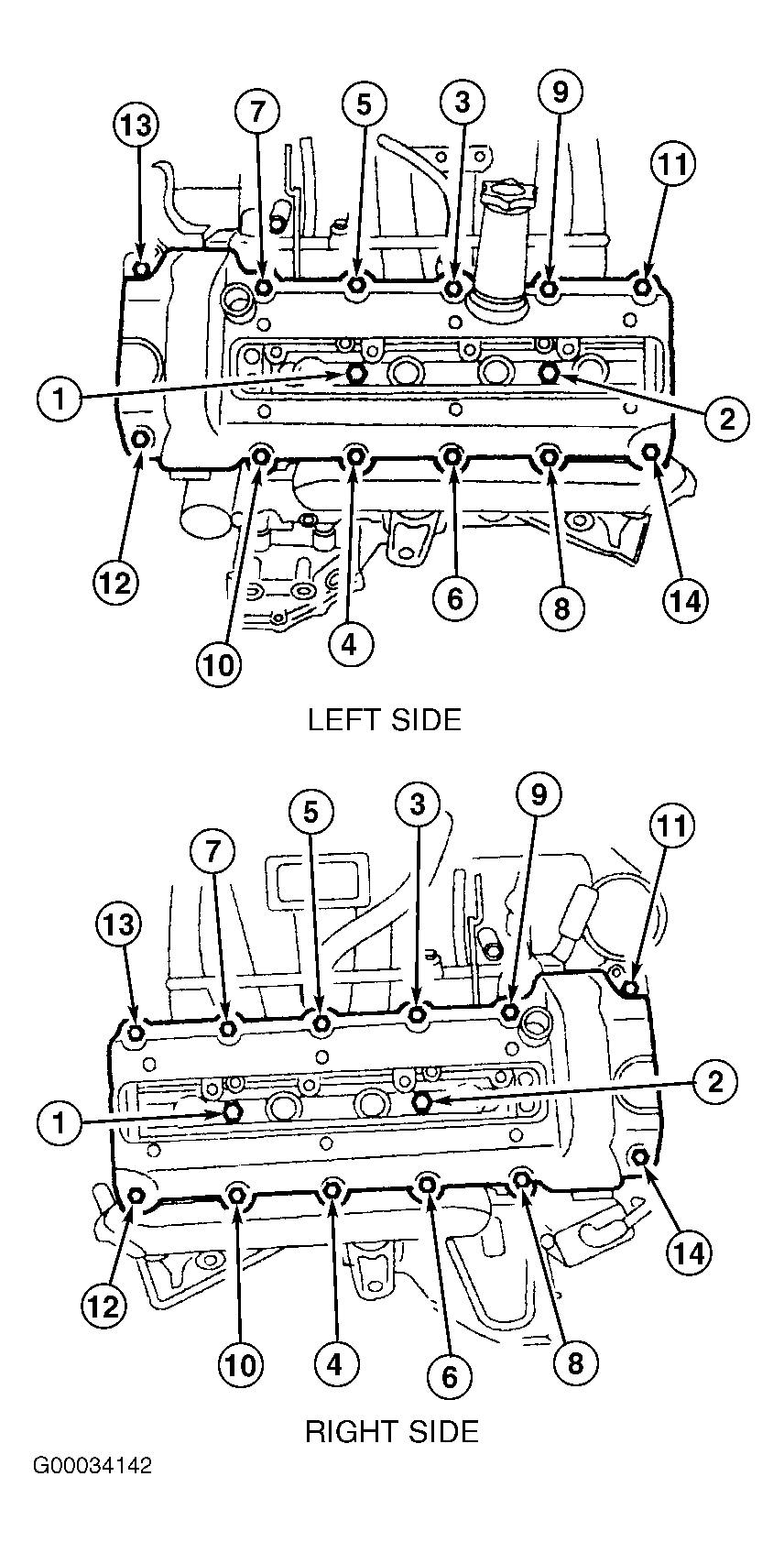

| Valve Cover Bolts |
89 (10) |
| Water Crossover Bolts |
97 (11) |
| Water Pump Bolts |
| Step 1 |
71 (8) |
| Step 2 |
|
| Water Pump Pulley Bolts |
| Step 1 |
89 (10) |
| Step 2 |
|
| Wiring Harness Bracket Bolts |
44 (5) |
| Wiring Harness Nuts |
97 (11) |
