Direct Clutch Drum Assembly: Notes

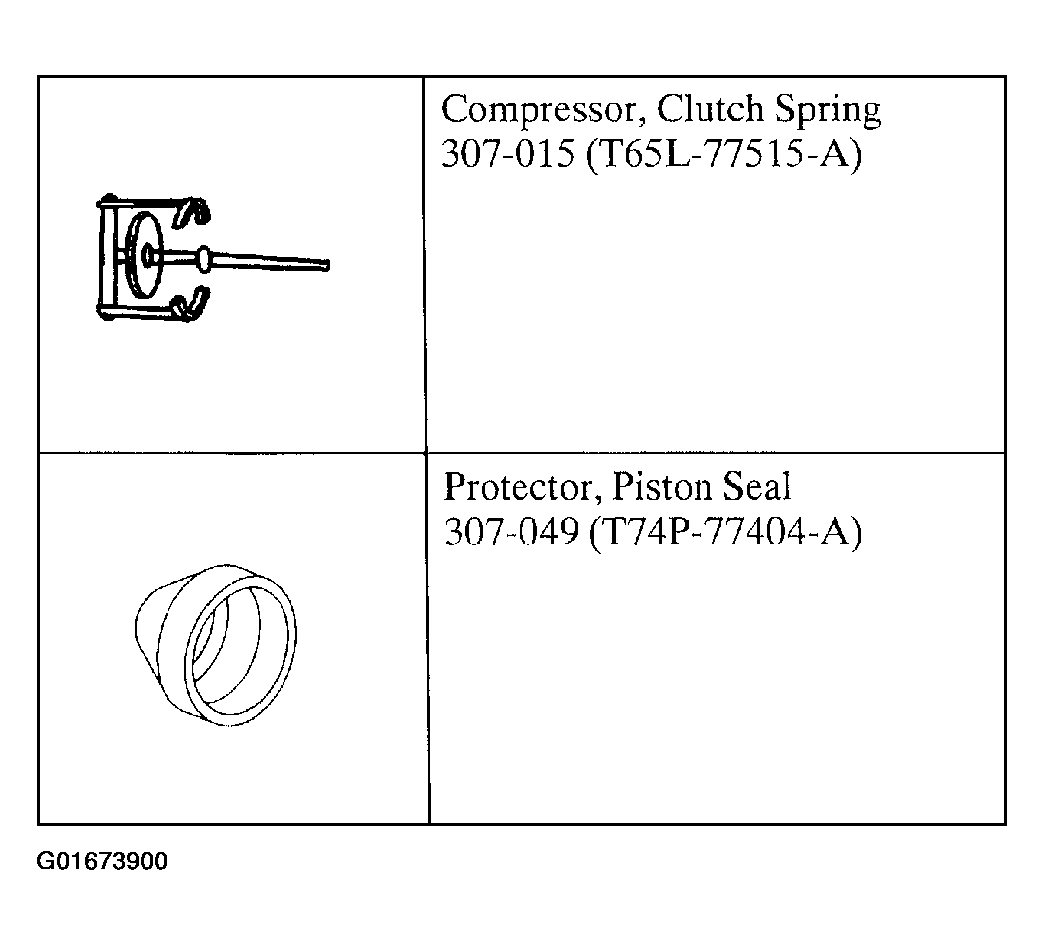

Fig 1: Identifying Special Tools
G01673900Courtesy of FORD MOTOR CO.
Fig 2: Identifying Transmission Fluid
G01673901Courtesy of FORD MOTOR CO.

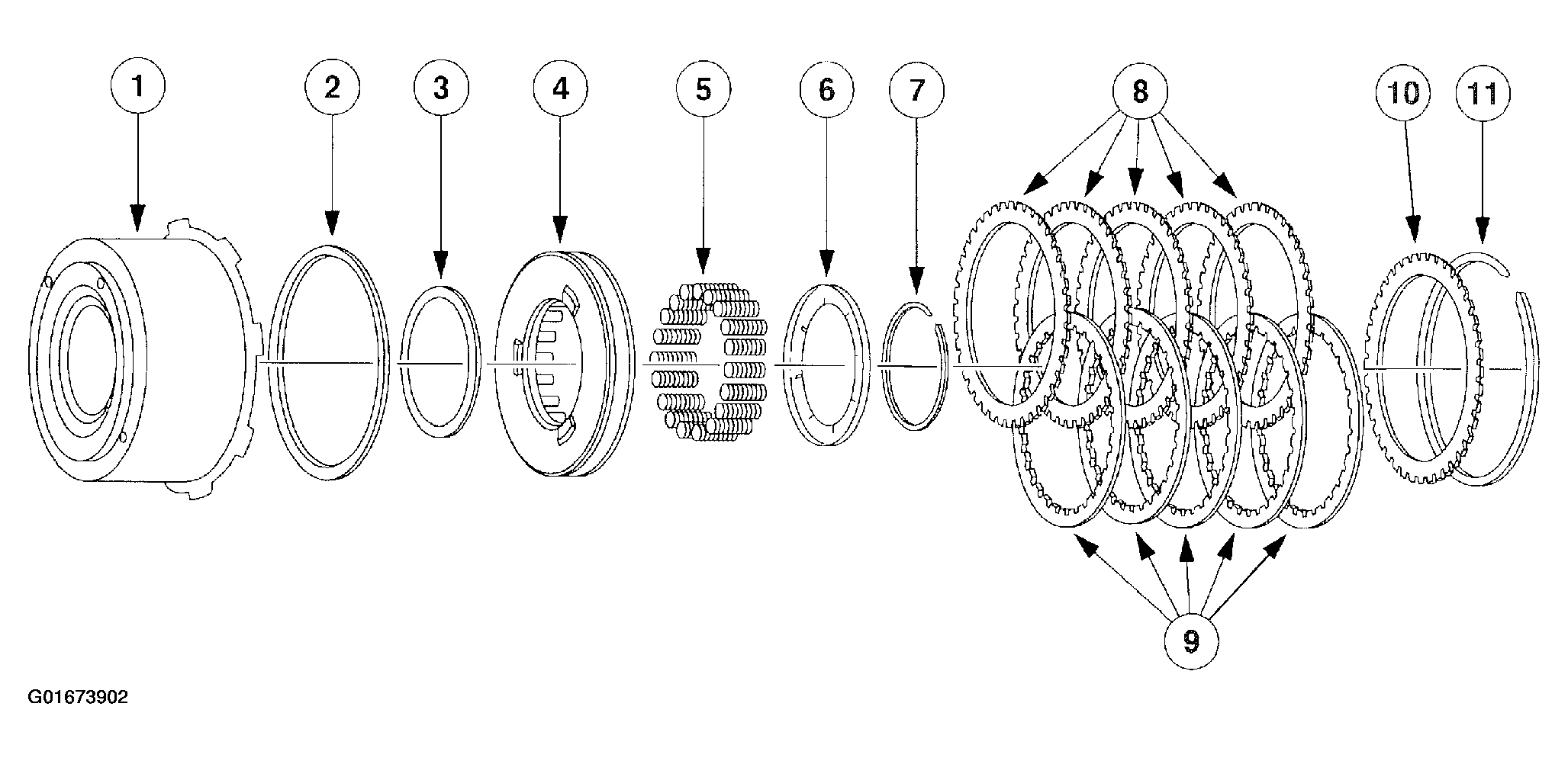

Fig 3: Direct Clutch Drum Assembly
G01673902Courtesy of FORD MOTOR CO.

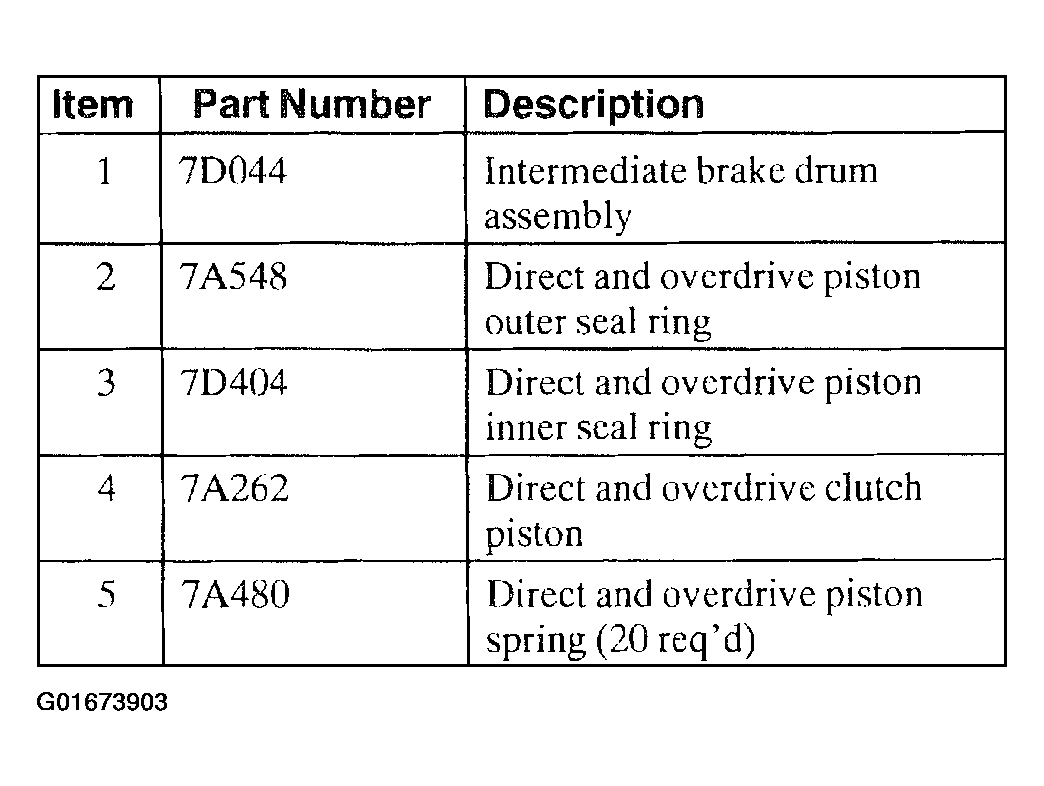

Fig 4: Part Number & Description Table (Items 1-5)
G01673903Courtesy of FORD MOTOR CO.

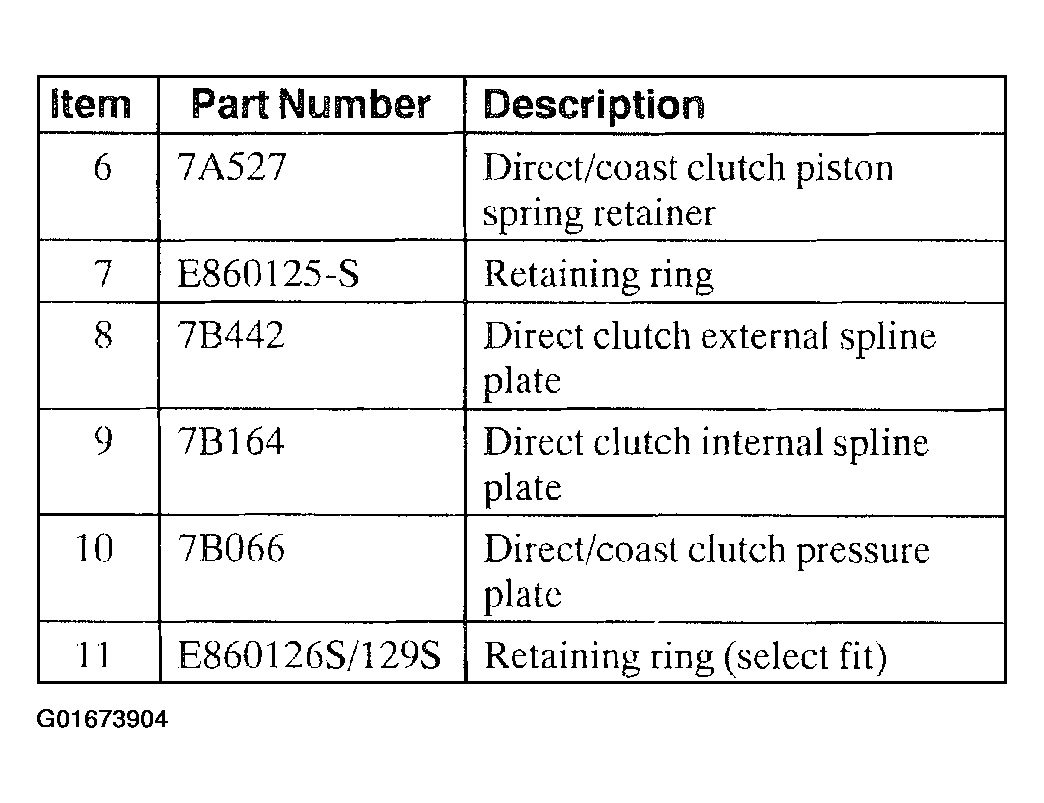

Fig 5: Part Number & Description Table (Items 6-11)
G01673904Courtesy of FORD MOTOR CO.
