General Module

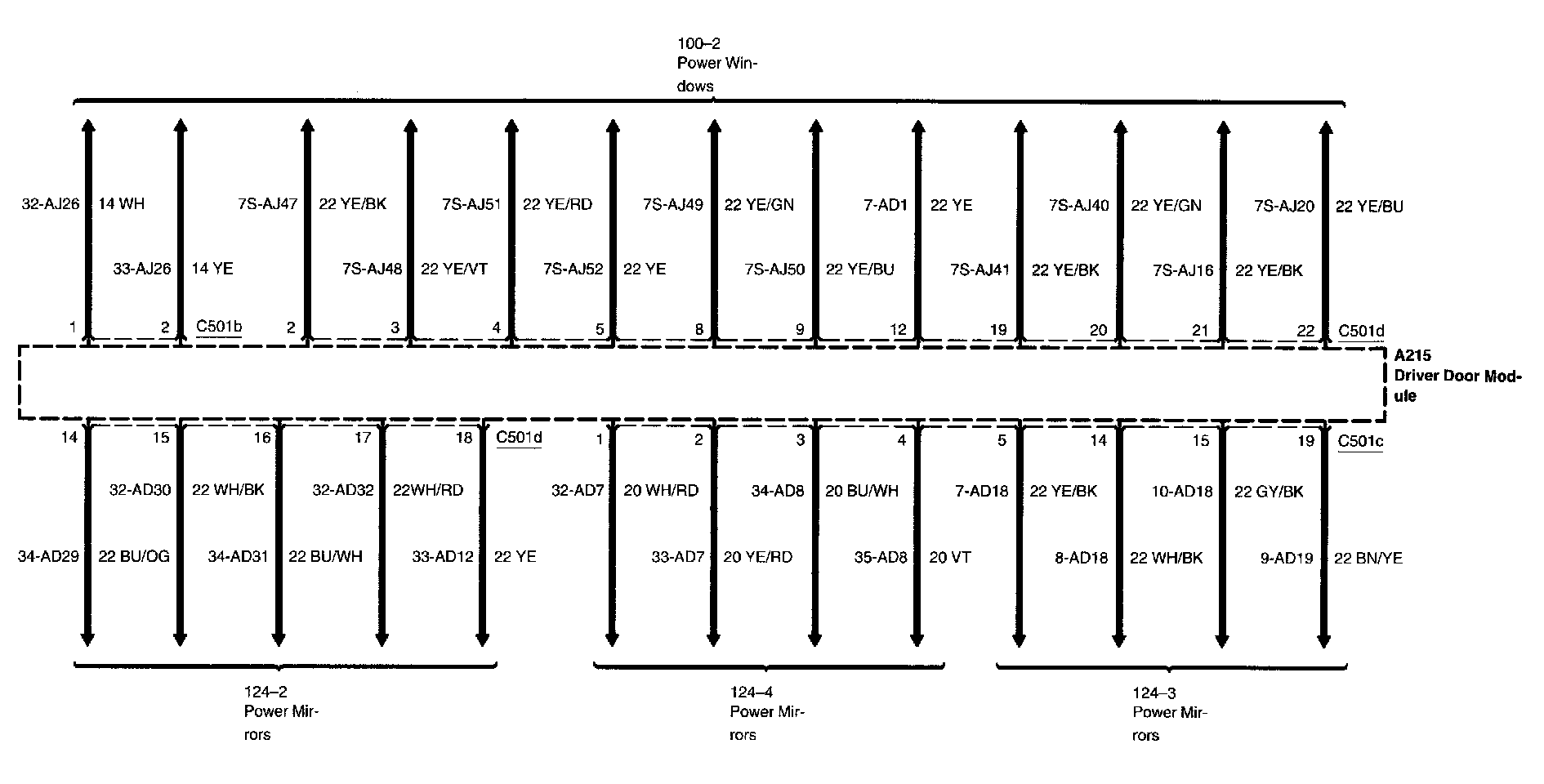

Diagram 59-1:

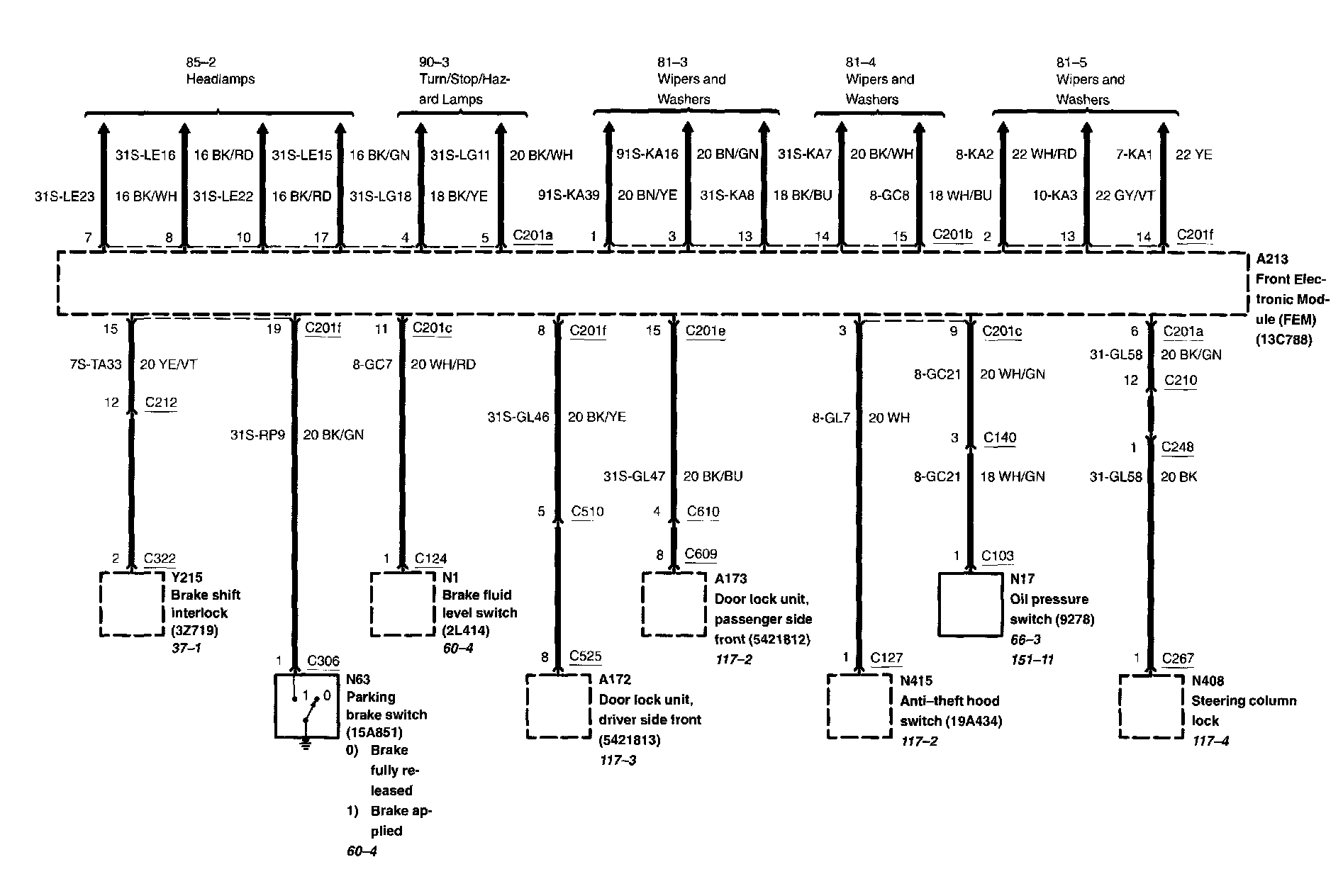

Diagram 59-2:

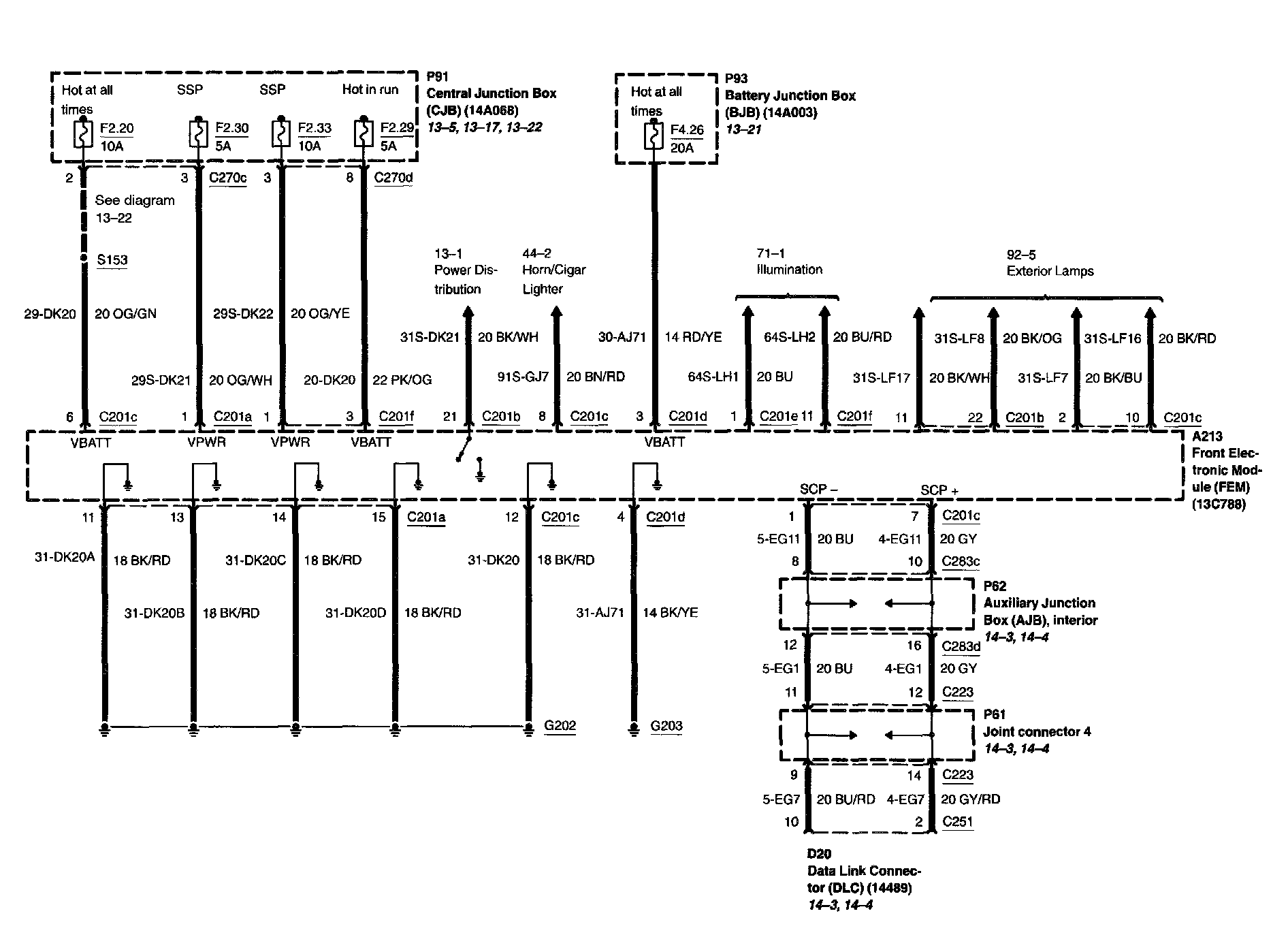

Diagram 59-3:

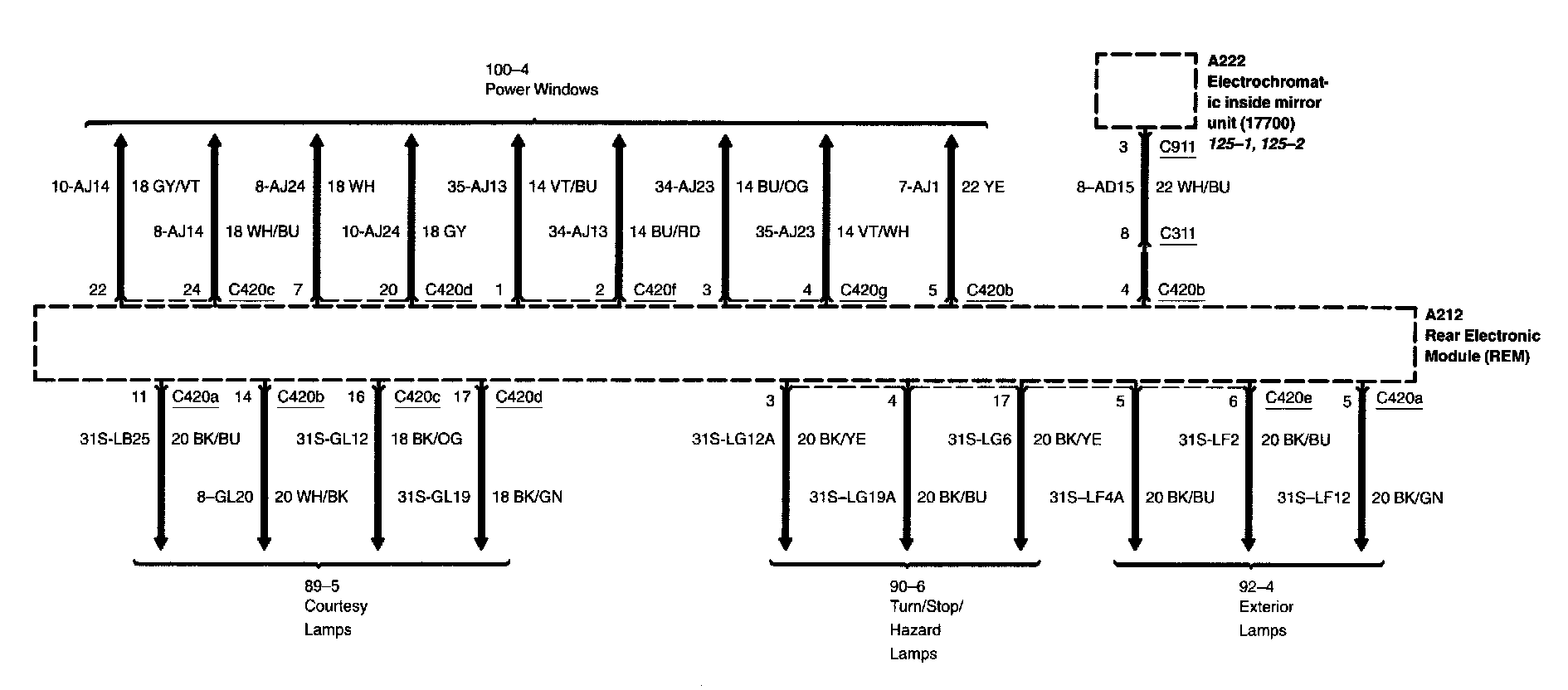

Diagram 59-4:

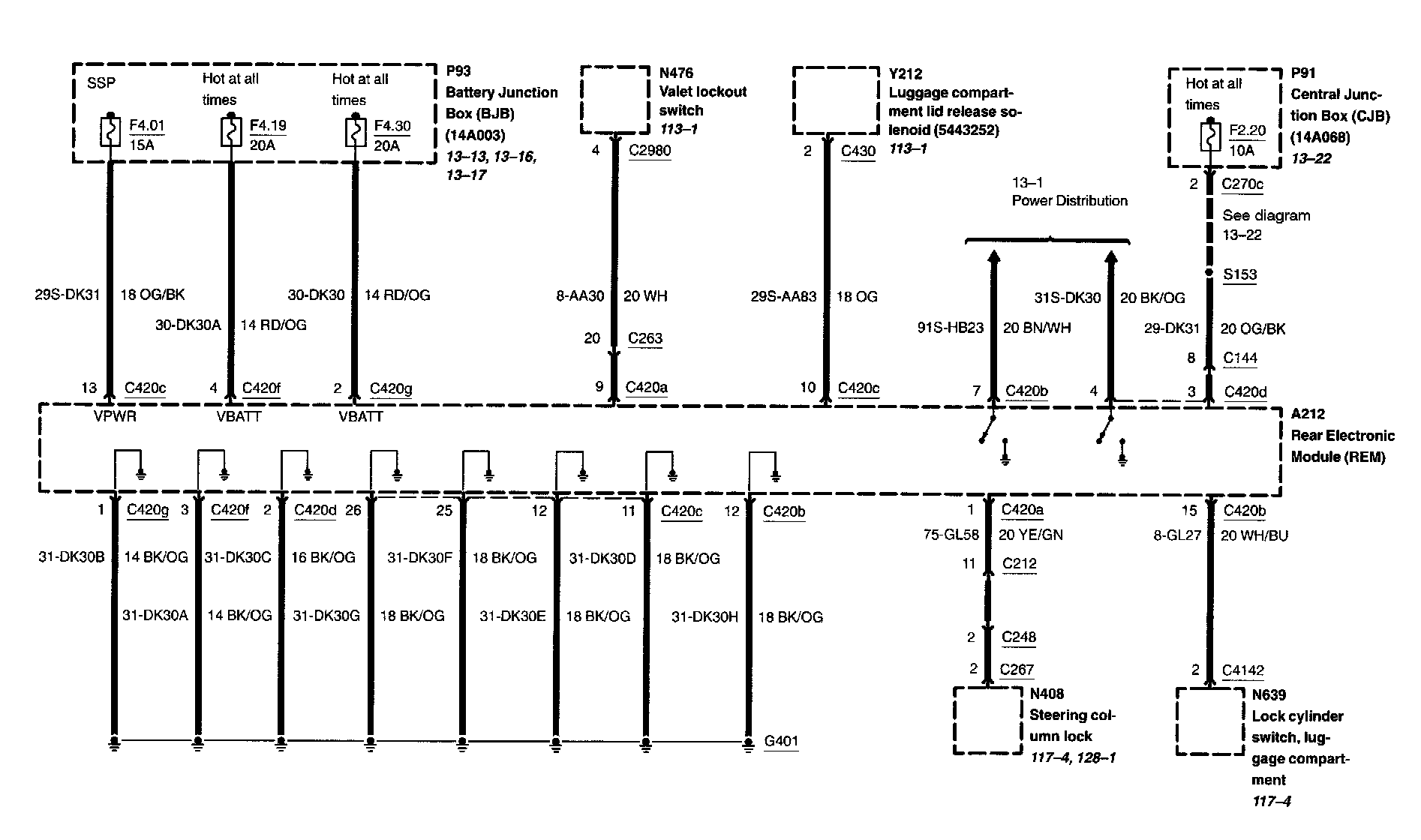

Diagram 59-5:

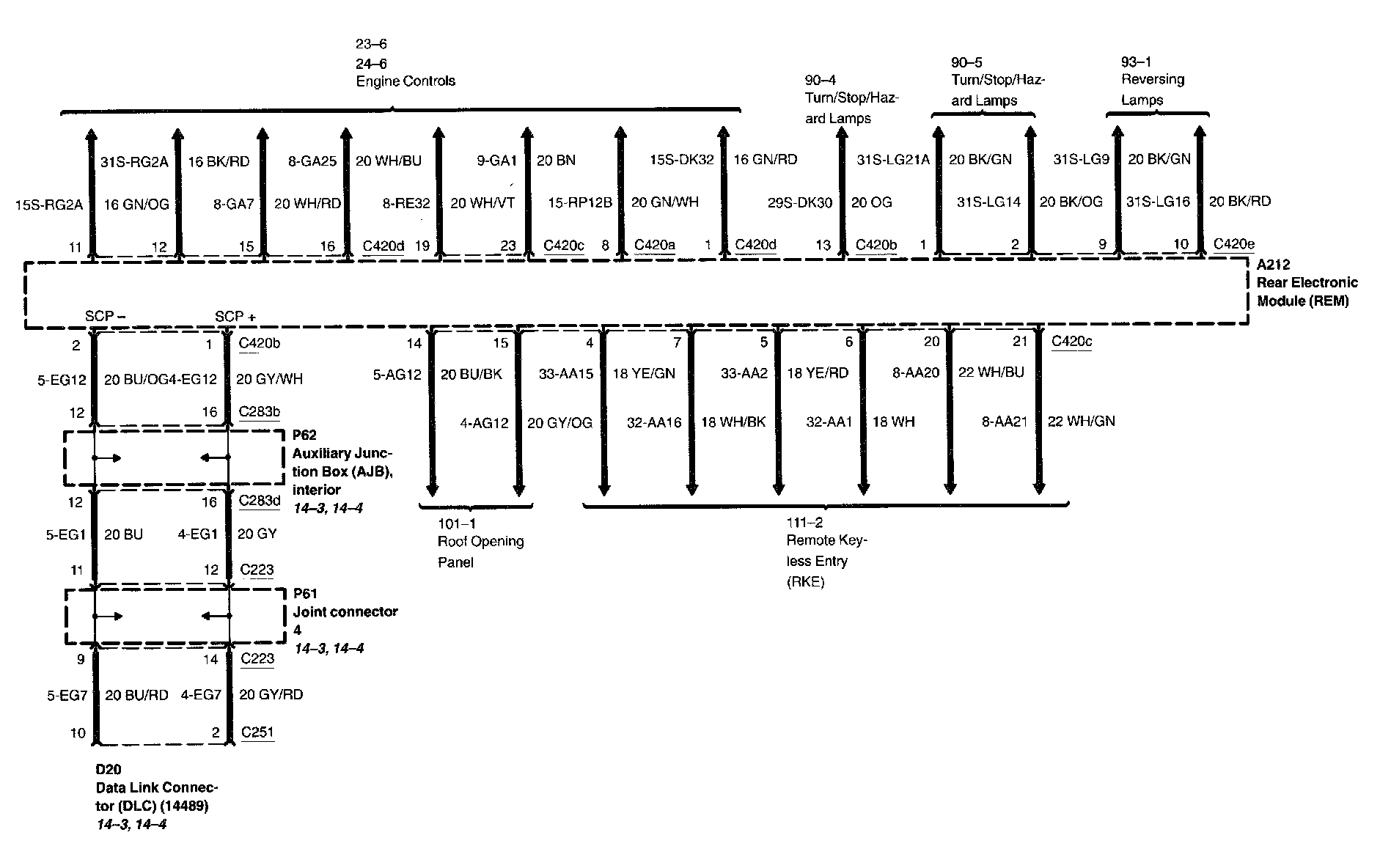

Diagram 59-6:

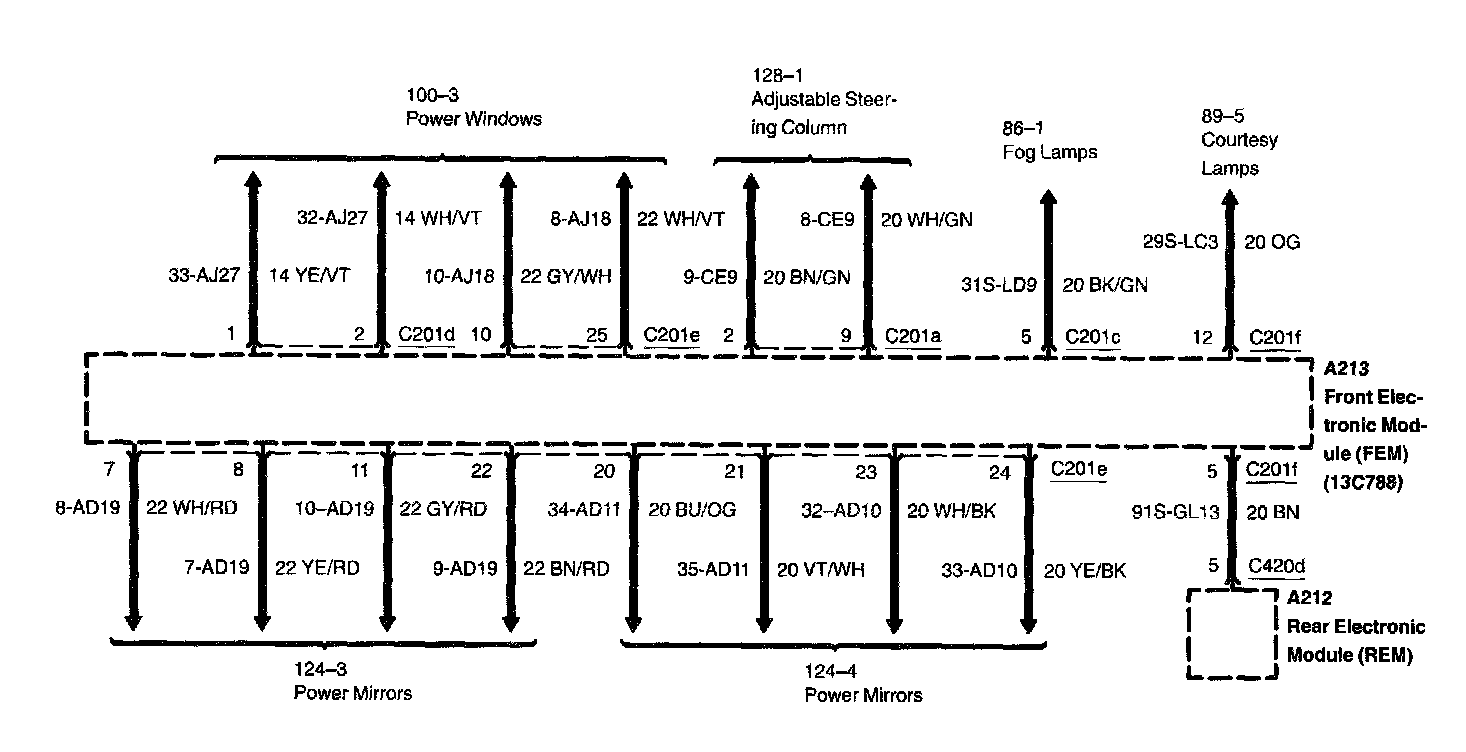

Diagram 59-7:

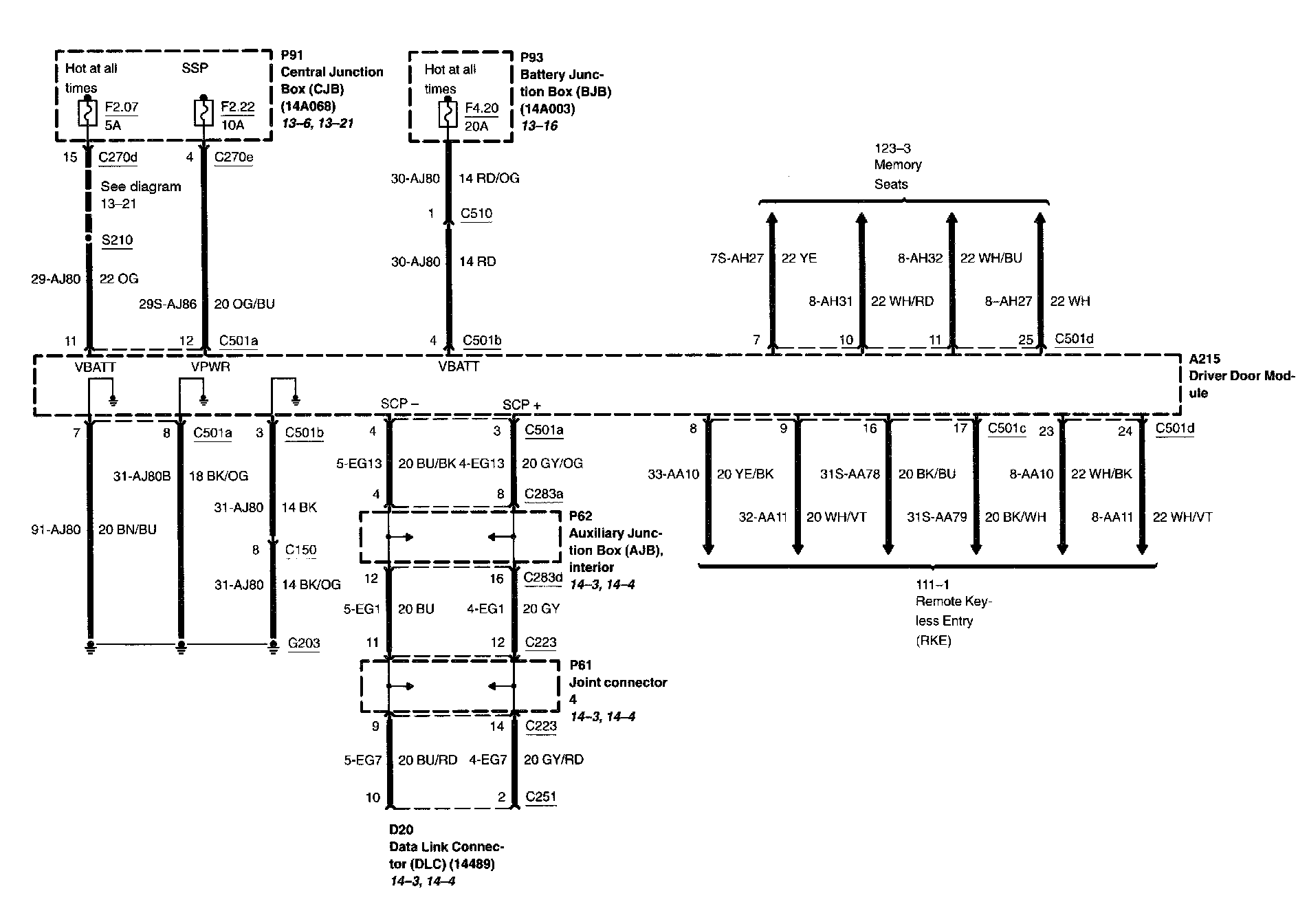

Diagram 59-8:
