Removal and Installation

  1. Disconnect the front anti-lock brake sensor electrical connector.
    Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
    G02211338Courtesy of FORD MOTOR CO.
  2. Raise and support the vehicle.
  3. Remove the routing clips.
    Fig 2: Removing Routing Clips
    G02211339Courtesy of FORD MOTOR CO.
  4. Remove the front anti-lock brake sensor.
    1. Remove the bolt.
    2. Remove the sensor.

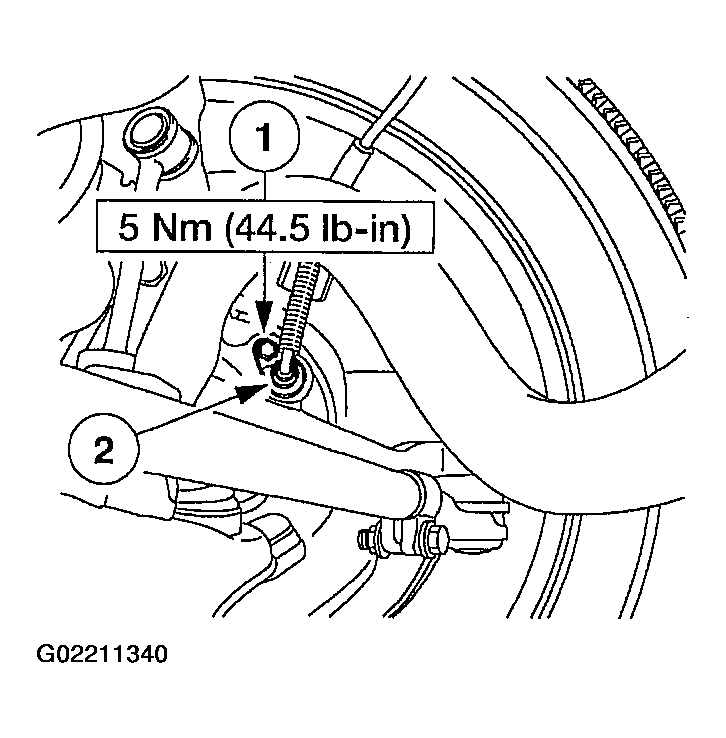

    Fig 3: Removing Front Anti-Lock Brake Sensor
    G02211340Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
