Engine Mechanical: Mechanical: Engine: Engine: Flexplate: Installation

  1. Position the flexplate and loosely install the bolts. Tighten the bolts in the sequence shown.

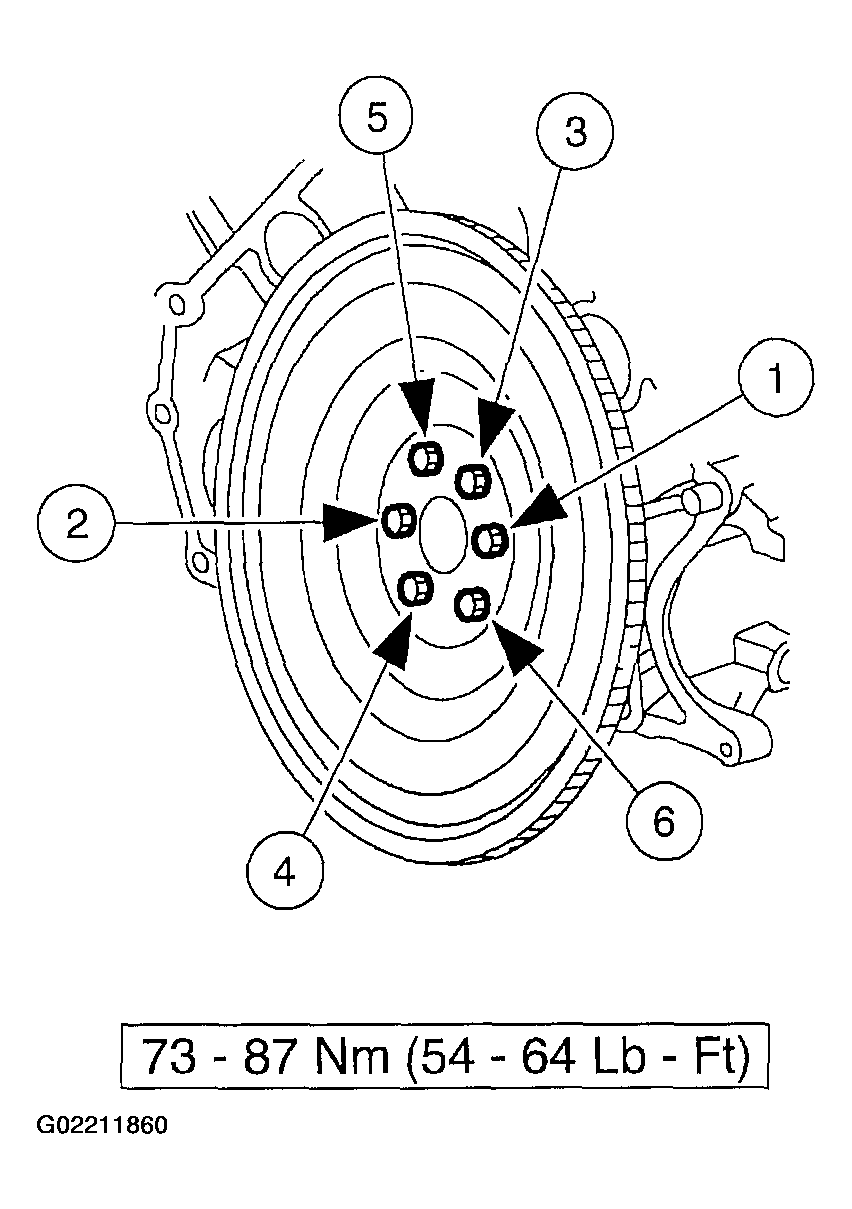

    Fig 1: Identifying Flexplate Bolts Tightening Sequence
    G02211860Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to INSTALLATION .
