Module-Driver Door (DDM): Removal

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of module, it is necessary to upload module configuration information to scan tool. This information needs to be downloaded in to the new module once installed. For additional information; refer to MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Remove the front door trim panel. For additional information, refer to TRIM PANEL -- FRONT DOOR .
Disconnect the electrical connectors from the driver door module (DDM).

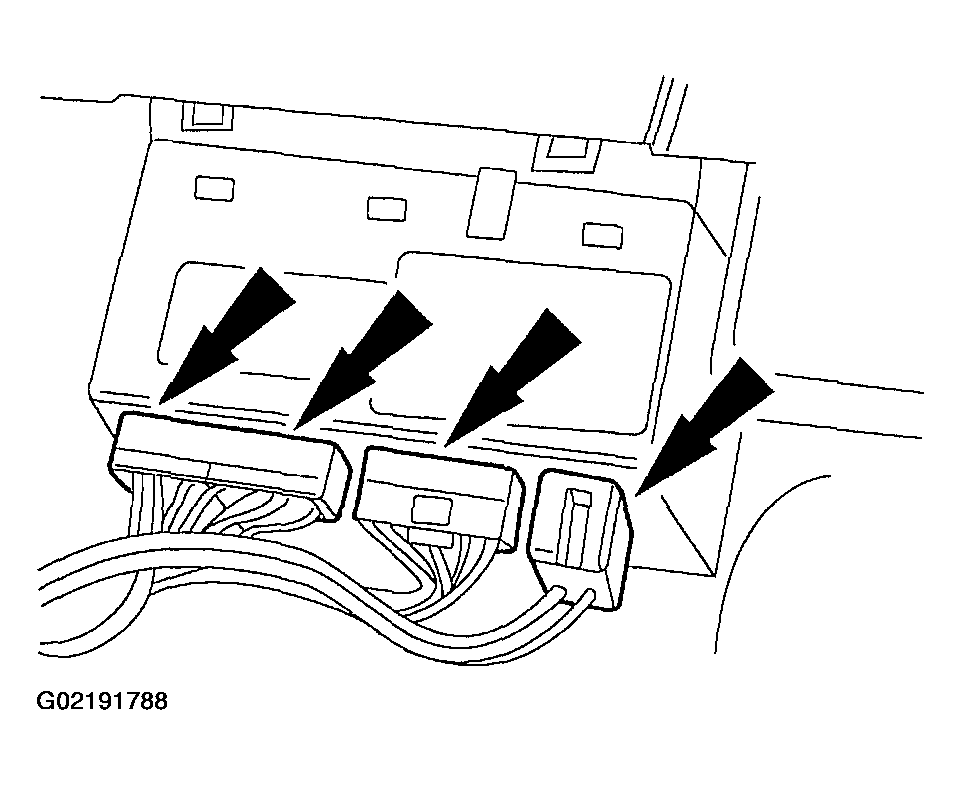

Fig 1: Disconnecting Electrical Connectors From DDM
Courtesy of FORD MOTOR CO.
Release the retaining clips and remove the DDM.

Fig 2: Removing DDM
Courtesy of FORD MOTOR CO.
