Module-Driver Seat (DSM): Removal

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Remove the driver seat. For additional information, refer to FRONT SEAT .

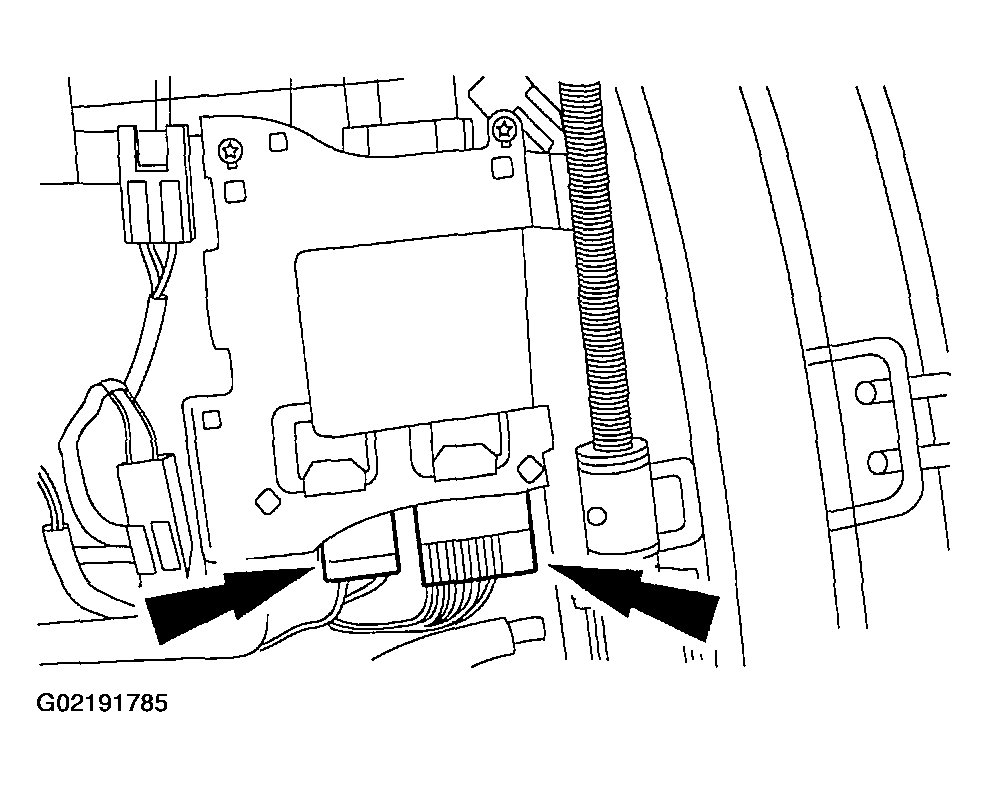

Disconnect the electrical connectors from the driver seat module (DSM).

Fig 1: Disconnecting Electrical Connectors From Driver DSM
Courtesy of FORD MOTOR CO.

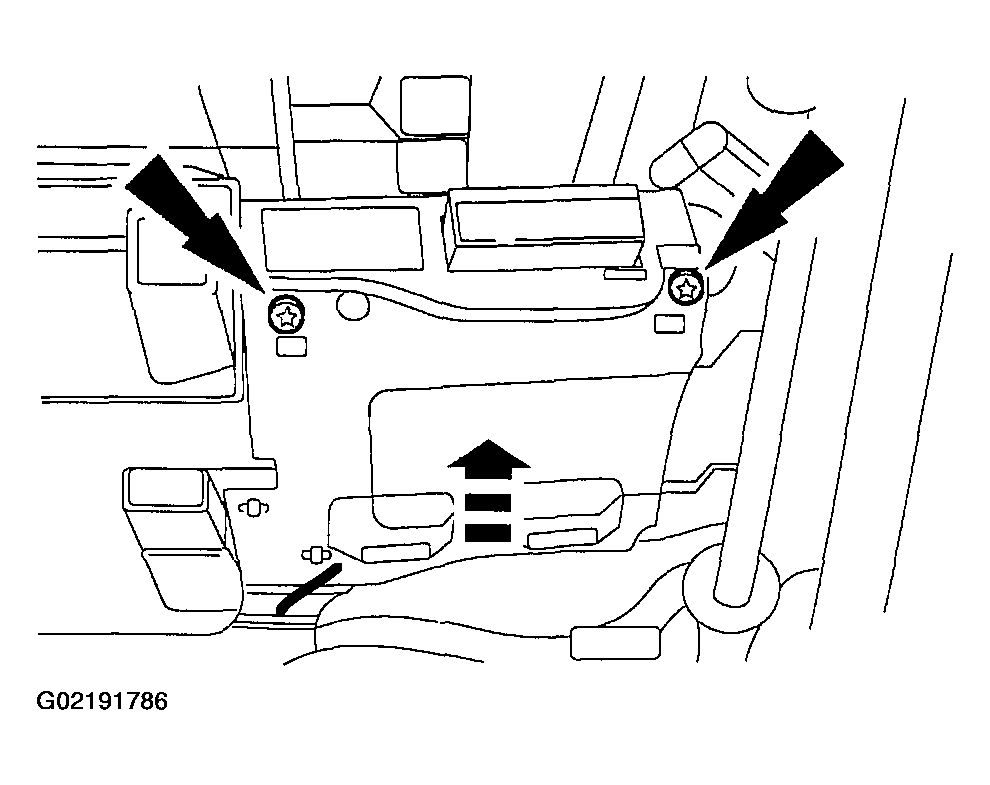

Remove the screws from the module and remove the module.

Fig 2: Removing Module
Courtesy of FORD MOTOR CO.
