Pinpoint Test I: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

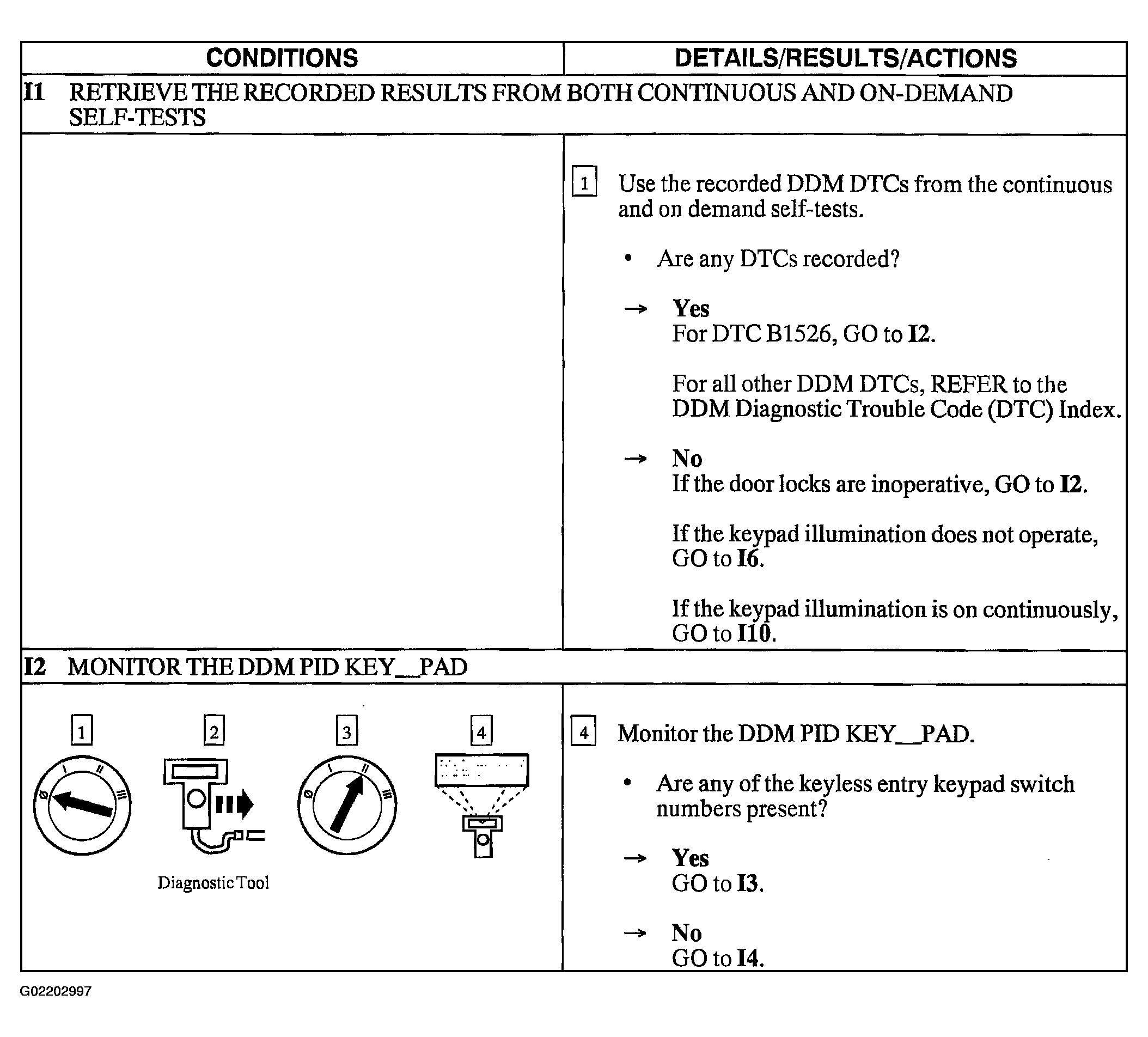

Fig 1: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I1 - I2)

Courtesy of FORD MOTOR CO.

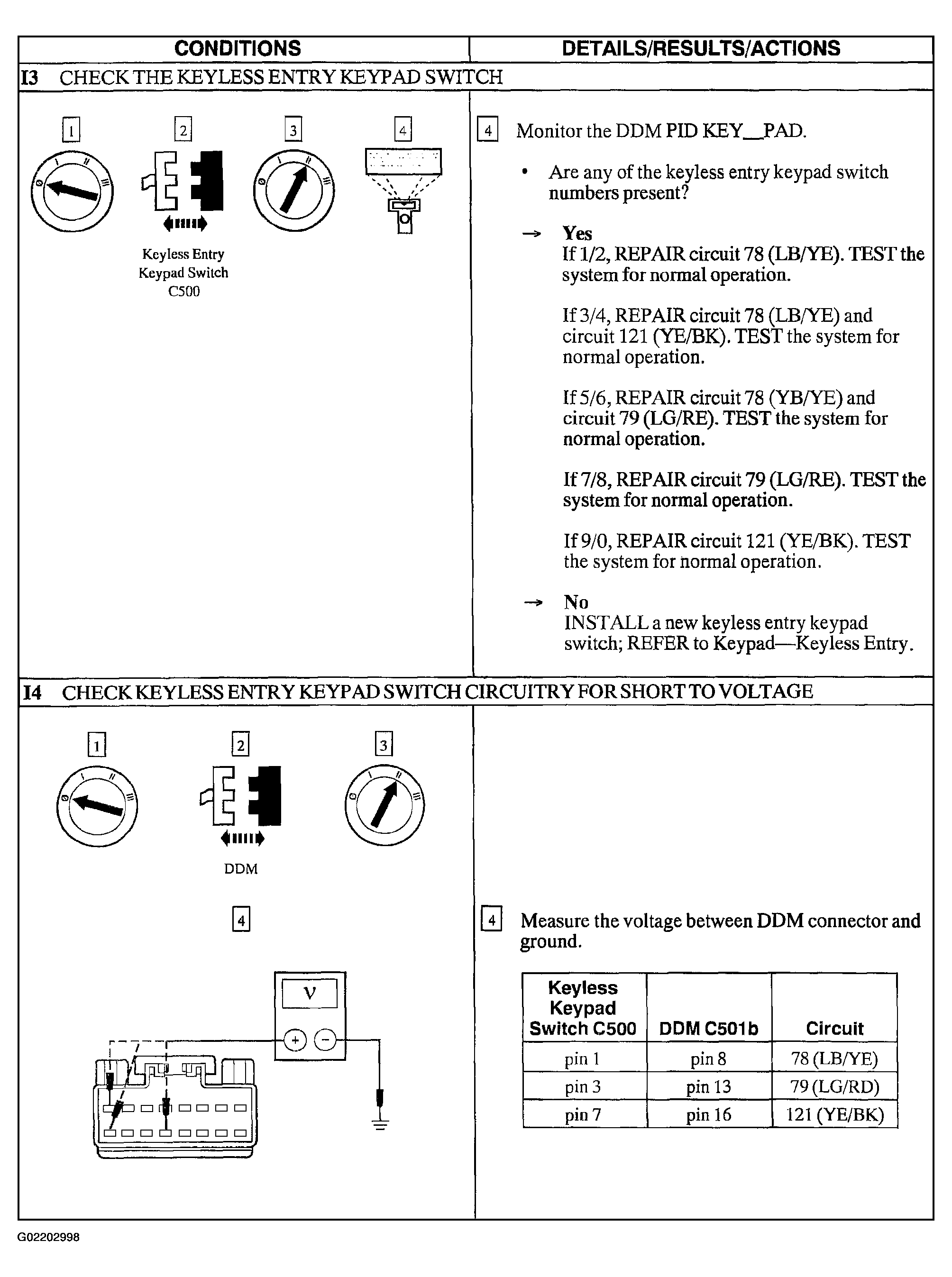

Fig 2: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I3 - I4)

Courtesy of FORD MOTOR CO.

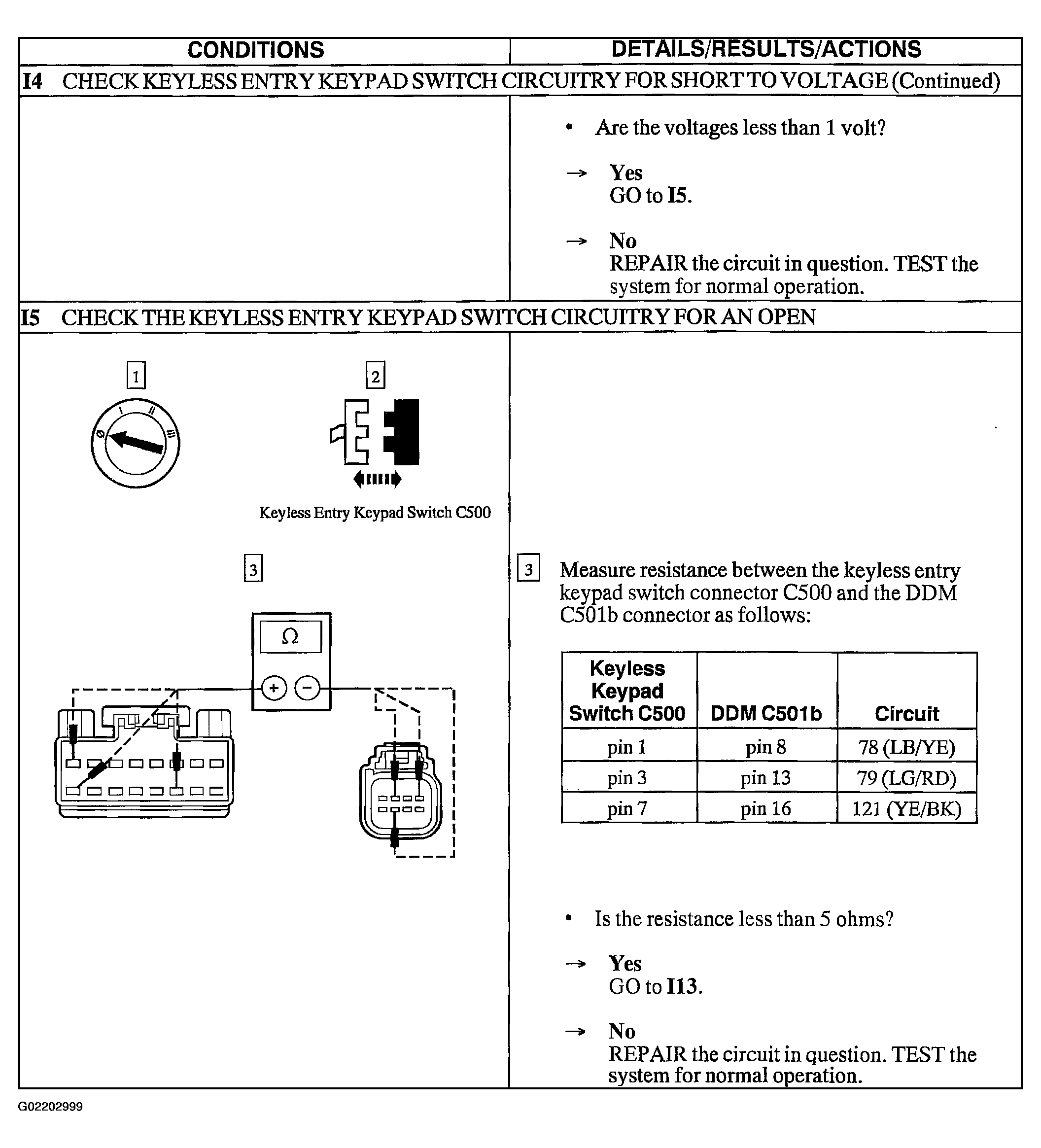

Fig 3: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I4 Cont.- I5)

Courtesy of FORD MOTOR CO.

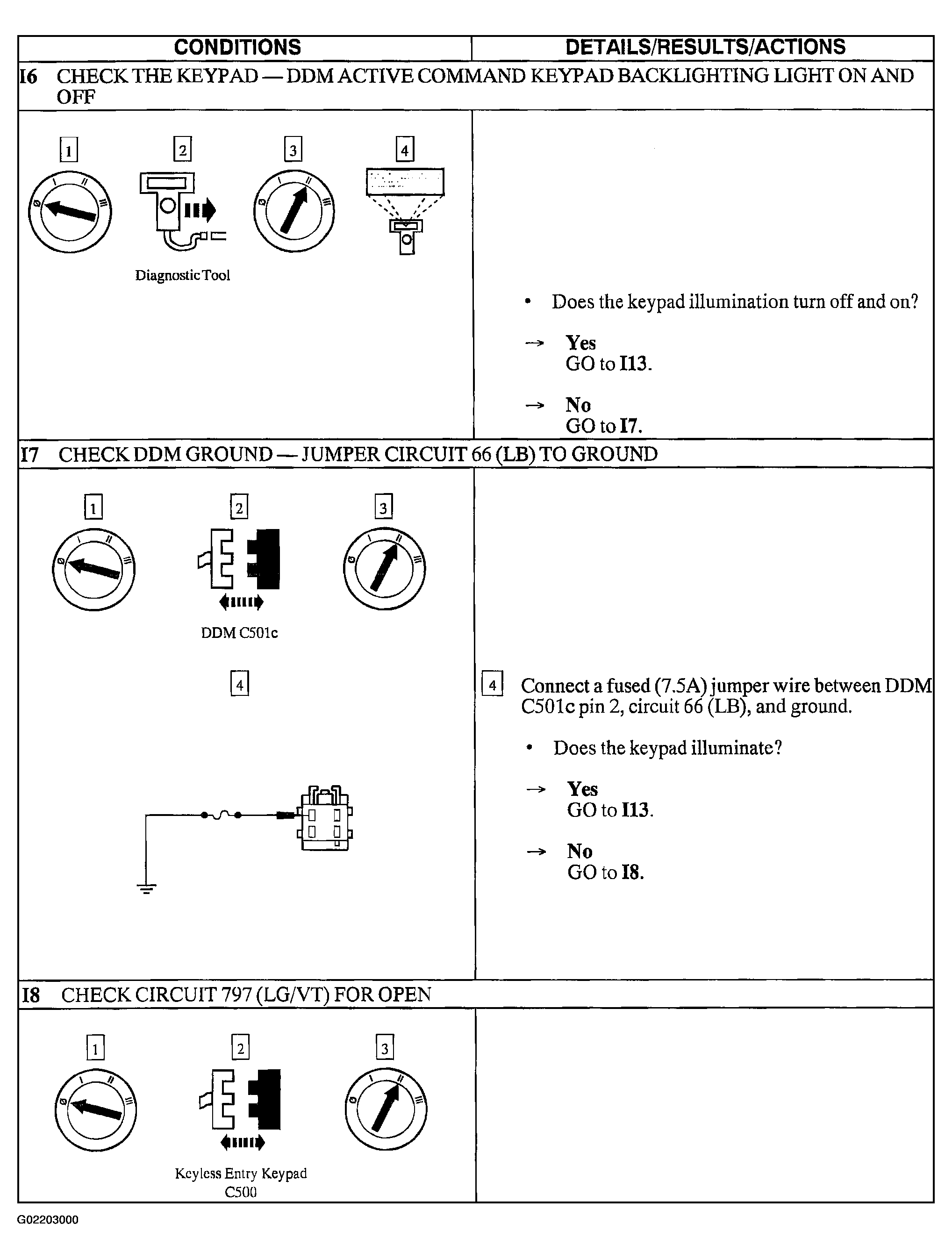

Fig 4: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I6 - I8)

Courtesy of FORD MOTOR CO.

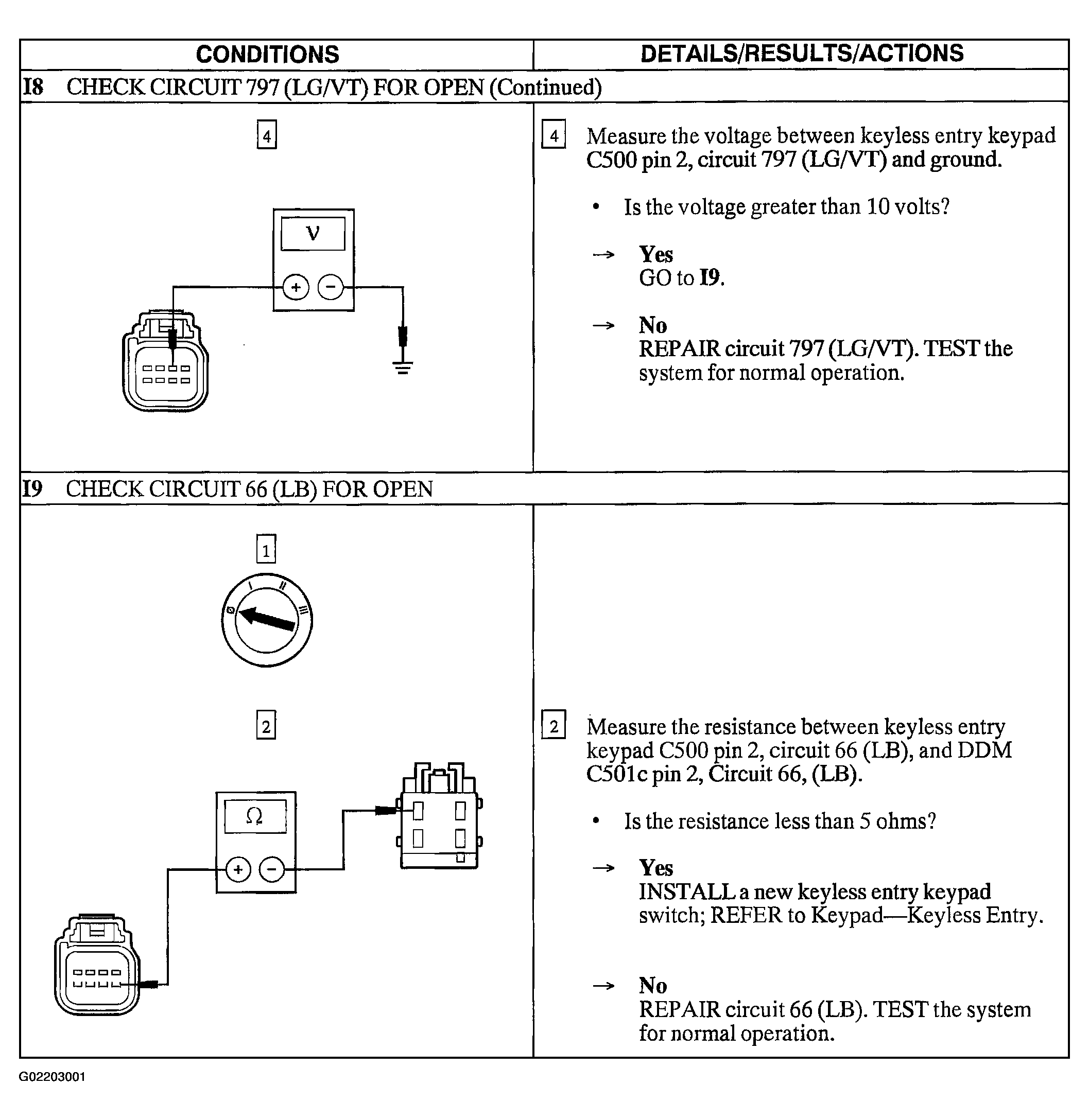

Fig 5: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I8 Cont.- I9)

Courtesy of FORD MOTOR CO.

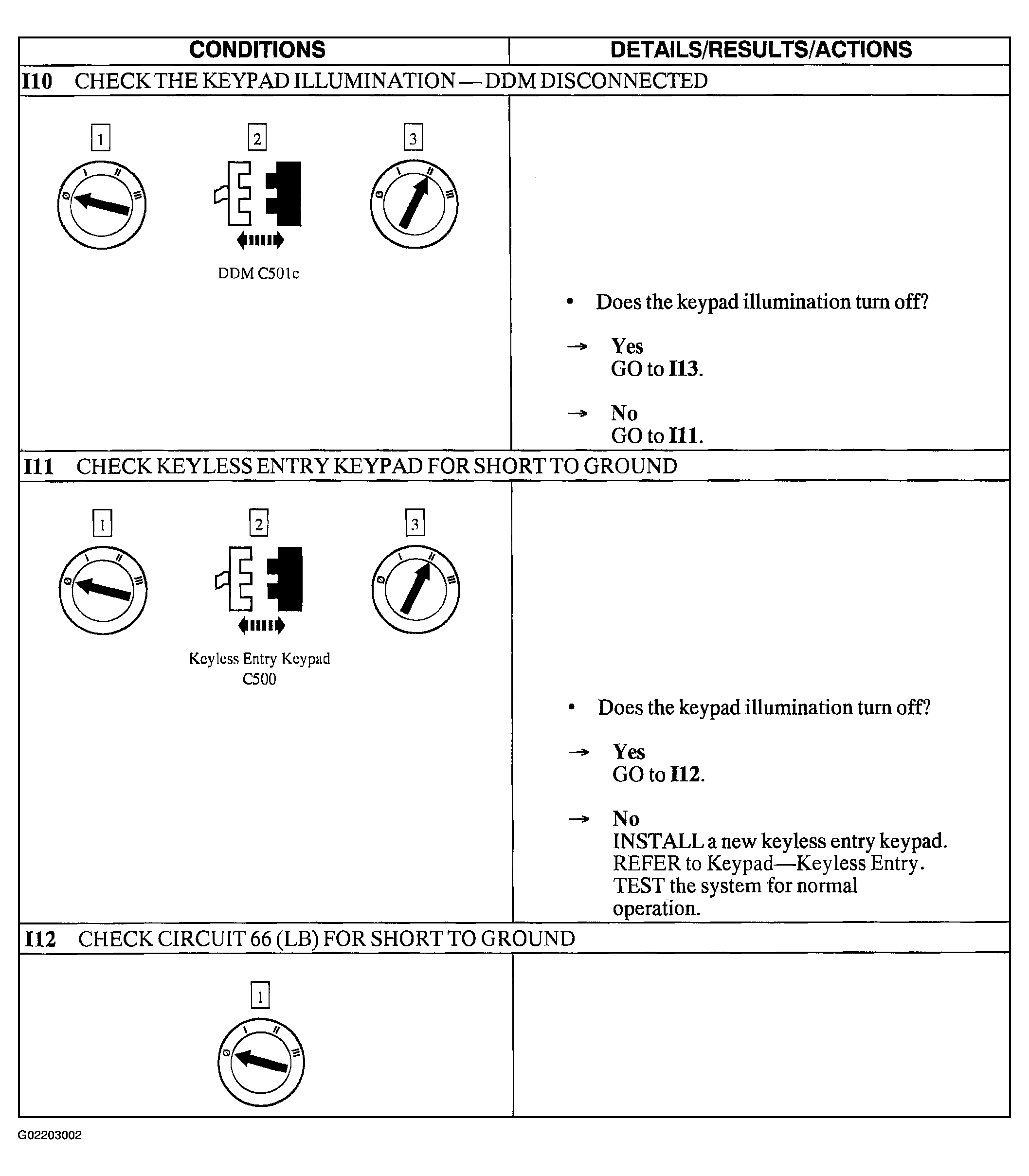

Fig 6: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I10 - I12)

Courtesy of FORD MOTOR CO.

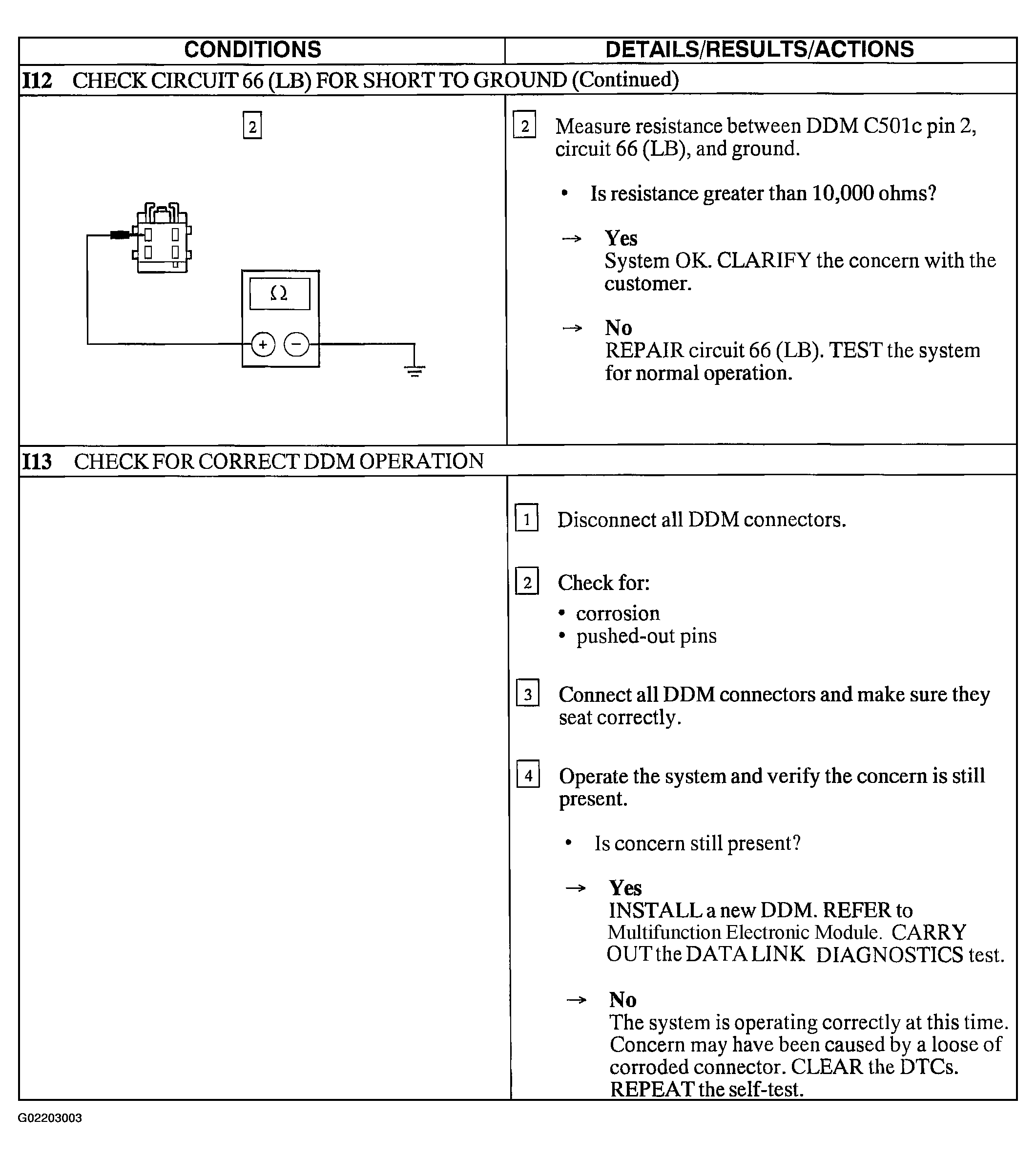

Fig 7: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I12 Cont.- I13)

Courtesy of FORD MOTOR CO.
