Keypad-Keyless Entry: Removal

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver side front door trim panel; refer to TRIM PANEL -- FRONT DOOR .
  2. Remove the watershield.
  3. Remove the keyless entry keypad retaining nut.

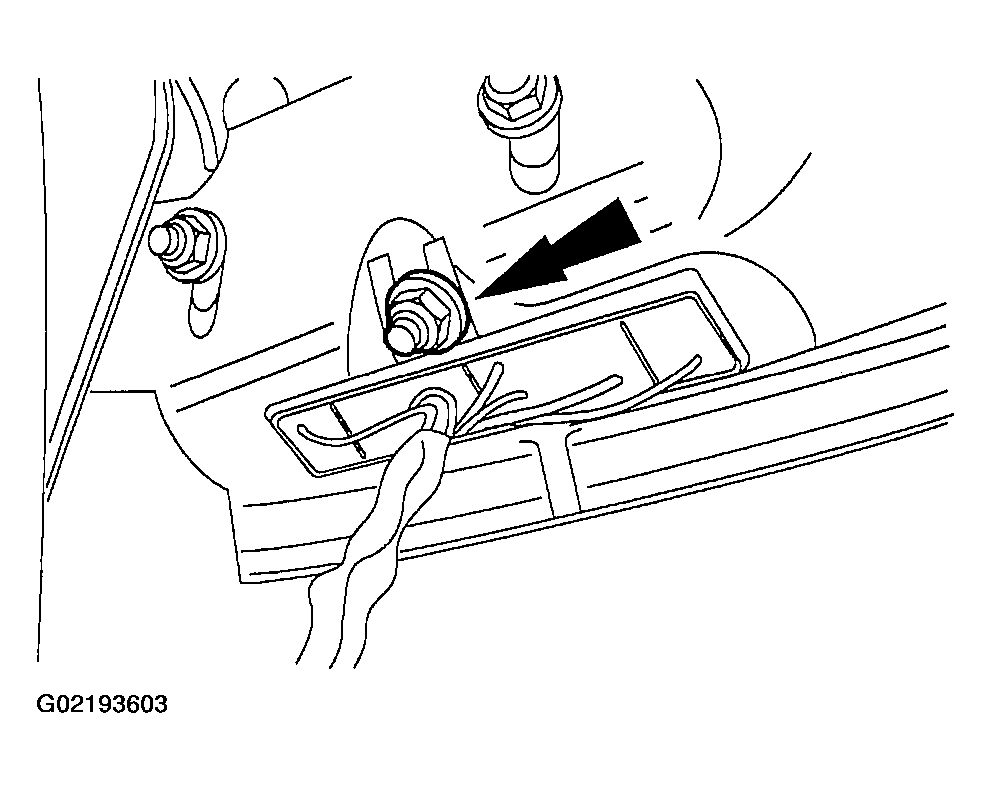

    Fig 1: Removing Keyless Entry Keypad Retaining Nut
    G02193603Courtesy of FORD MOTOR CO.
  4. Remove the keyless entry keypad.
    • Remove the wiring harness locators from retaining holes.
    • Disconnect the electrical connector.

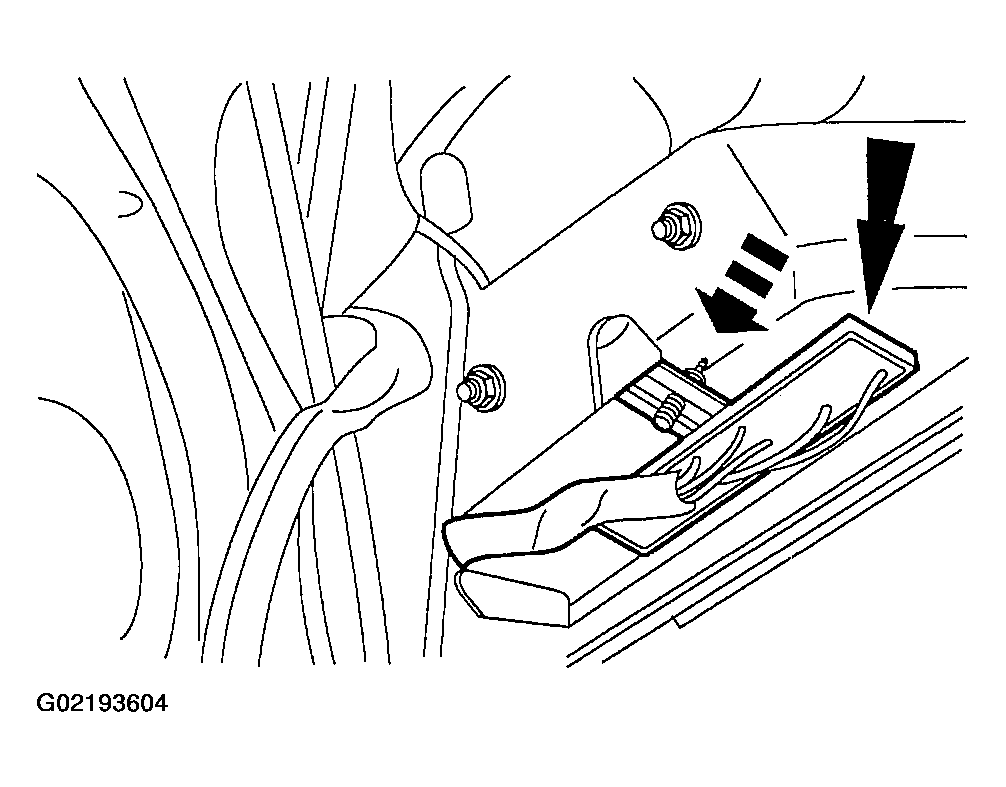

      Fig 2: Removing Keyless Entry Keypad
      G02193604Courtesy of FORD MOTOR CO.
