Azimuth System Check

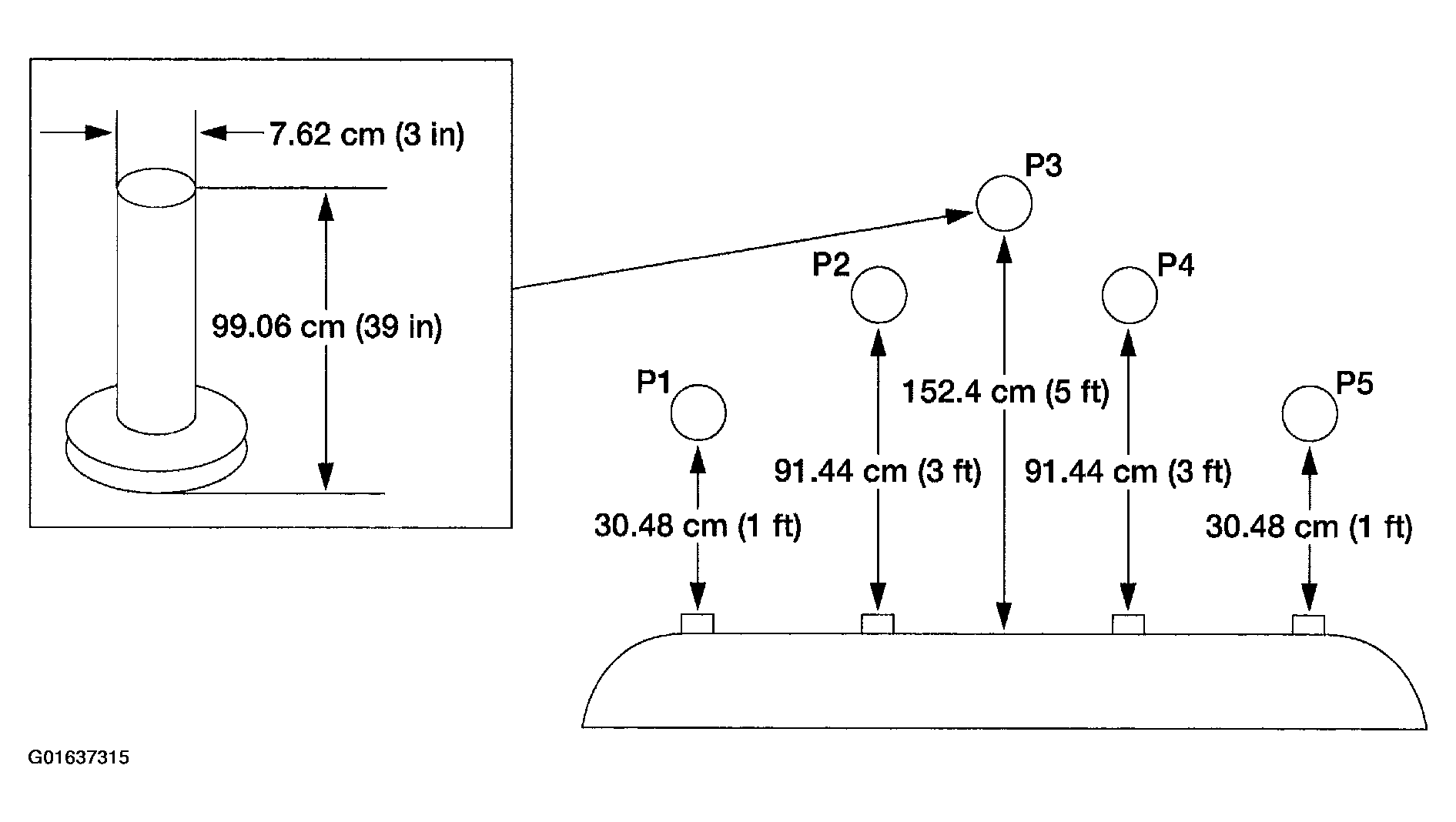

Fig 1: Identifying Minimum Detectable Object Locations

Courtesy of FORD MOTOR CO.

NOTE: The detectable object used in this system check can be fabricated using a 7.62 cm (3 inches) diameter pipe, 99.06 cm (39 inches) in length.

NOTE: The parking aid module system will default to on when the ignition key is cycled from the OFF position to the ON position.

Turn the ignition to the ON position, engine off.
Set the parking brake on.
Place the gearshift in REVERSE (R).
Verify that the parking aid module detects the detectable object when it is placed in the five specified locations (P1, P2, P3, P4 and P5).
