Speed Control Deactivator Switch

1. Remove the components in the order indicated in the following illustration.

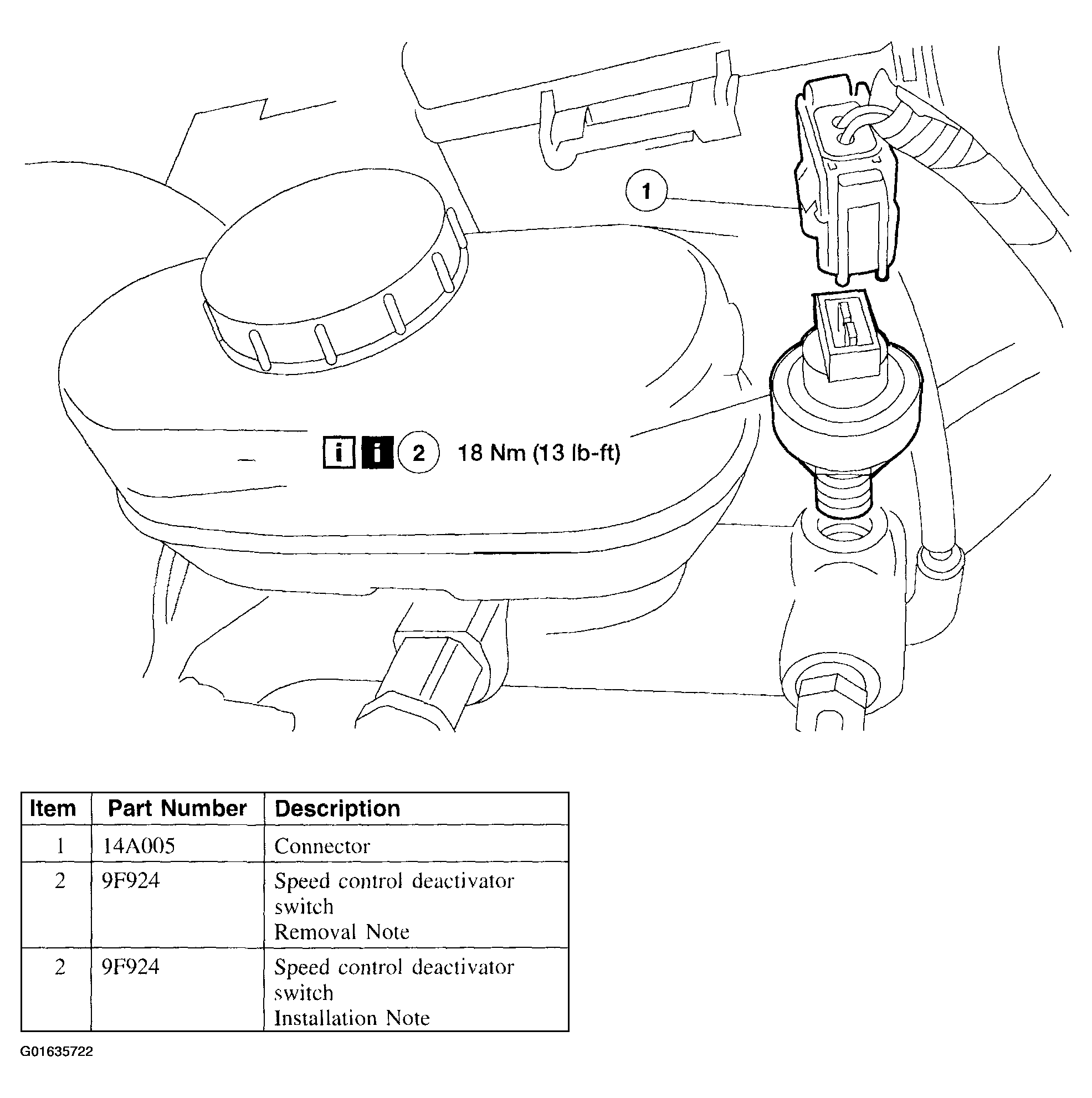

   Fig 1: Exploded View Of Speed Control Deactivator Switch

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.

Item 2: Speed Control Deactivator Switch Removal Note

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
1. Remove the speed control deactivator switch.

Item 2: Speed Control Deactivator Switch Installation Note

1. After the deactivator switch is installed, it is necessary to bleed the brake system. Refer to BRAKE SYSTEM .
