Running Board

  1. Lift and support the vehicle.
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

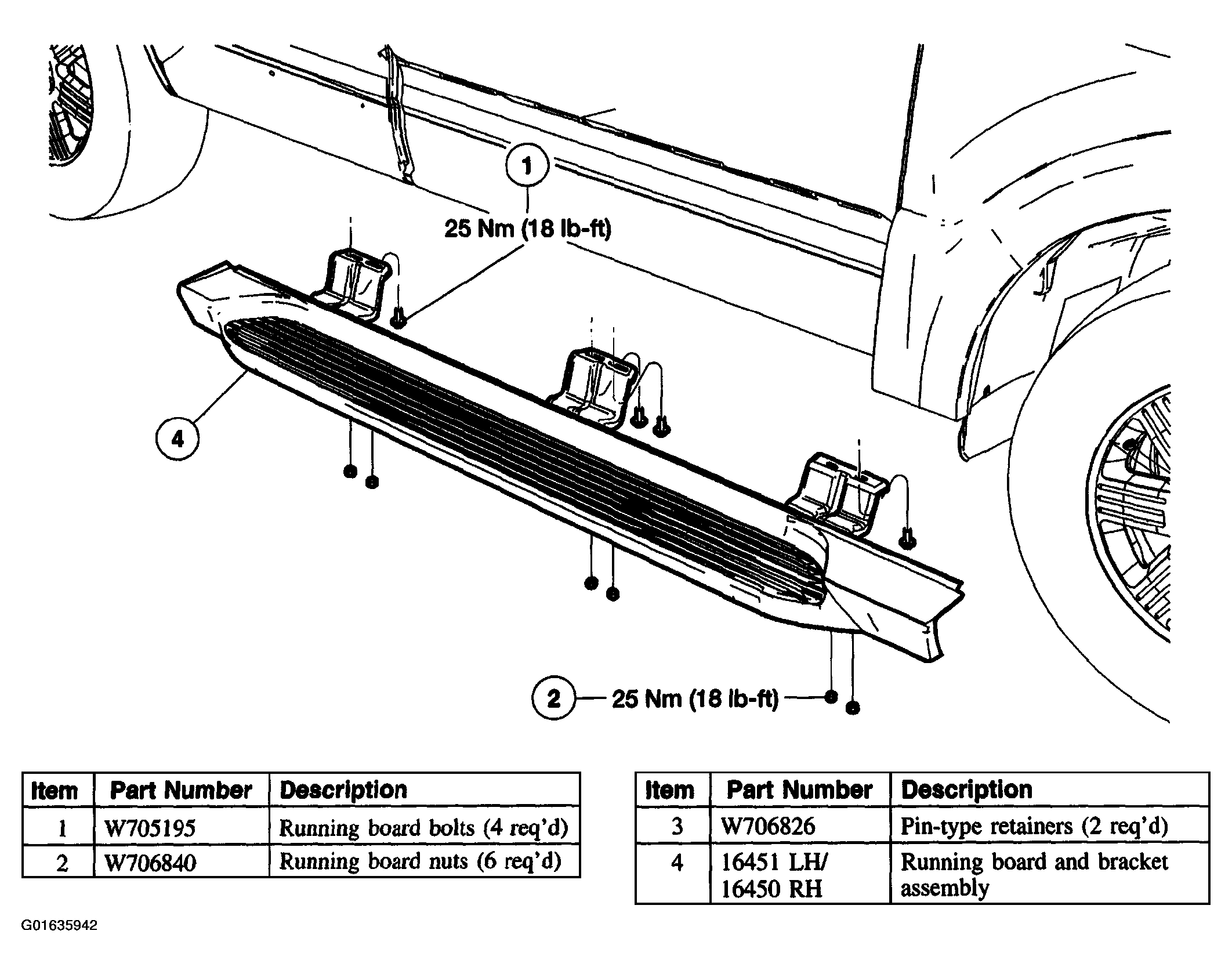

    Fig 1: Running Board Removal Procedure
    G01635942Courtesy of FORD MOTOR CO.
