Connector Circuit Reference

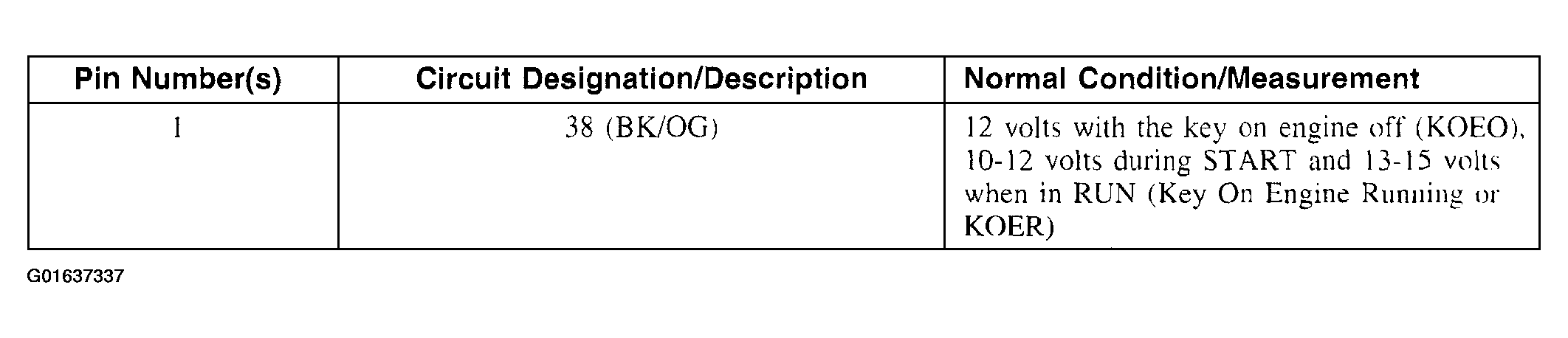

Fig 1: Identifying Generator C102a Connector Terminals And Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Generator C102a Connector Terminals And Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Generator C102a Connector Terminals And Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

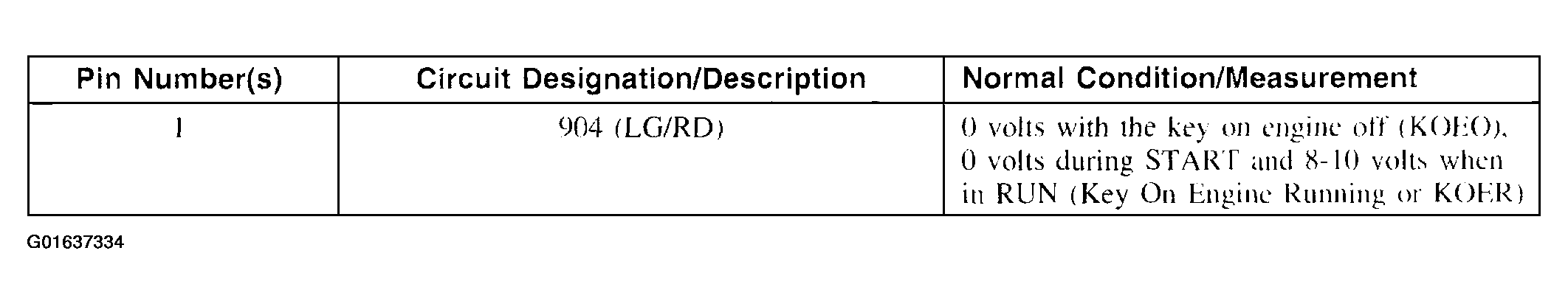

Fig 4: Identifying Generator C102b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Generator C102b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

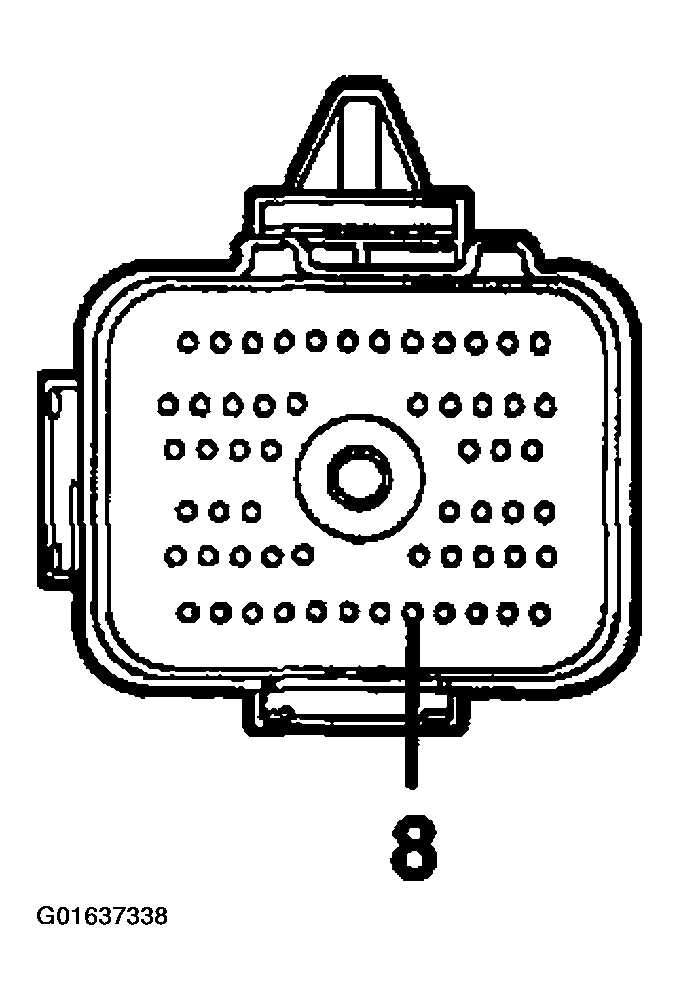

Fig 6: Identifying Powertrain Control Module C175b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

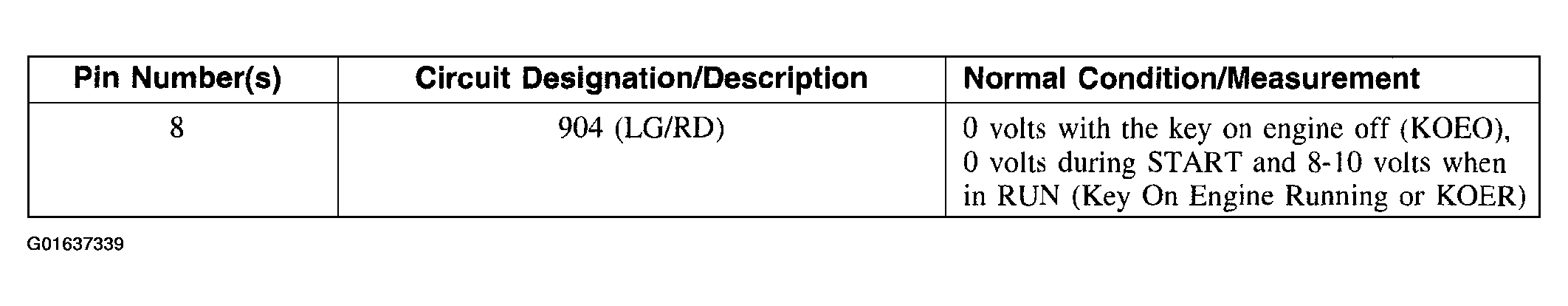

Fig 7: Identifying Powertrain Control Module C175b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
