Pinpoint Test H: Radio Interference
>>
Test Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test Procedure

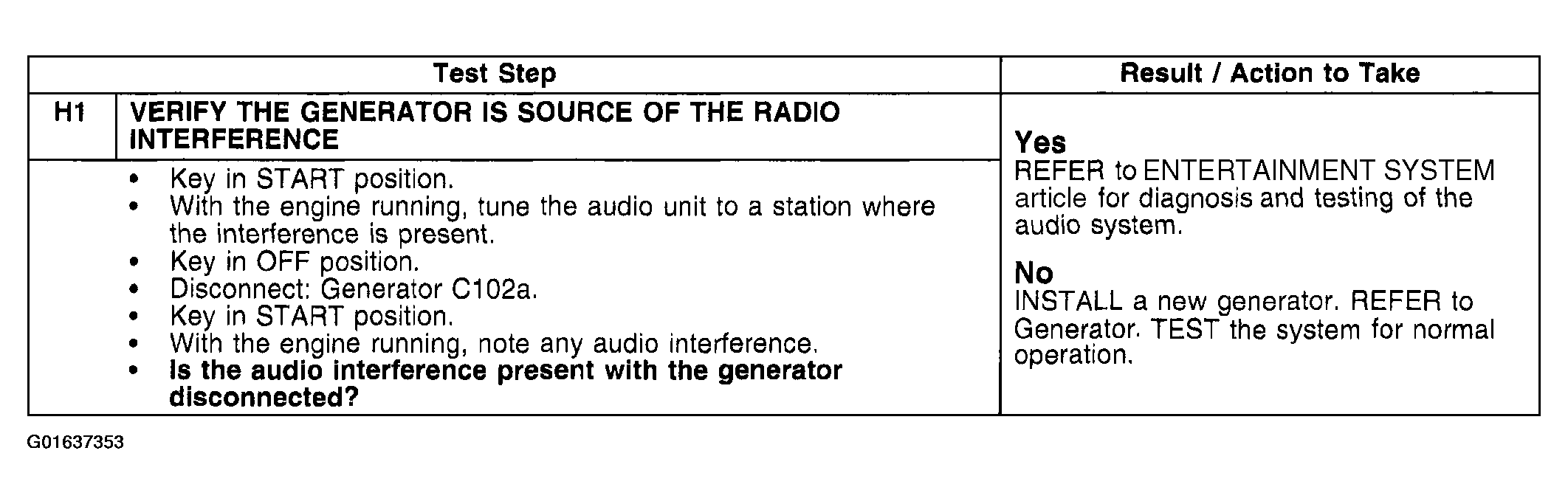

Fig 1: Pinpoint Test H: Radio Interference
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
