Exhaust Manifold RH

  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Remove the RH front wheel and tire. For additional information, refer to SUSPENSION SYSTEM .
  3. Remove the RH front inner fenderwell. For additional information, refer to BODY SYSTEM - EXTERIOR .
  4. Remove the components in the order indicated in the following illustration.
  5. To install, reverse the removal procedure.

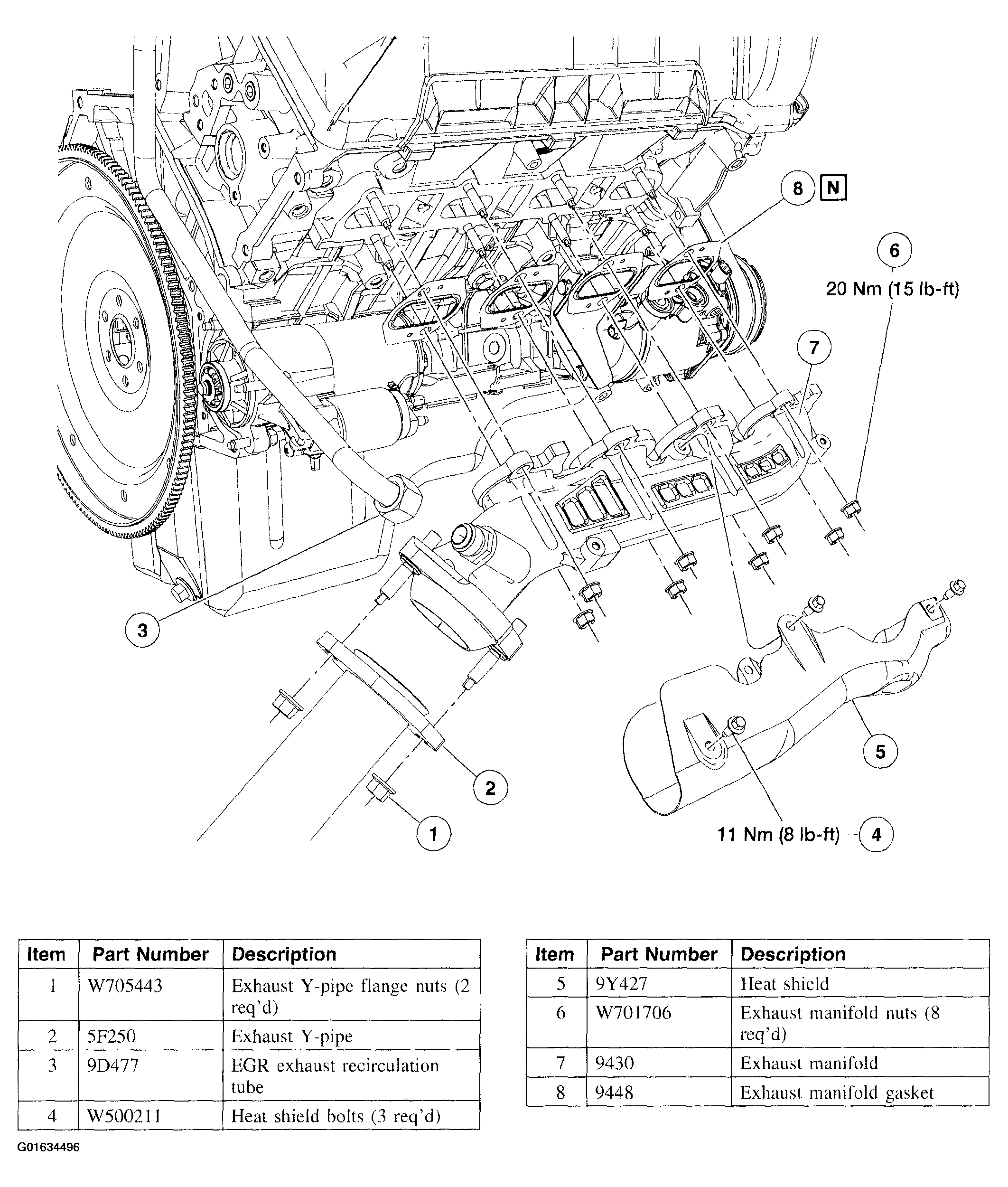

    Fig 1: Removal Sequence Of Exhaust Manifold RH
    G01634496Courtesy of FORD MOTOR CO.
