Valve Springs: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Position the valve spring and the valve spring retainers.

Fig 1: Installing Valve Springs And Valve Spring Retainers Onto Valves
Courtesy of FORD MOTOR CO.
Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 2: Installing Special Tool Between Valve Spring Coils
Courtesy of FORD MOTOR CO.

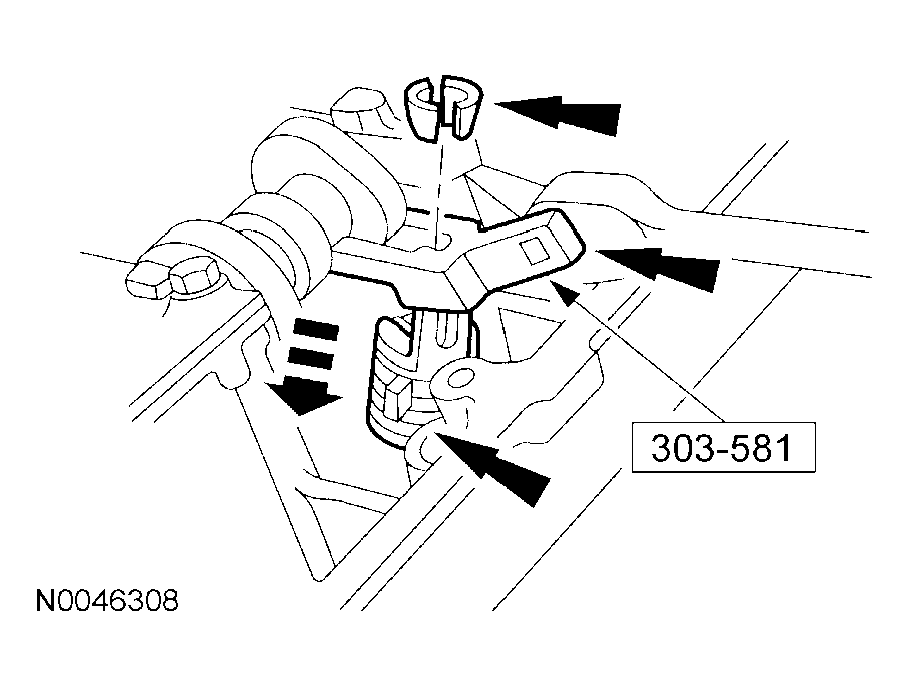

Use the special tool to compress the valve spring. Install the valve spring retainer keys.

Fig 3: Installing Valve Spring Retainer Keys
Courtesy of FORD MOTOR CO.
Remove the special tools.
Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
