Cable Adjustment

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the retaining clip from the speed control actuator cable adjuster.

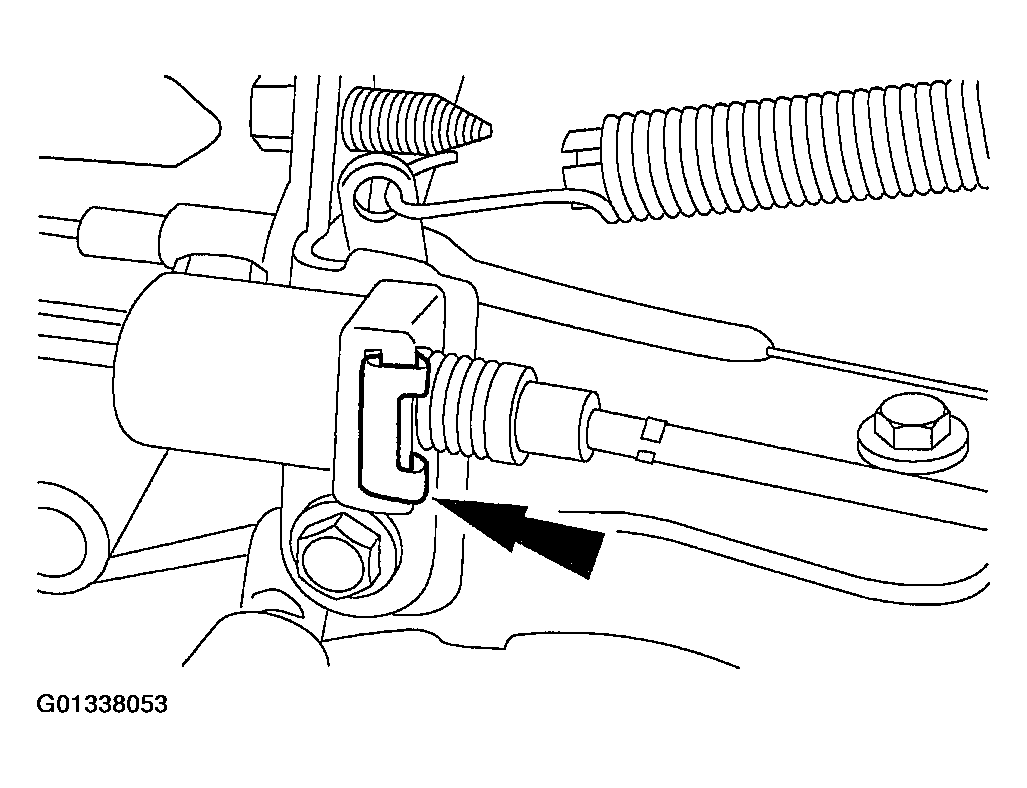

Fig 1: Locating Retaining Clip
Courtesy of FORD MOTOR CO.

NOTE: Make sure the throttle is in the fully closed position.

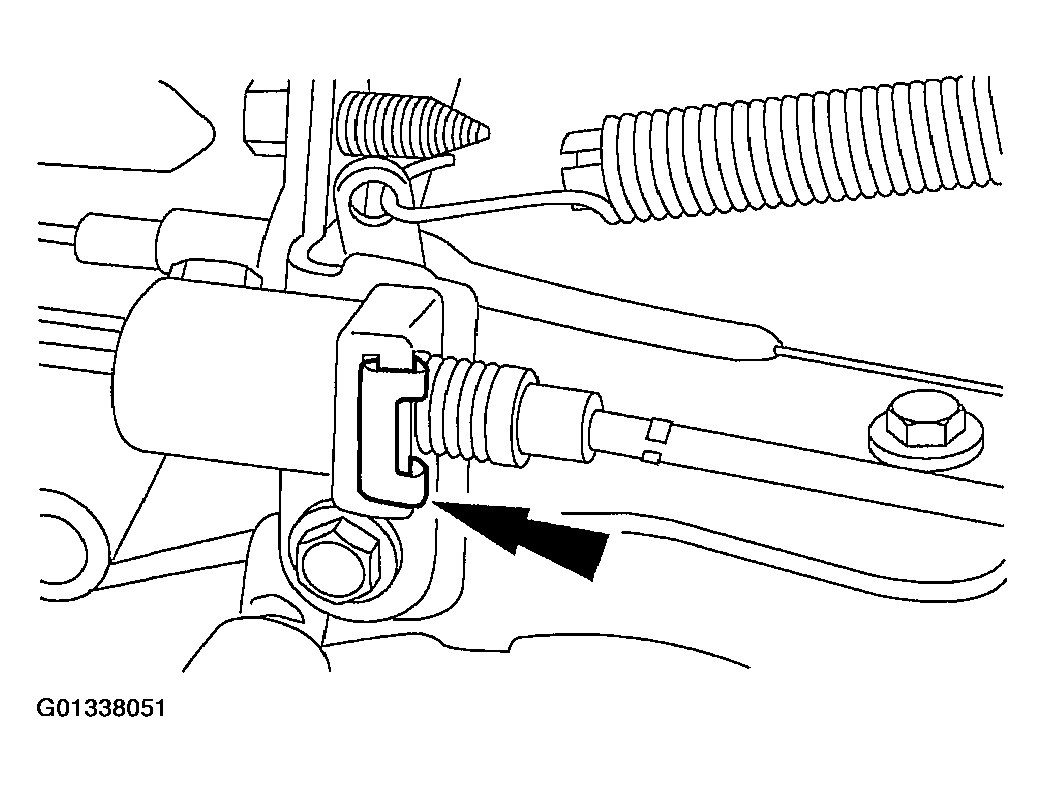

Fig 2: Locating Speed Control Actuator Cable

Courtesy of FORD MOTOR CO.

Pull on the speed control actuator cable to take up slack, then back off at least one notch so there is approximately 3 mm (0.118 in) of slack in the speed control actuator cable.
Insert the speed control actuator cable retaining clip and snap into place.

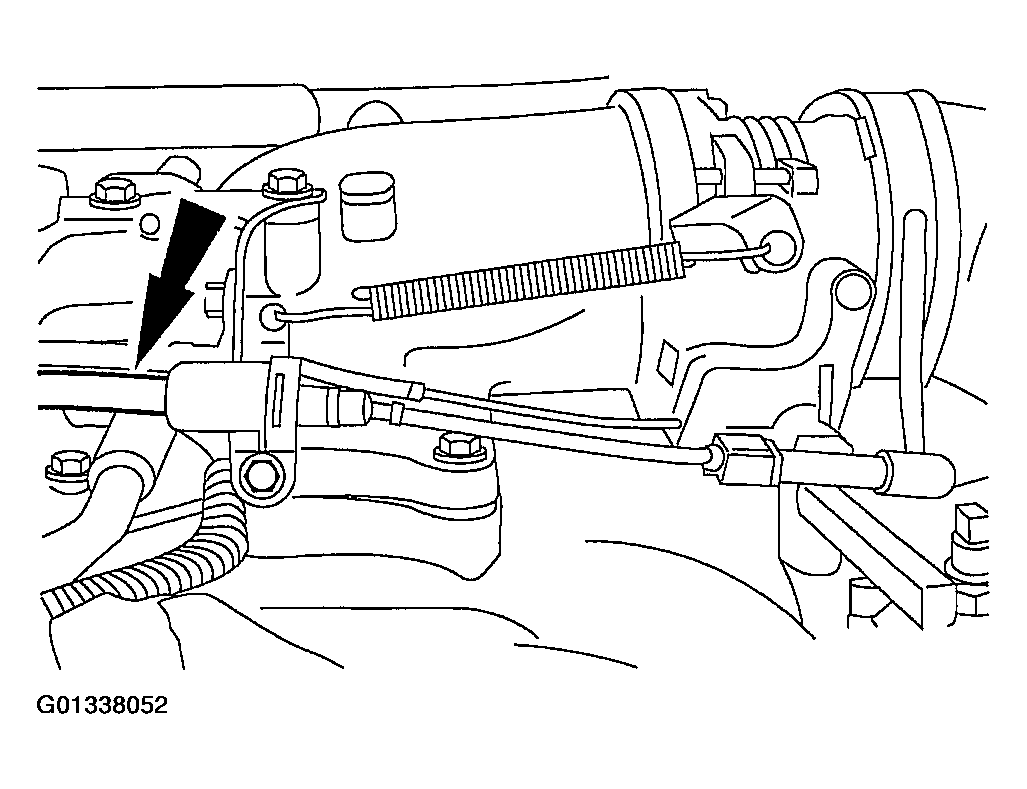

Fig 3: Locating Retaining Clip
Courtesy of FORD MOTOR CO.
Verify that the throttle linkage operates freely and smoothly.
