Speed Control Cable: Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Pull the cable core wire from the speed control actuator cable cap.
Install the speed control cable slug into the speed control servo pulley slot.
1. Gently push the retaining spring.
2. Push the speed control cable slug into the speed control servo pulley slot until the retaining spring snaps back into the seated position.
Fig 1: Connecting Speed Control Actuator Cable
Courtesy of FORD MOTOR CO.

NOTE: Make sure the rubber seal is fully seated onto the speed control actuator cable cap.

NOTE: Incorrect wrapping of the speed control actuator cable around the speed control servo pulley may result in a high idle condition.

Fig 2: Aligning Tabs With Housing

Courtesy of FORD MOTOR CO.

Align the speed control actuator cable cap tabs with the slots in the speed control servo housing.
Rotate the speed control actuator cable cap until the locking tab engages.

Fig 3: Engaging Locking Tab
Courtesy of FORD MOTOR CO.
Connect the speed control actuator cable to the throttle lever.
1. Install the bolt.
2. Connect the speed control actuator cable to the throttle lever by snapping into place.

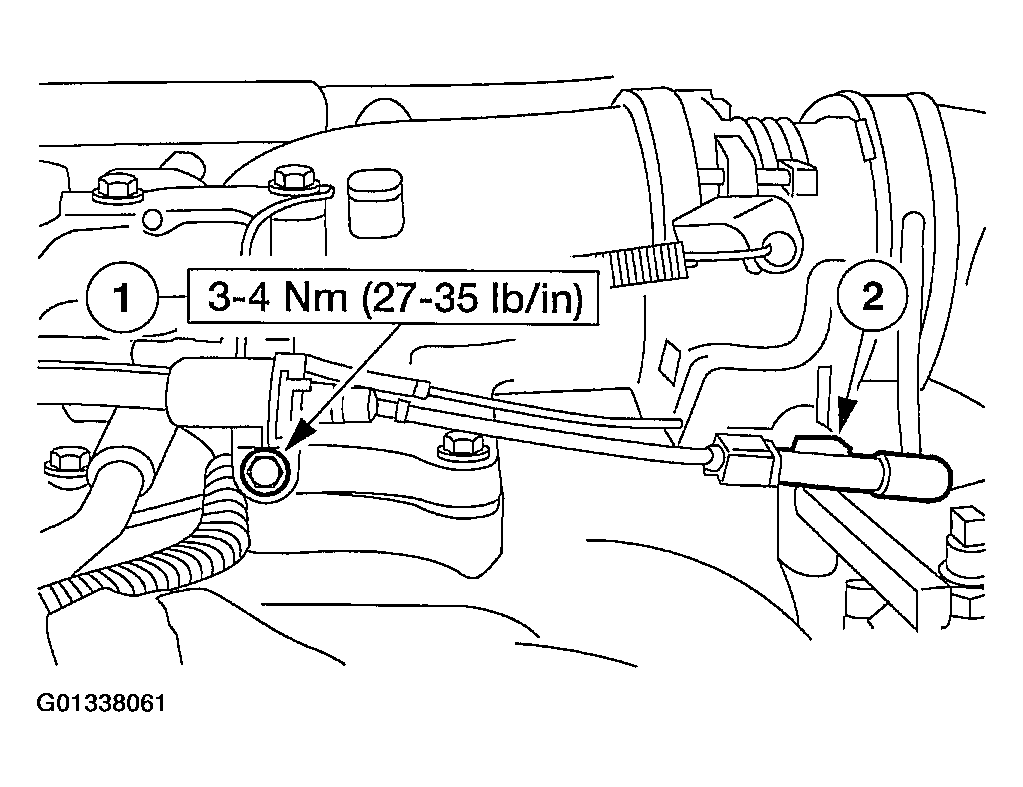

Fig 4: Installing Speed Control Actuator Cable
Courtesy of FORD MOTOR CO.
Adjust the speed control actuator cable. For additional information, see SPEED CONTROL CABLE .
Install the screws and the engine cover.

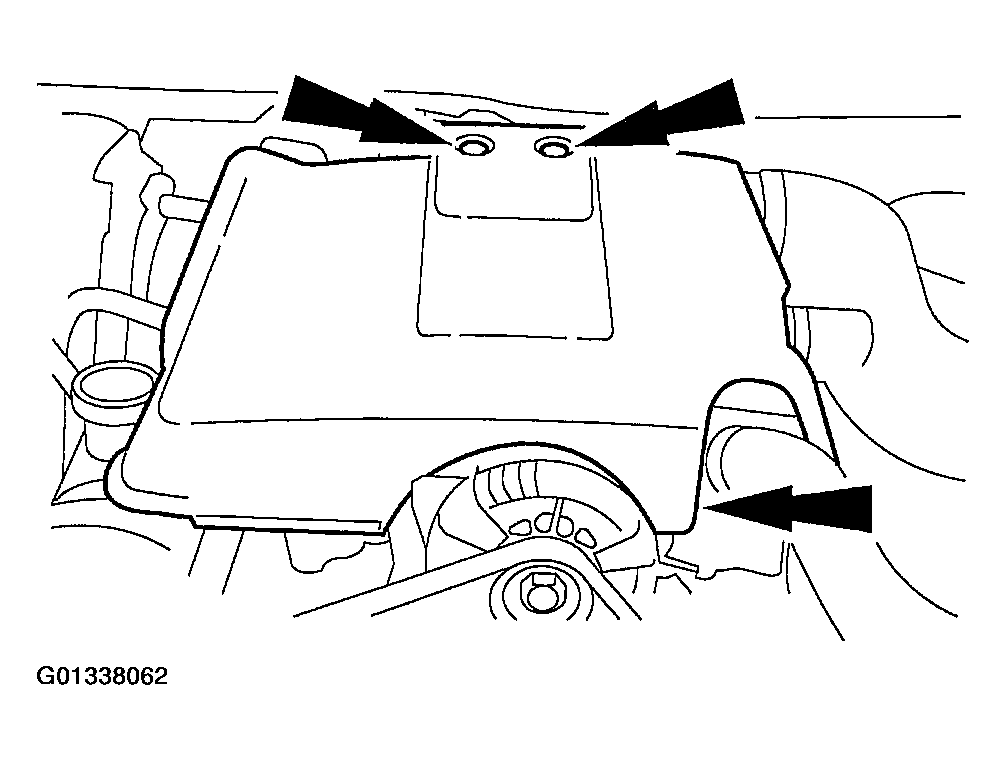

Fig 5: Removing/Installing Engine Cover
Courtesy of FORD MOTOR CO.
