Speed Control Cable: Removal

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and the engine cover.

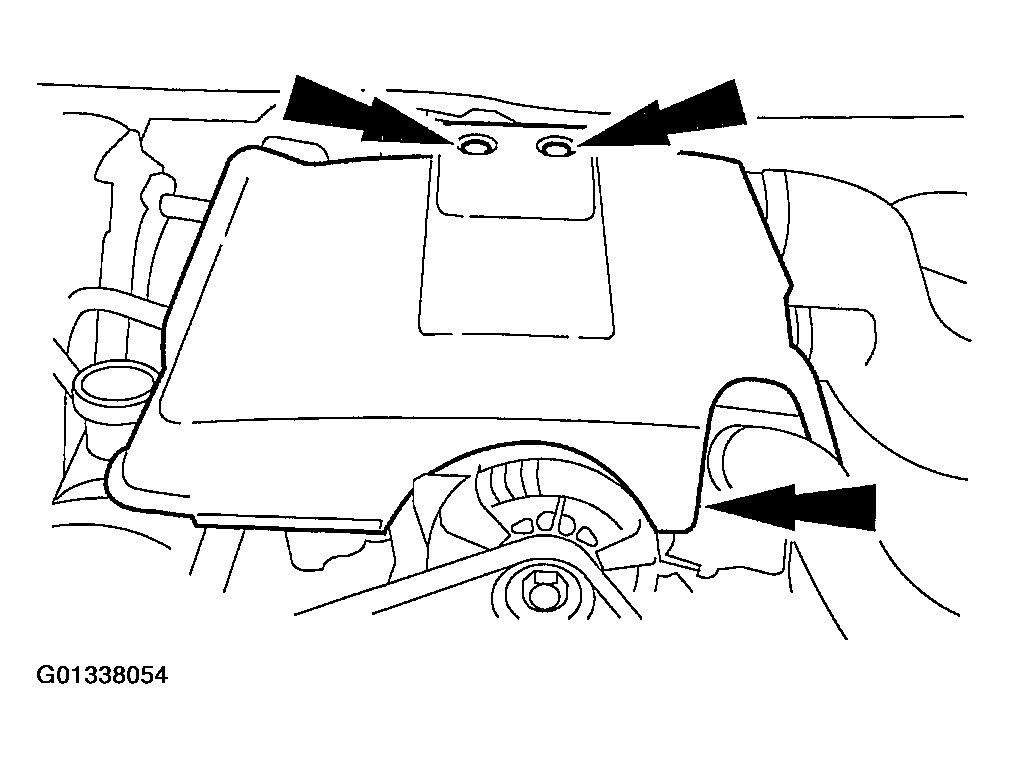

    Fig 1: Removing/Installing Engine Cover
    G01338054Courtesy of FORD MOTOR CO.
  2. Position aside the speed control actuator cable.
    1. Remove the bolt.
    2. Disconnect the speed control actuator cable from the throttle lever.

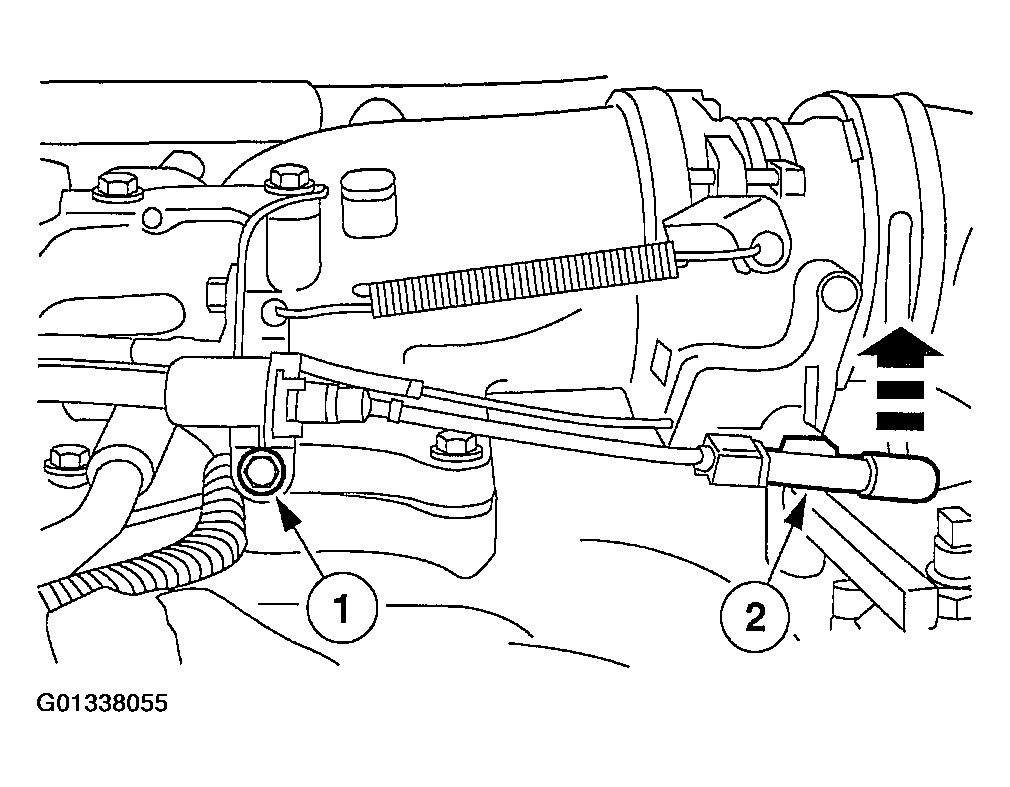

    Fig 2: Removing Speed Control Actuator Cable
    G01338055Courtesy of FORD MOTOR CO.
  3. Depress the locking tab and rotate the speed control actuator cable cap to remove.
    Fig 3: Releasing Locking Tab
    G01338056Courtesy of FORD MOTOR CO.
  4. Disconnect the speed control actuator cable from the speed control servo pulley.
    1. Gently push the retaining spring.
    2. Disconnect the speed control actuator cable slug from the speed control servo pulley.
    Fig 4: Disconnecting Speed Control Actuator Cable
    G01338057Courtesy of FORD MOTOR CO.
