Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully depress the brake pedal.
  2. Install the deactivator switch.
    1. Position the deactivator switch in the bracket and rotate clockwise.
    2. Connect the electrical connector.

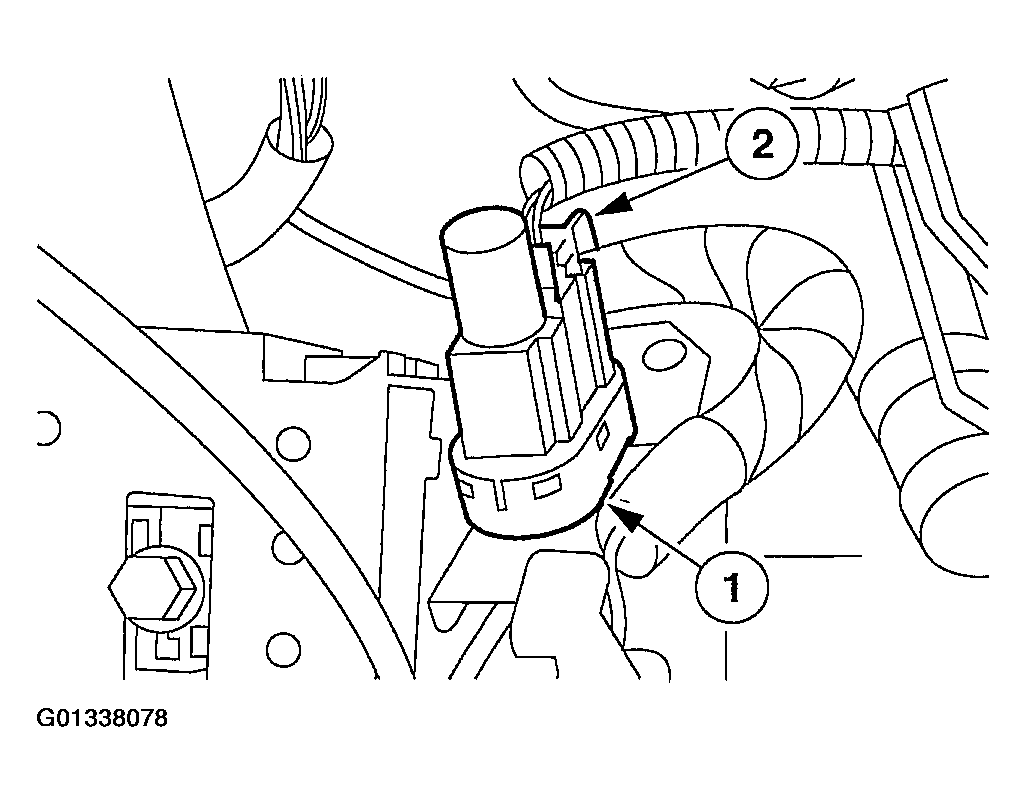

    Fig 1: Installing Deactivator Switch
    G01338078Courtesy of FORD MOTOR CO.
  3. Slowly release the brake pedal.
  4. Connect the battery ground cable.
