Speed Control Servo: Removal

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

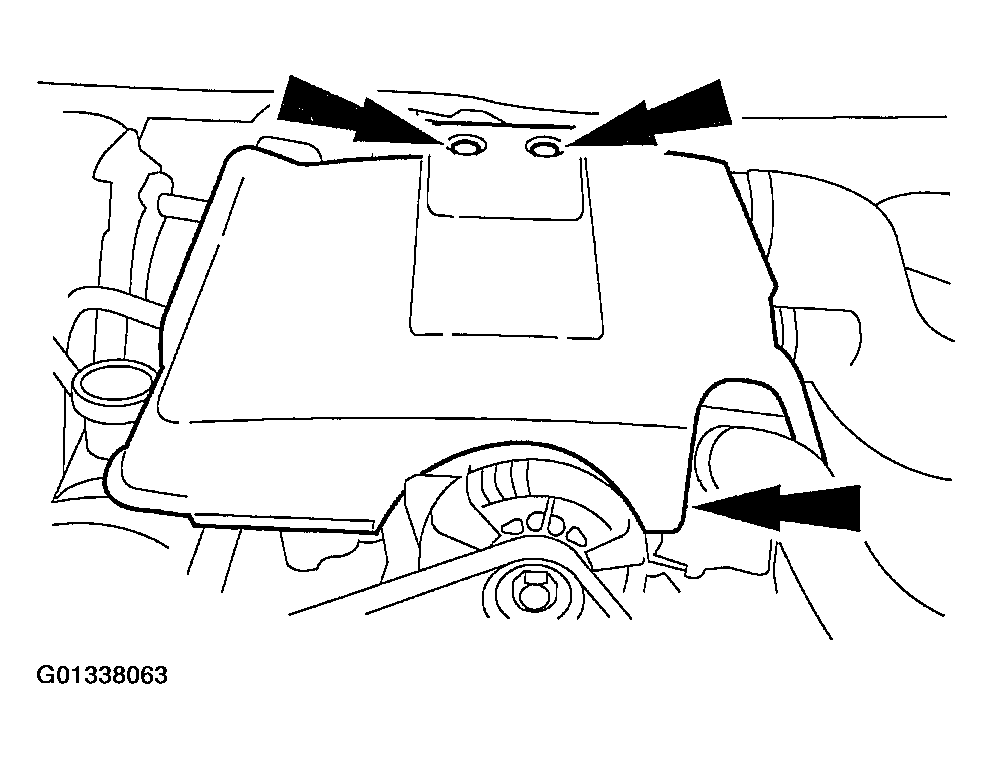

Remove the screws and the engine cover.

Fig 1: Removing/Installing Engine Cover
Courtesy of FORD MOTOR CO.

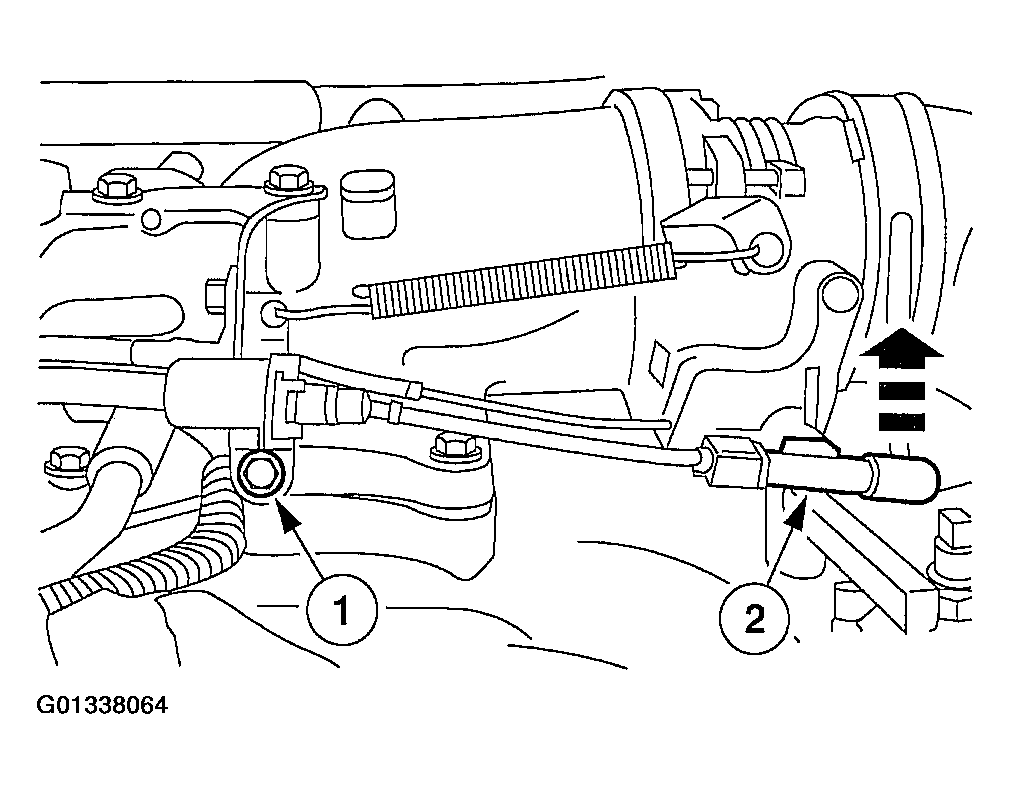

Position aside the speed control actuator cable.
1. Remove the bolt.
2. Disconnect the speed control actuator cable from the throttle lever.
Fig 2: Removing Speed Control Actuator Cable
Courtesy of FORD MOTOR CO.
Depress the locking tab and rotate the speed control actuator cable cap to remove.

Fig 3: Releasing Locking Tab
Courtesy of FORD MOTOR CO.
Disconnect the speed control actuator cable from the speed control servo pulley.
1. Gently push the retaining spring.
2. Disconnect the speed control actuator cable slug from the speed control servo pulley.
Fig 4: Disconnecting Speed Control Actuator Cable
Courtesy of FORD MOTOR CO.

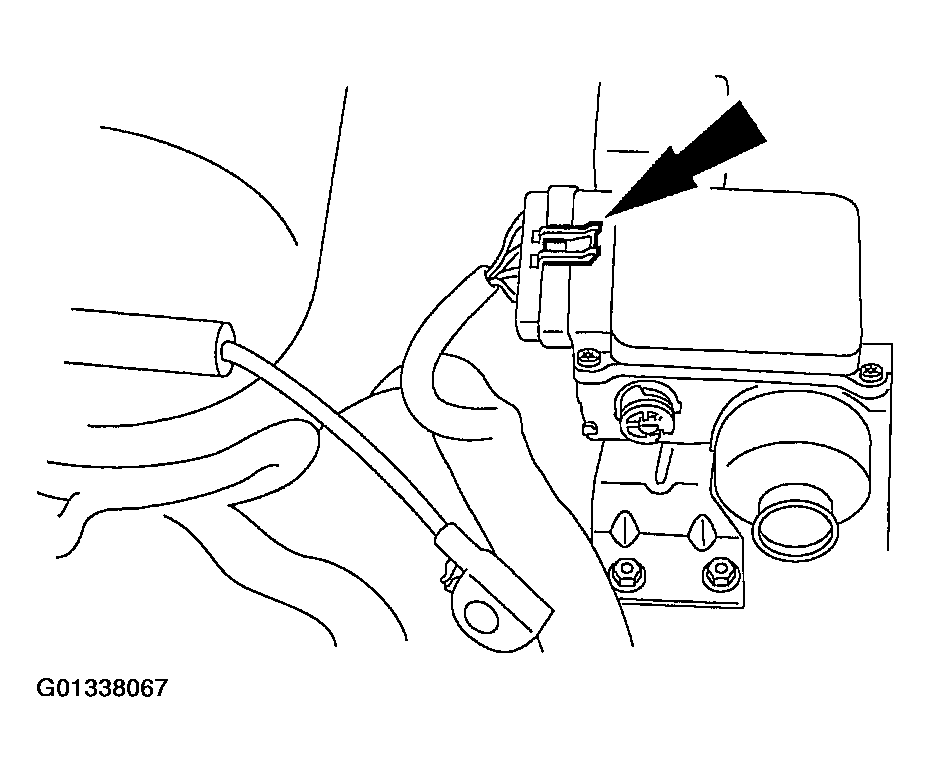

Disconnect the electrical connector.

Fig 5: Locating Electrical Connector
Courtesy of FORD MOTOR CO.

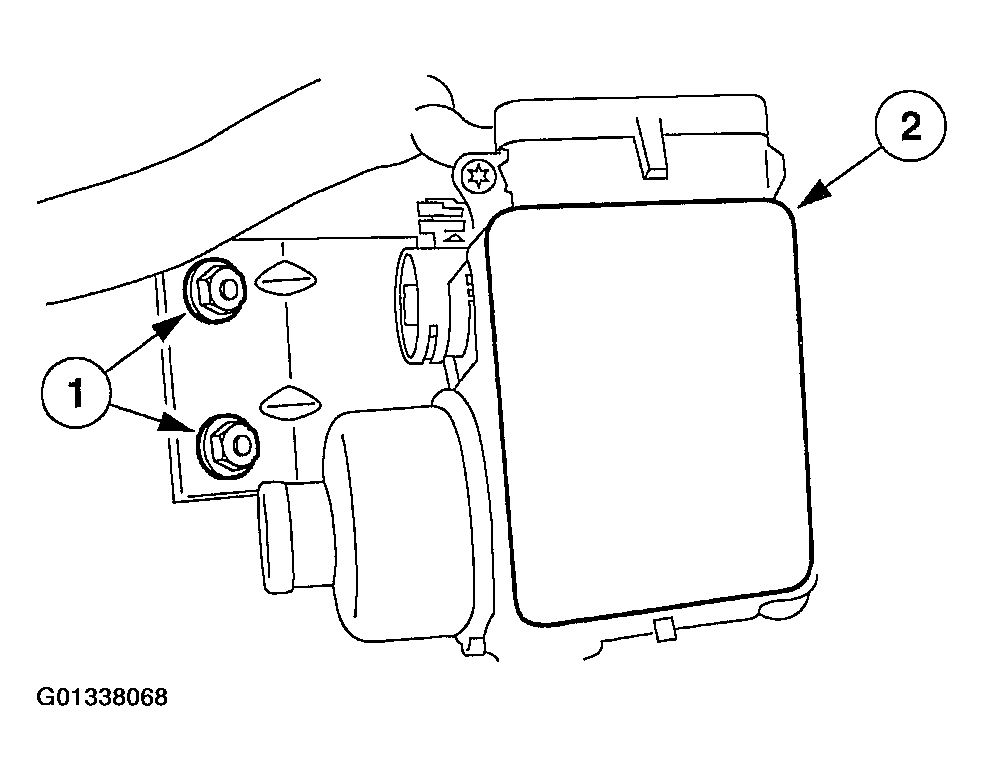

Remove the speed control servo.
1. Remove the nuts.
2. Remove the speed control servo.
Fig 6: Locating Speed Control Servo Nuts
Courtesy of FORD MOTOR CO.
Separate the speed control servo from the bracket.
1. Remove the screws.
2. Remove the bracket.
Fig 7: Locating Speed Control Servo Bracket Screws
Courtesy of FORD MOTOR CO.
