Speed Control Switch: Removal

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
  2. CAUTION: When separating the speed control actuator switch from the steering wheel, it is necessary to take precautions not to damage the steering wheel.

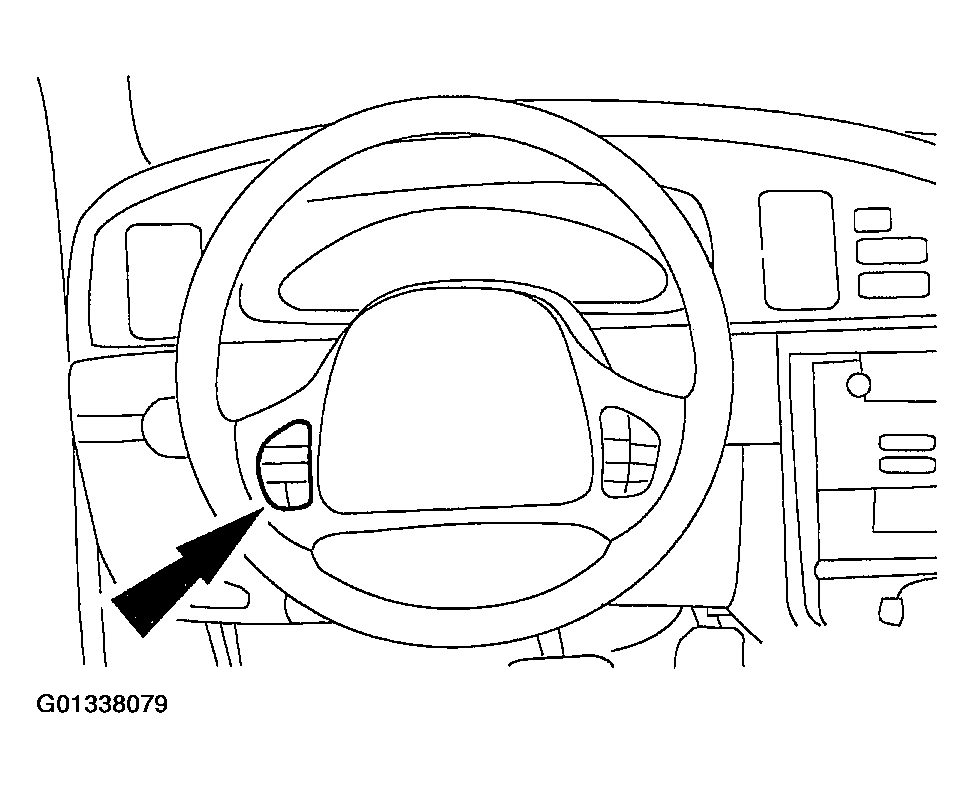

    Fig 1: Locating Speed Control Actuator Switch
    G01338079Courtesy of FORD MOTOR CO.
  3. Pry the speed control actuator switch out of the steering wheel.
  4. Remove the speed control actuator switch.
    • Disconnect the speed control actuator switch electrical connector.
    Fig 2: Locating Speed Control Actuator Switch Electrical Connector
    G01338080Courtesy of FORD MOTOR CO.
