Speed Control Servo: Removal

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws and the engine cover.

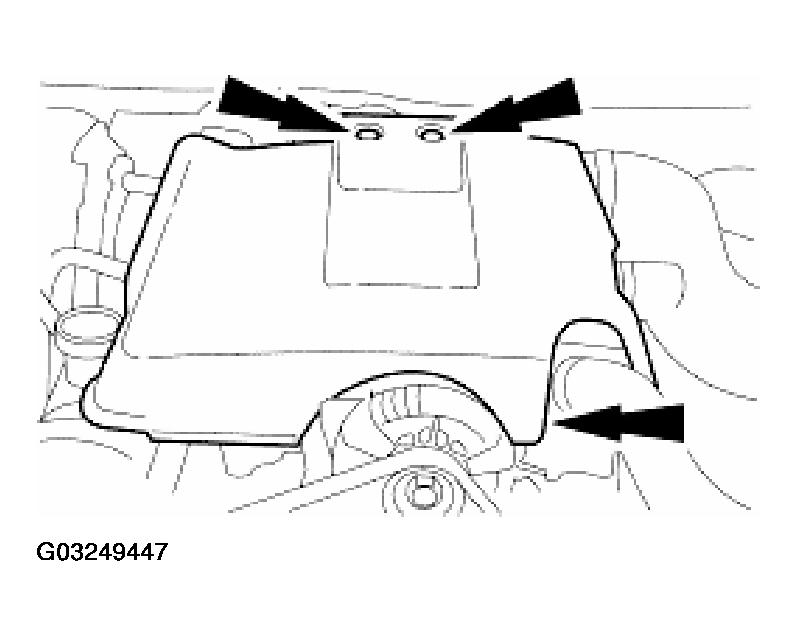

Fig 1: Removing Engine Cover
Courtesy of FORD MOTOR CO.
Position aside the speed control actuator cable.
1. Remove the bolt.
2. Disconnect the speed control actuator cable from the throttle lever.

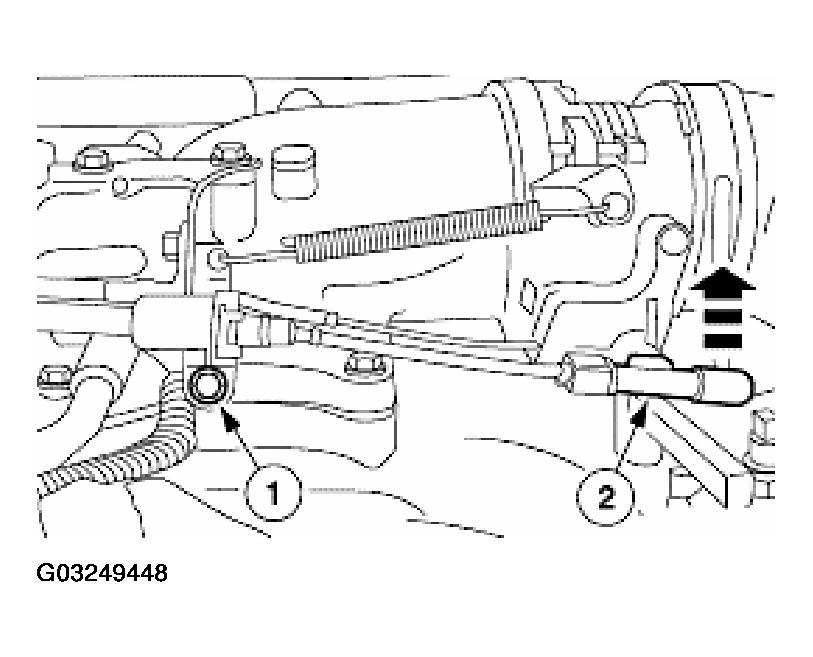

Fig 2: Positioning Aside Speed Control Actuator Cable
Courtesy of FORD MOTOR CO.
Depress the locking tab and rotate the speed control actuator cable cap to remove.

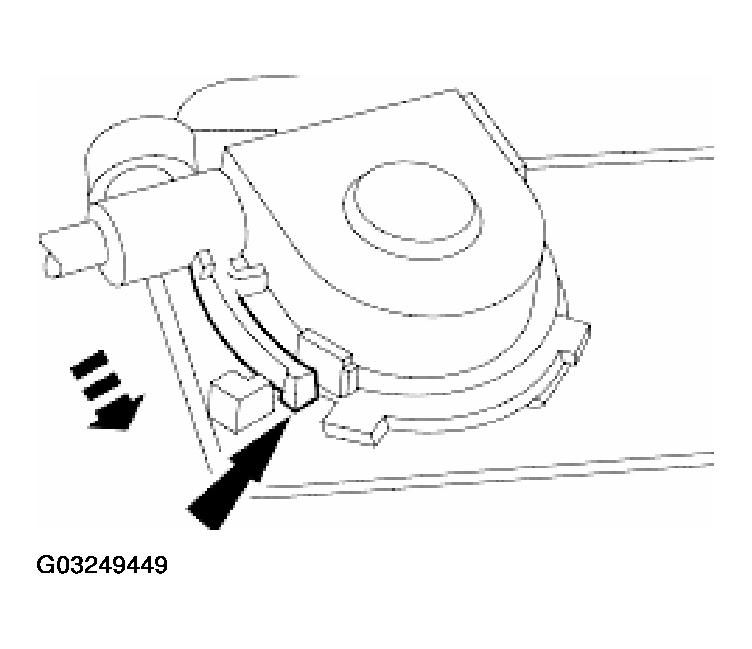

Fig 3: Removing Speed Control Actuator Cable Cap
Courtesy of FORD MOTOR CO.
Disconnect the speed control actuator cable from the speed control servo pulley.
1. Gently push the retaining spring.
2. Disconnect the speed control actuator cable slug from the speed control servo pulley.

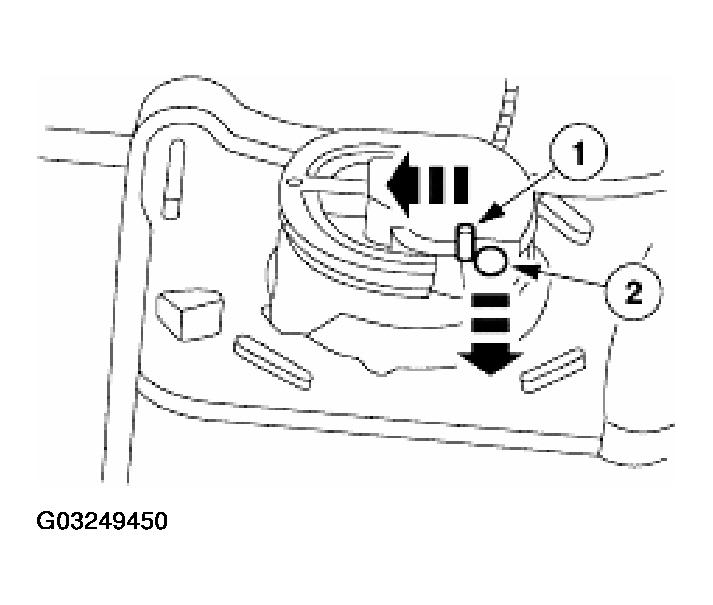

Fig 4: Disconnecting Speed Control Actuator Cable From Speed Control Servo Pulley
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

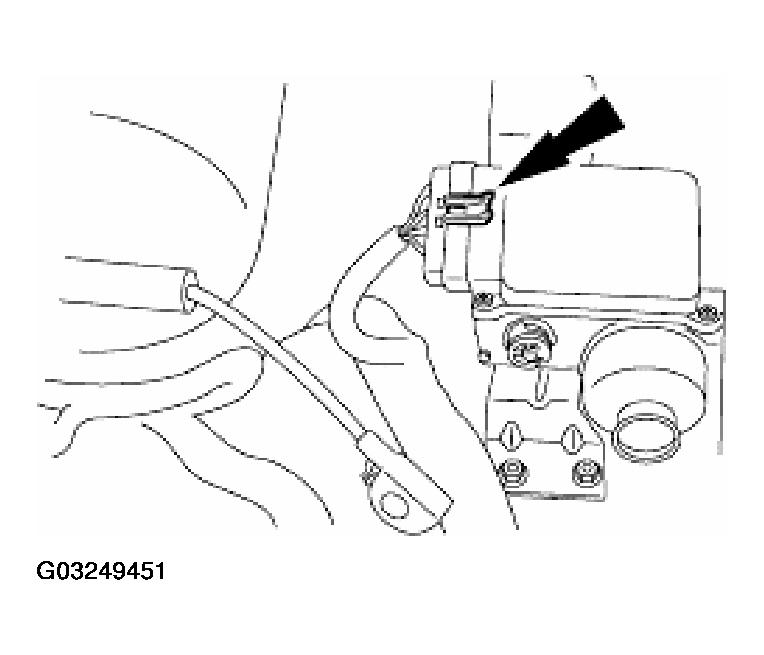

Fig 5: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the speed control servo.
1. Remove the nuts.
2. Remove the speed control servo.

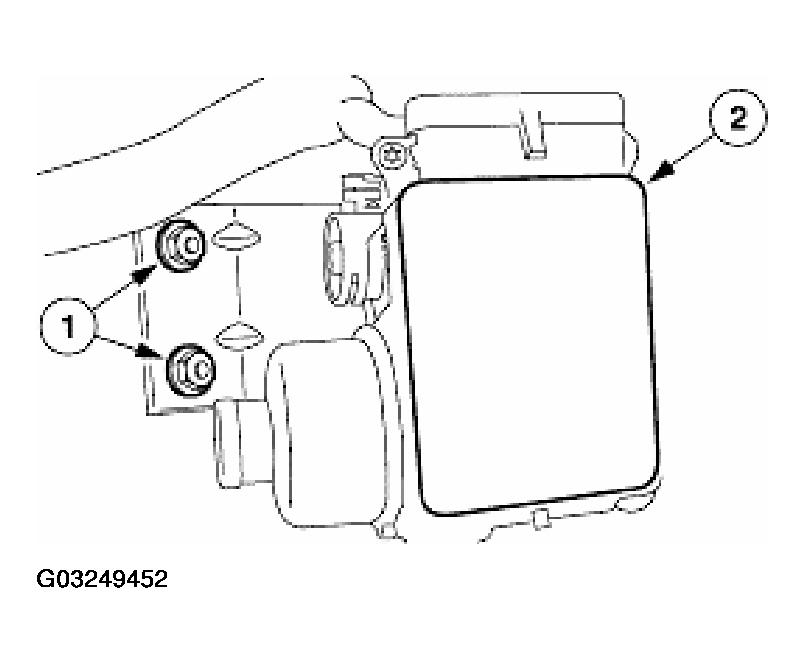

Fig 6: Removing Speed Control Servo
Courtesy of FORD MOTOR CO.
Separate the speed control servo from the bracket.
1. Remove the screws.
2. Remove the bracket.

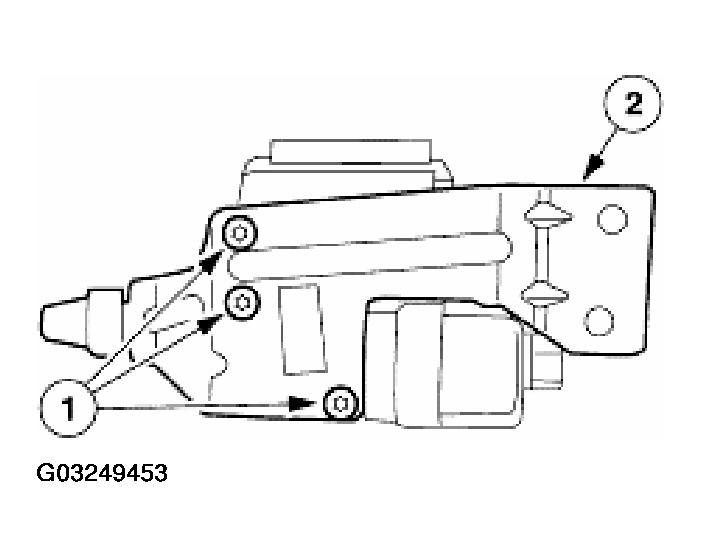

Fig 7: Removing Bracket From Speed Control Servo
Courtesy of FORD MOTOR CO.
