Master window adjust switch (14540)
WARNING:
This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

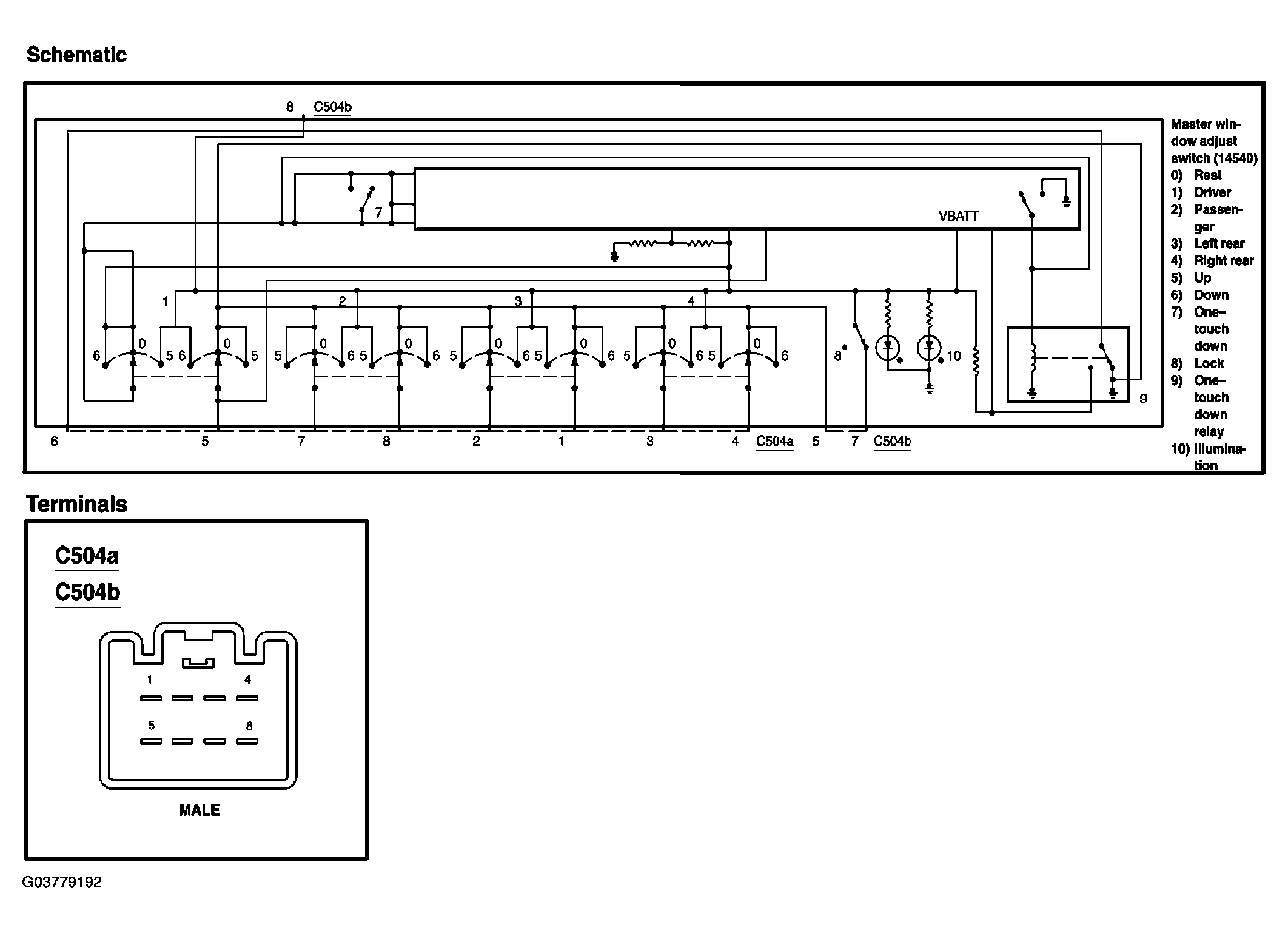

Fig 1: Testing Master Window Adjust Switch (14540) (1 Of 2)
Courtesy of FORD MOTOR CO.

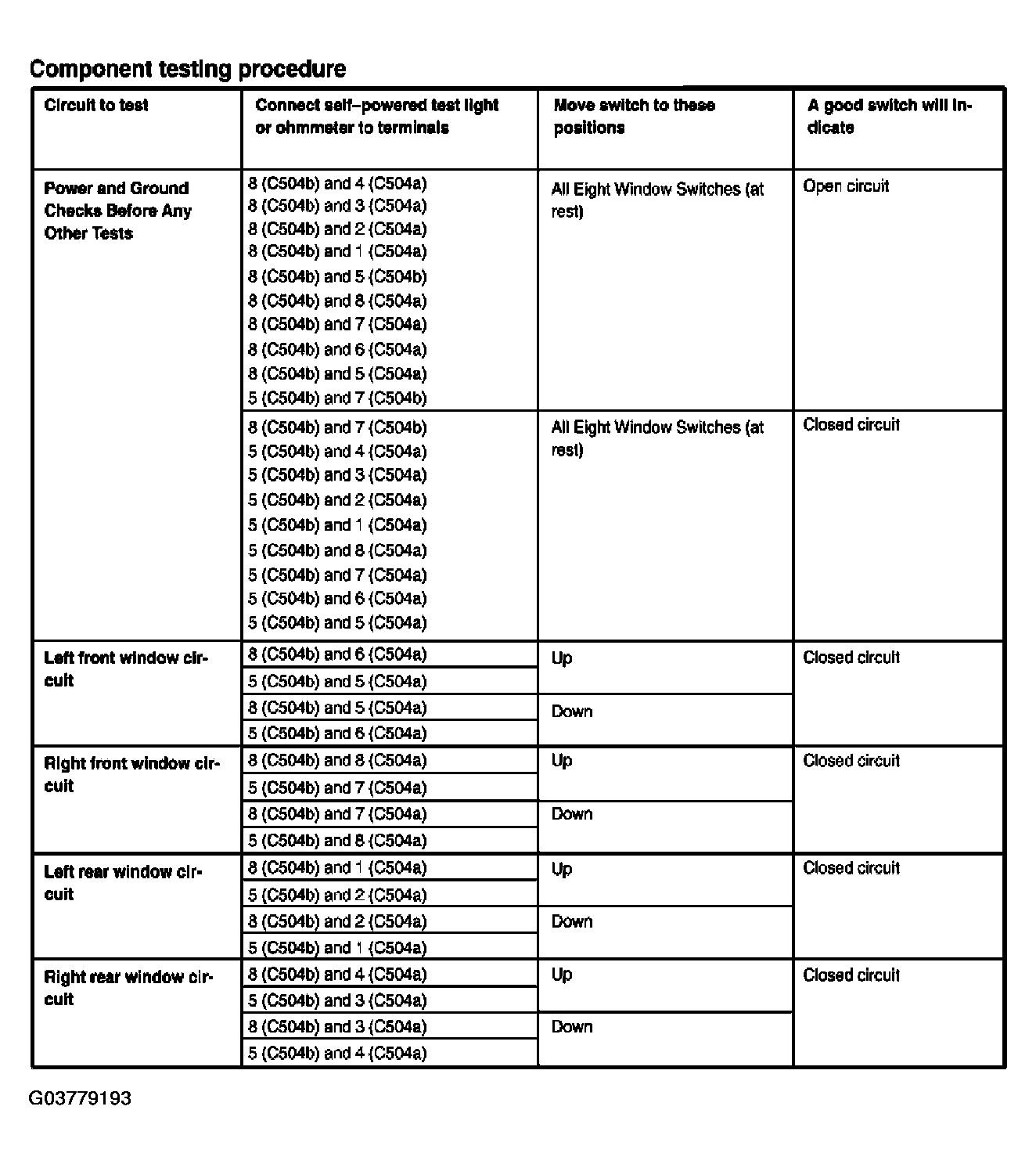

Fig 2: Testing Master Window Adjust Switch (14540) (2 Of 2)
Courtesy of FORD MOTOR CO.
