Tire Pressure Sensor

CAUTION: Make sure to install a new sensor grommet or an air leak can occur.
NOTE: Do not remove the valve stem core to relieve the tire pressure.
  1. Remove the wheel and tire assembly. For additional information, refer to WHEEL AND TIRE - Front  or WHEEL AND TIRE - Rear .
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

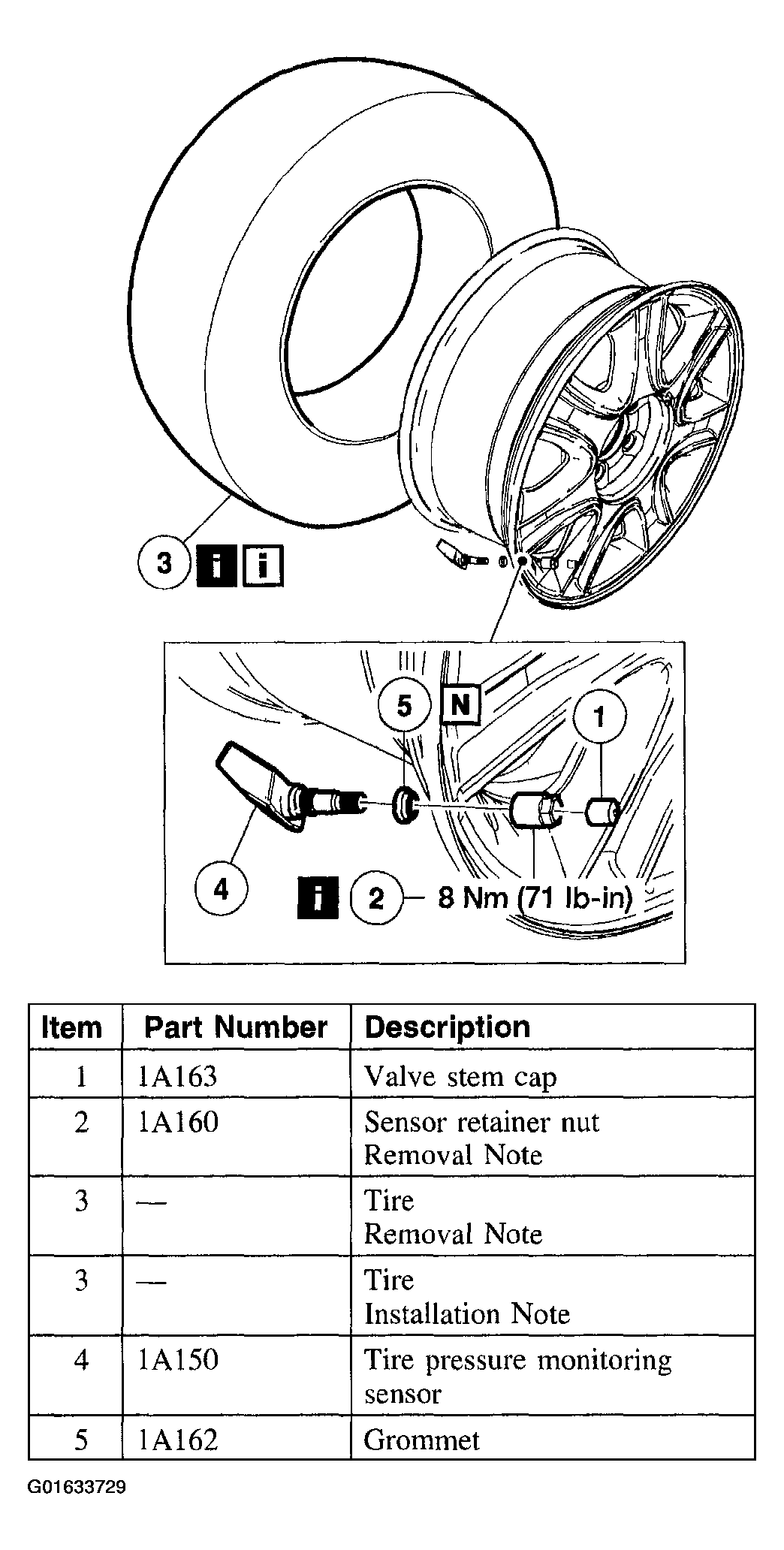

    Fig 1: Removal And Installation Of Tire Pressure Sensor
    G01633729Courtesy of FORD MOTOR CO.
  4. Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING .
  5. Inflate the tire to the pressure specified on the safety certification sticker located on the driver door jamb.

Item 2: Sensor Retainer Nut Removal Note

    CAUTION: If the valve stem core has been removed from the valve stem, a new nickel-plated core must be installed. Failure to use a nickel-plated core will result in corrosion and the possible loss of tire pressure.
    NOTE: Release the tire pressure by removing the sensor retaining nut.
    Fig 2: Identifying Tire Pressure Sensor Retaining Nut
    G01633730Courtesy of FORD MOTOR CO.
  1. With the valve stem at the 6 o'clock position, remove the sensor retaining nut and allow the sensor to fall into the tire.

Item 3: Tire Removal Note

    CAUTION: Make sure that the valve stem mounting hole remains in the 6 o'clock position while separating the beads of the tire.

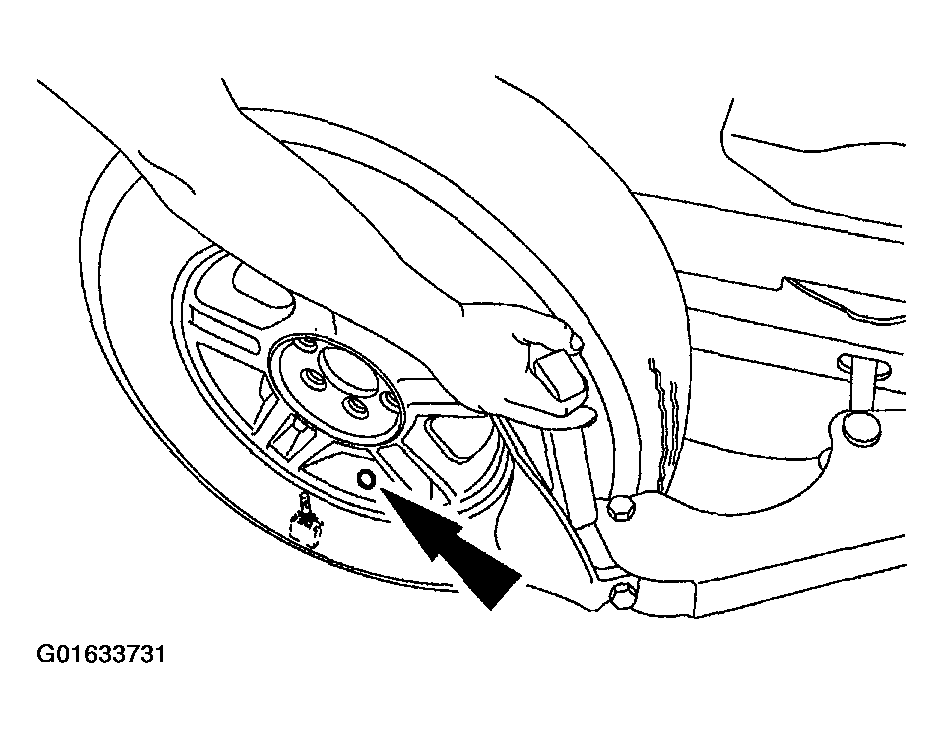

    Fig 3: Removing Beads Of Tire From Wheel
    G01633731Courtesy of FORD MOTOR CO.
  1. Using a suitable tire machine, separate both beads of the tire from the wheel.
  2. Place the wheel and tire on the turntable of the tire machine so that the valve stem hole is positioned 270 degrees from the mounting/dismounting fixture.
    • Index-mark the valve stem and wheel weight positions.
    • Lubricate the bead of the tire.
    • Dismount the outside bead of the tire from the rim.

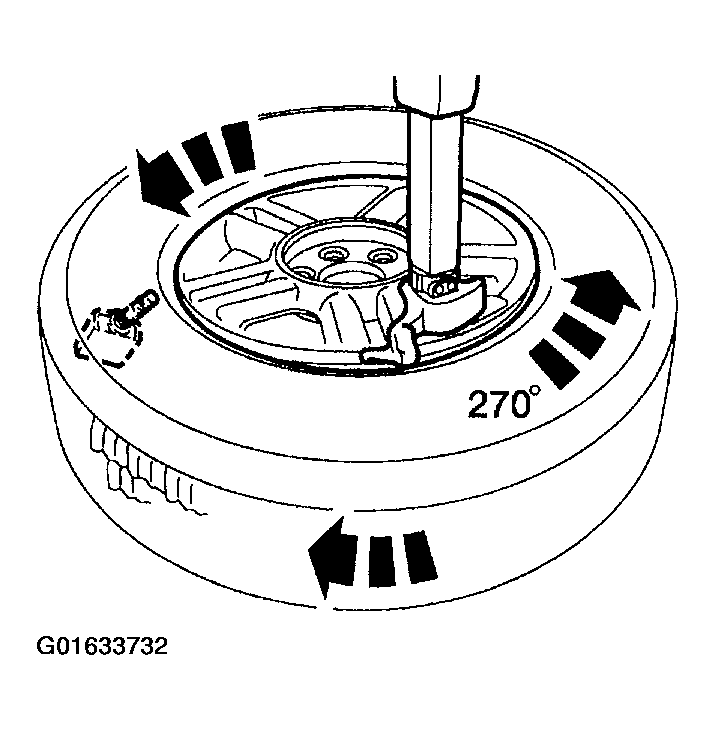

    Fig 4: Positioning Valve Stem Hole 270 Degrees From Mounting/Dismounting Fixture
    G01633732Courtesy of FORD MOTOR CO.

Item 3: Tire Installation Note

    NOTE: Do not allow the tire to rotate relative to the rim while mounting the tire.

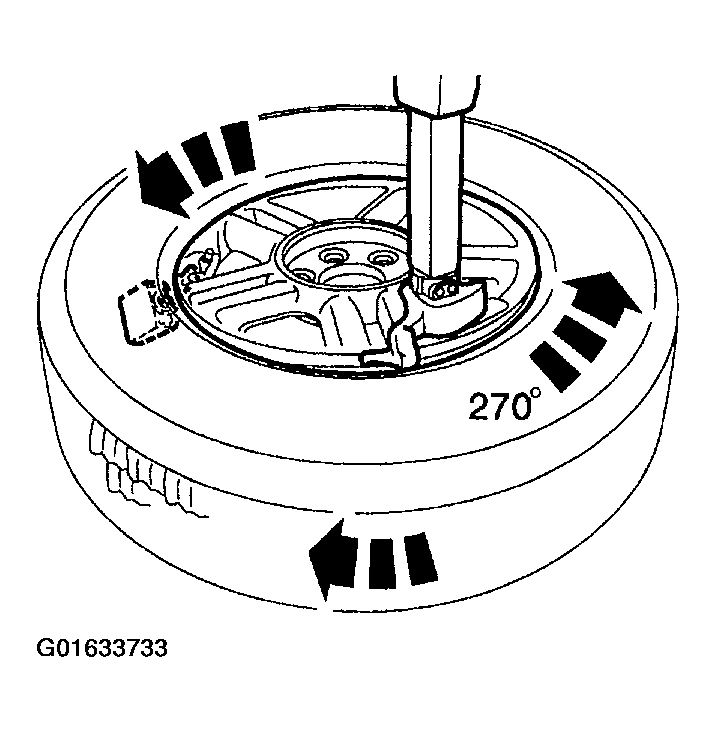

    Fig 5: Mounting Tire
    G01633733Courtesy of FORD MOTOR CO.
  1. Lubricate and mount the outside bead of the tire to the rim.
