Acceleration Control System - BLACKWOOD & F150 Pickup
>>
Diagnosis And Testing
>>
Acceleration Control
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart

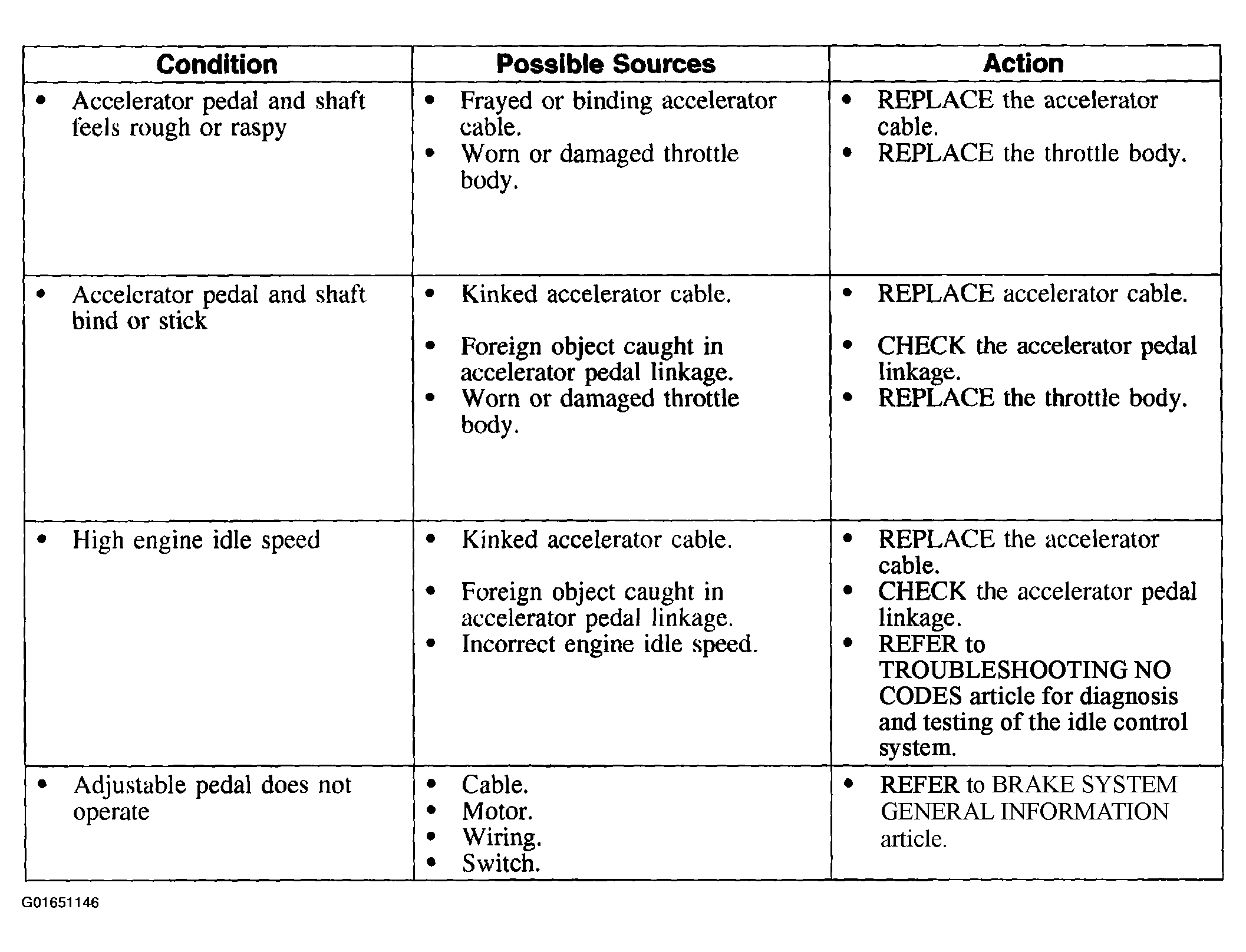

Fig 1: Acceleration Control Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

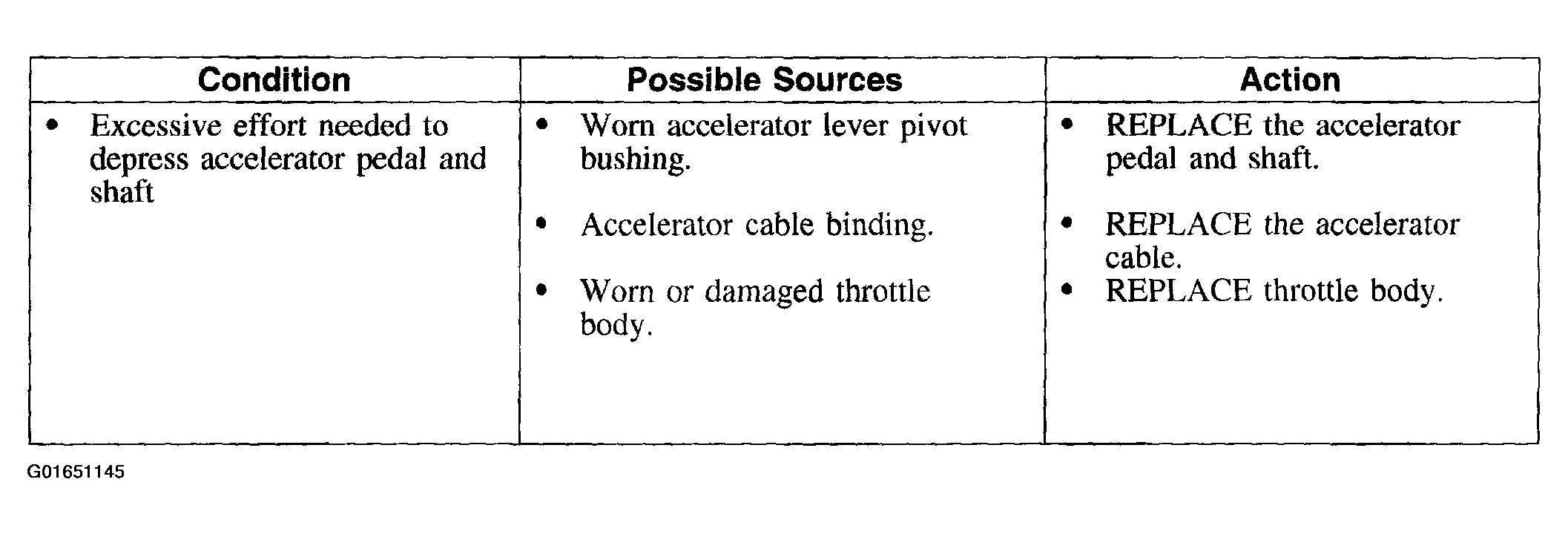

Fig 2: Acceleration Control Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
