Checking Procedure

To calculate ride height, measure and record dimension "C". See Fig 1 , Fig 2 and Fig 3 . See RIDE HEIGHT SPECIFICATIONS table. If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.

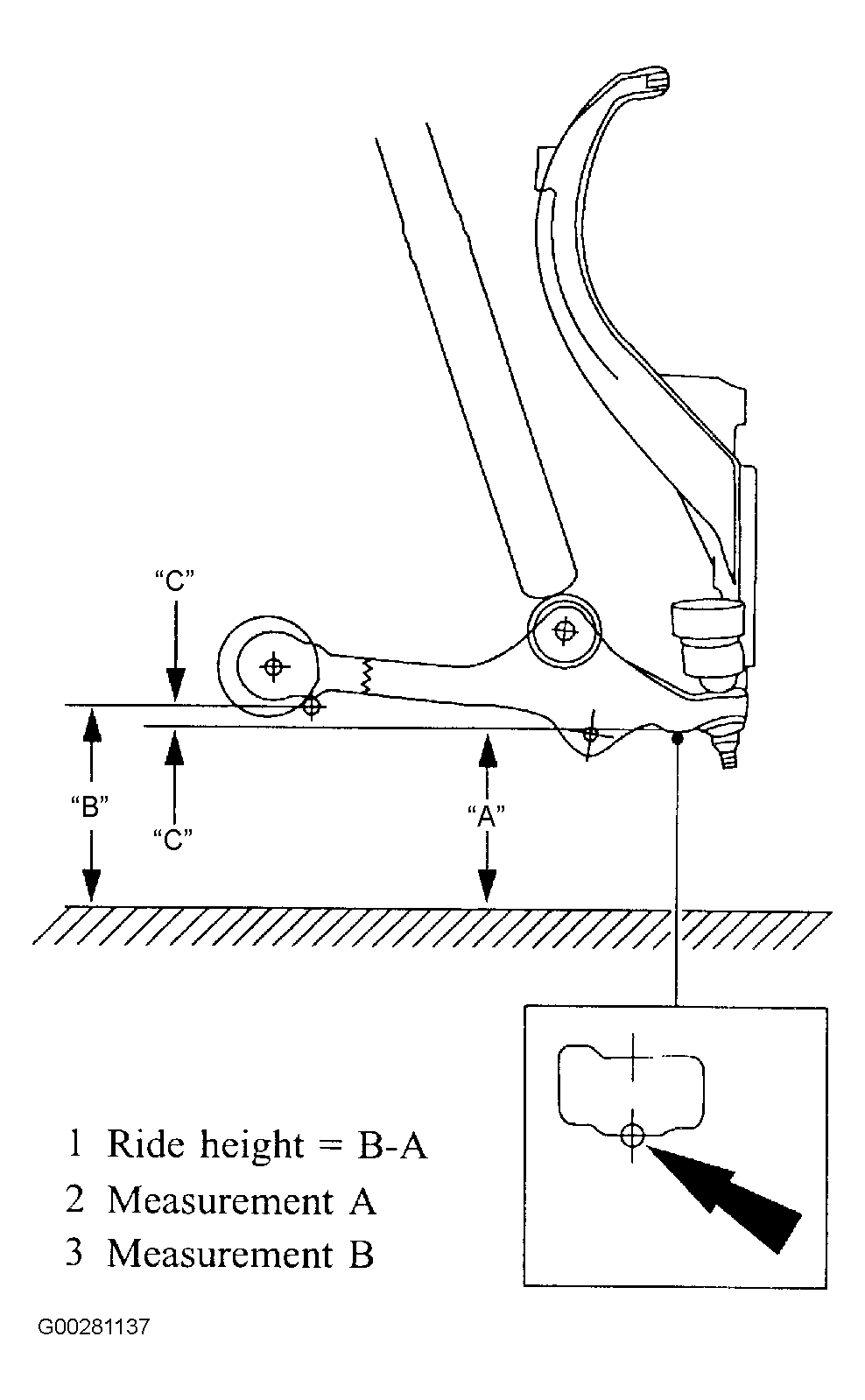

Fig 1: Front Ride Height Measurement (2002)

Courtesy of FORD MOTOR CO.

Fig 2: Front Ride Height Measurement (2003-04)

Courtesy of FORD MOTOR CO.

Fig 3: Rear Ride Height Measurement

Courtesy of FORD MOTOR CO.

RIDE HEIGHT SPECIFICATIONS

Application

⁽¹⁾ In. (mm)

2002

Front

2.1-2.7 (53-69)

Rear

0.7-1.3 (28-34)

2003 & 2004

Front

1.0-1.7 (27-43)

Rear

0.4-1.0 (11-27)

⁽¹⁾	See procedures for measurement calculations/points.
