Item 7: Heated Oxygen Sensor Connector Retainer Installation Note

  1. Install the heated oxygen sensor connector to the front of the transmission pan rail.

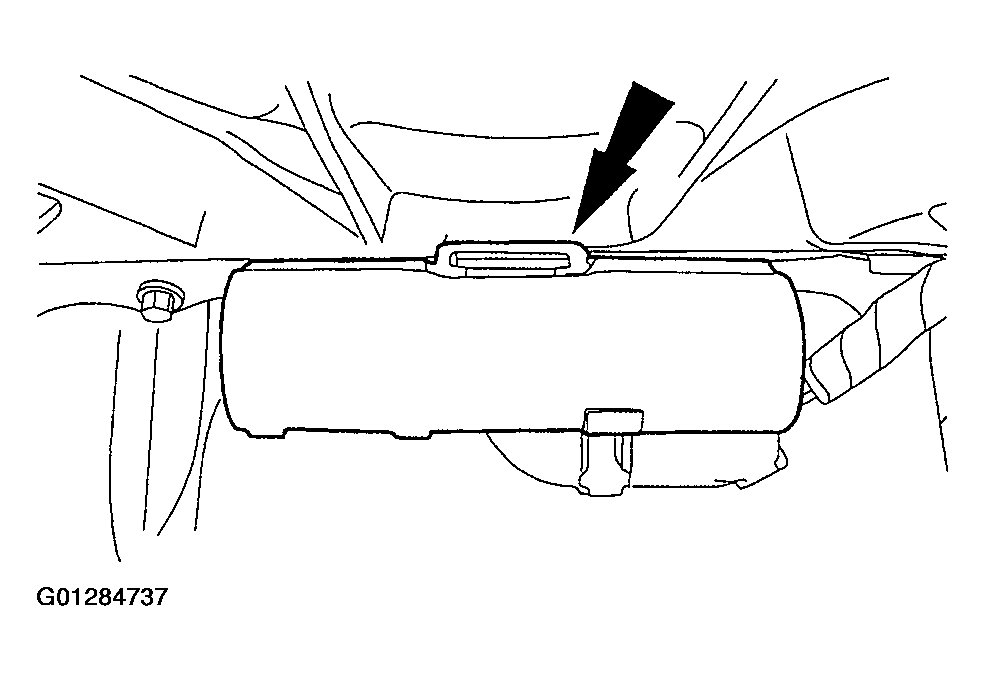

    Fig 1: Installing Heated Oxygen Sensor Connector To Front Of Transmission Pan Rail
    G01284737Courtesy of FORD MOTOR CO.
  2. Connect the heated oxygen sensor connector and install the sensor wire retaining clip to the right side of the transmission pan rail.

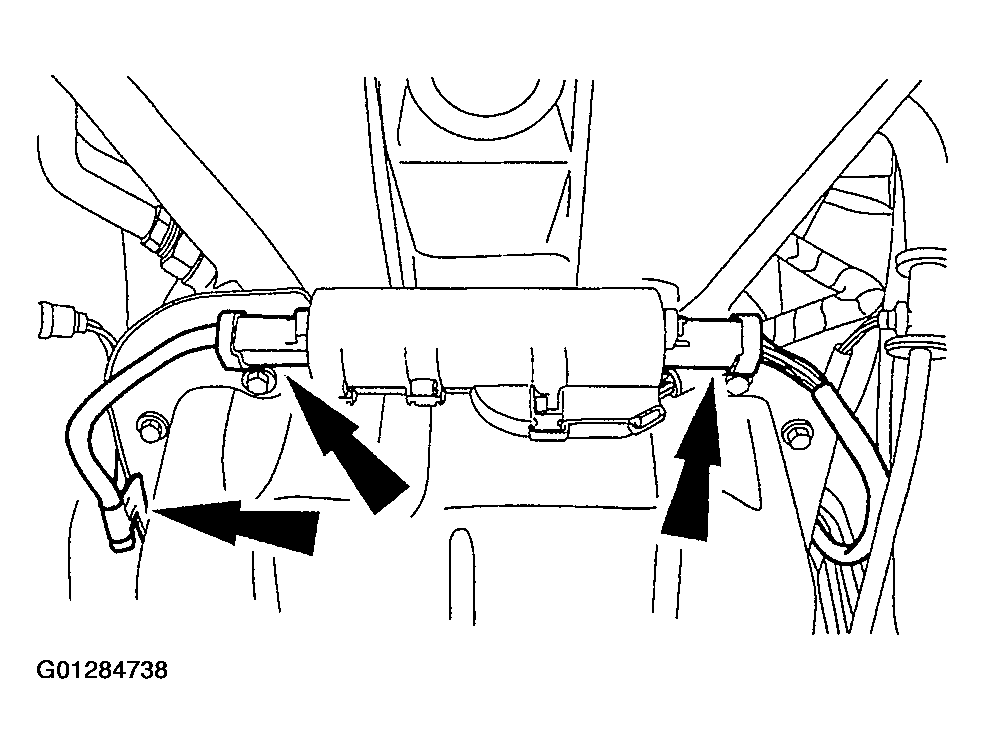

    Fig 2: Installing Sensor Wire Retaining Clip To Right Side Of Transmission Pan Rail
    G01284738Courtesy of FORD MOTOR CO.
