Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION SENSOR

REMOVAL
1. Disconnect the battery ground cable.

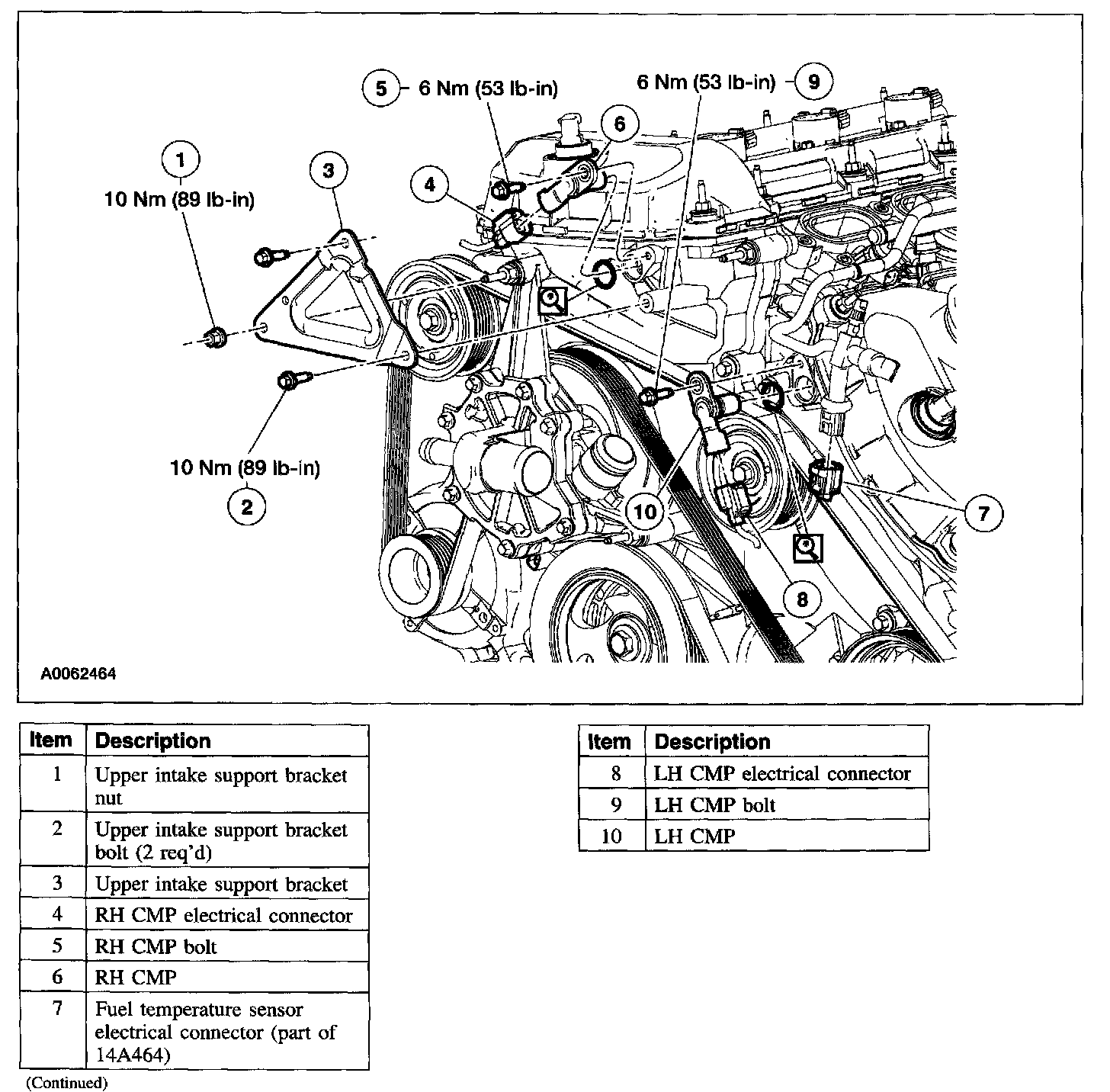

2. Remove the components in the order indicated in the illustration and table. To remove individual components, carry out only the listed steps.

INSTALLATION
1. To install, reverse the removal procedure.
