Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR

REMOVAL
1. Disconnect the battery ground cable.

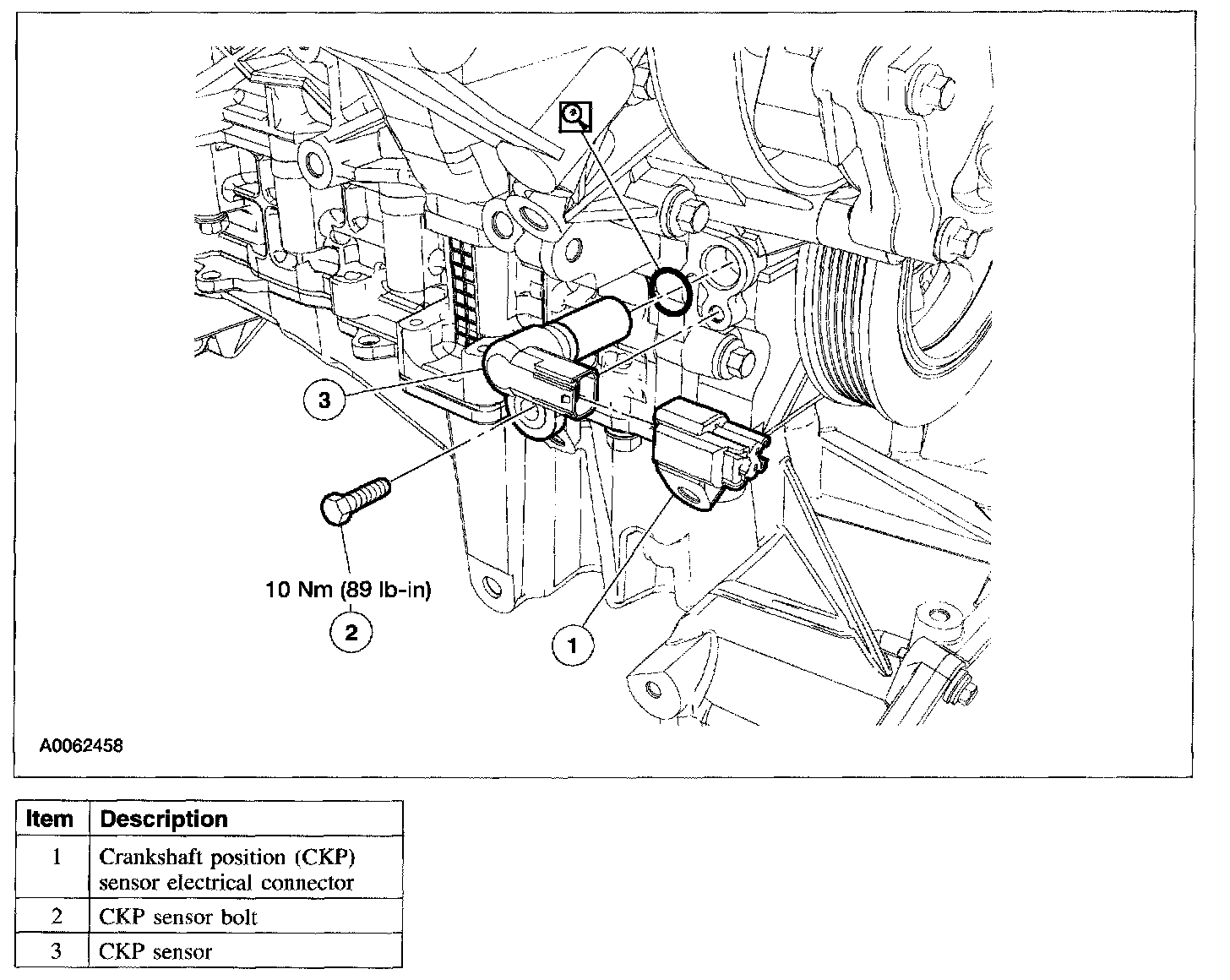

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
