RH

IGNITION COIL-ON-PLUG AND SPARK PLUG - RH

REMOVAL
1. Remove the upper intake manifold.

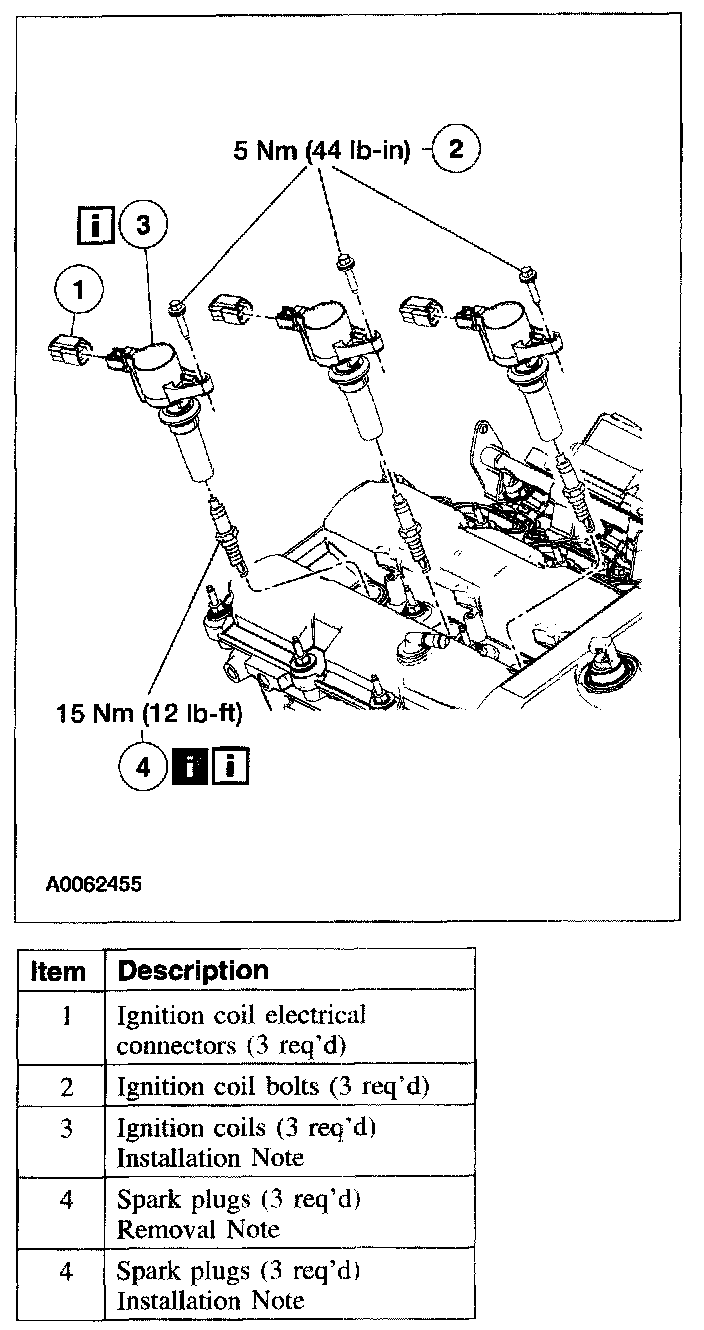

2. Remove the components in the order indicated in the illustration and table. To remove individual components only carry out the listed steps.

Item 4: Spark Plug Removal Note
1. Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: Spark Plug Installation Note







1. Inspect the spark plugs and adjust the spark plug gap as necessary.

Item 3: Ignition Coil Installation Note
1. Apply silicone dielectric compound to the inside of the ignition coil boots before installing.
