Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

REMOVAL
1. Remove the front door trim panel.

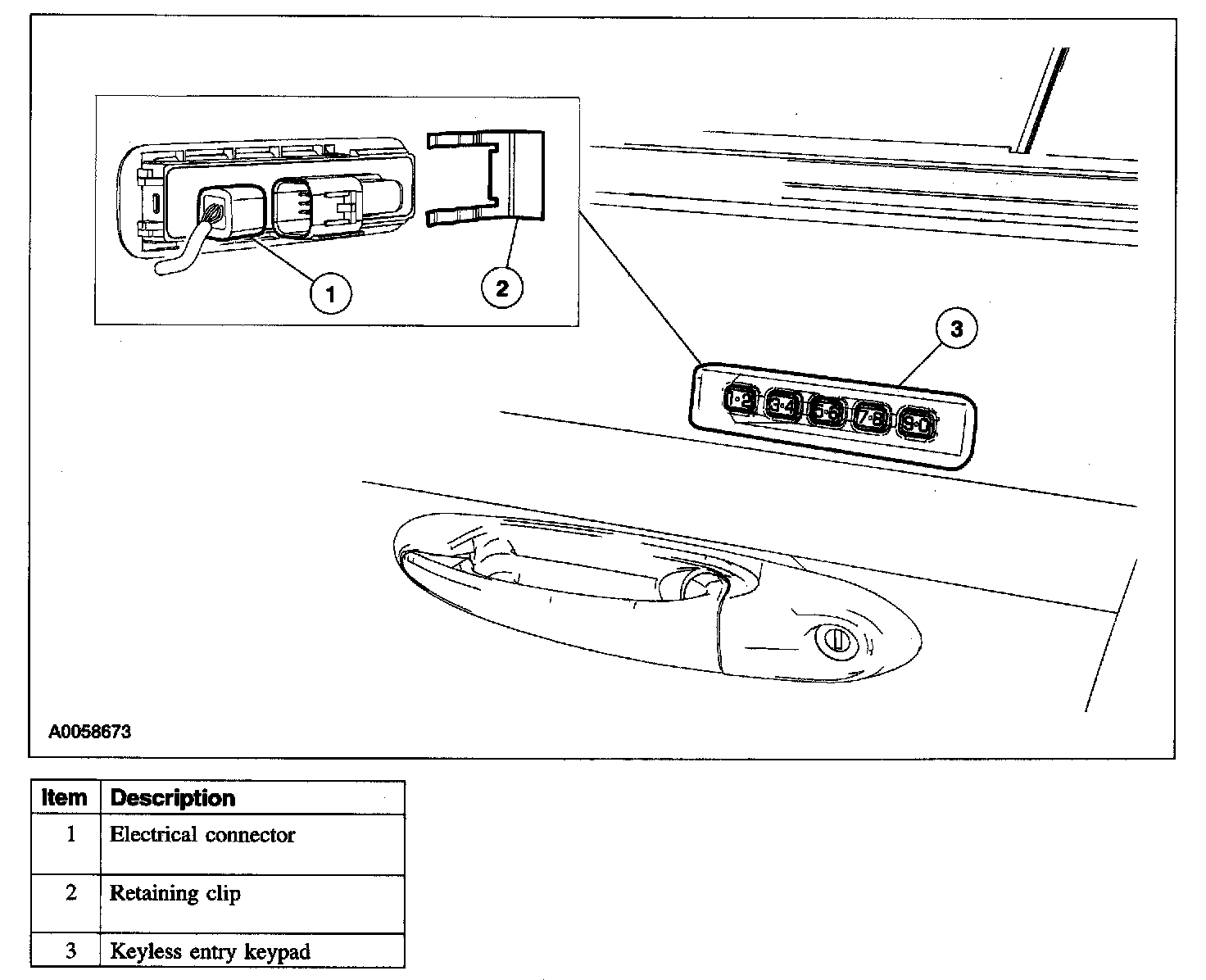

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
