Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH

REMOVAL

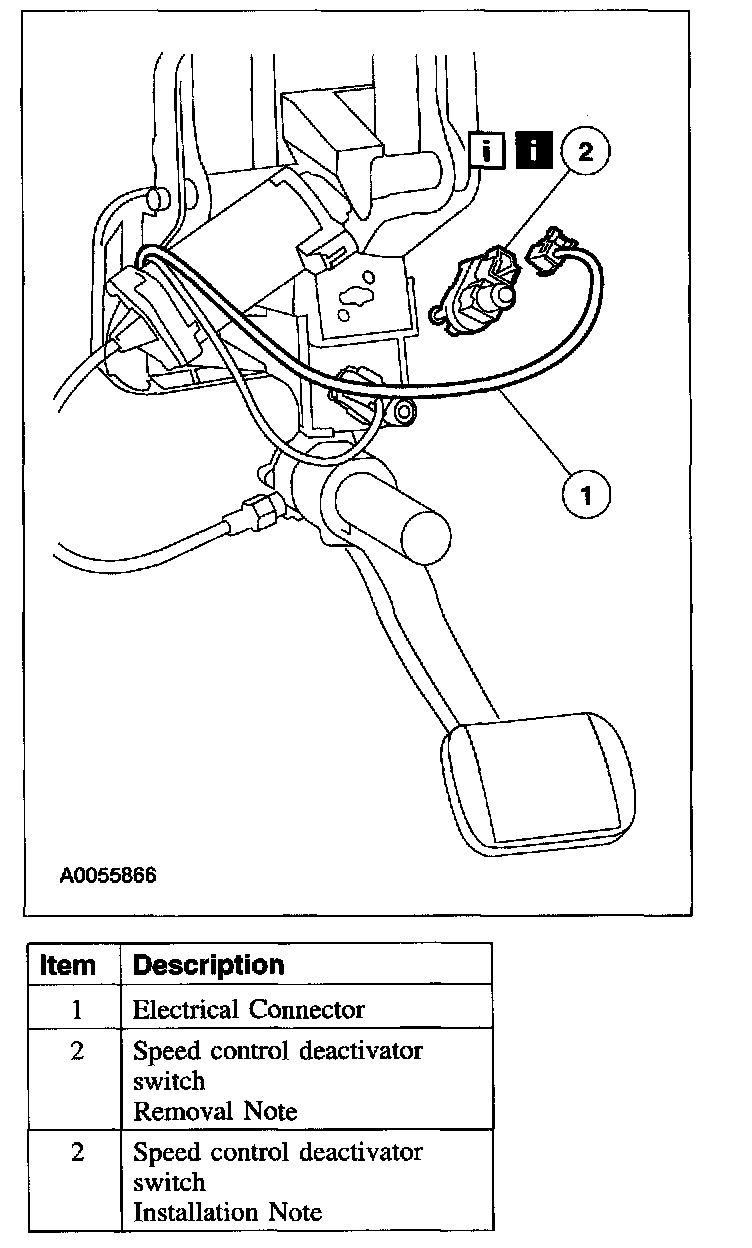

1. Remove the components in the order indicated in the illustration and table.

Item 2: Speed Control Deactivator Switch Removal Note







1. Rotate counterclockwise 45 degrees to remove the deactivator switch.

INSTALLATION
1. To install, reverse the removal procedure.

Item 2: Speed Control Deactivator Switch Installation Note







1. Press the brake pedal and position the deactivator switch in the bracket. Rotate clockwise 45 degrees to install the speed control deactivator switch.
