Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

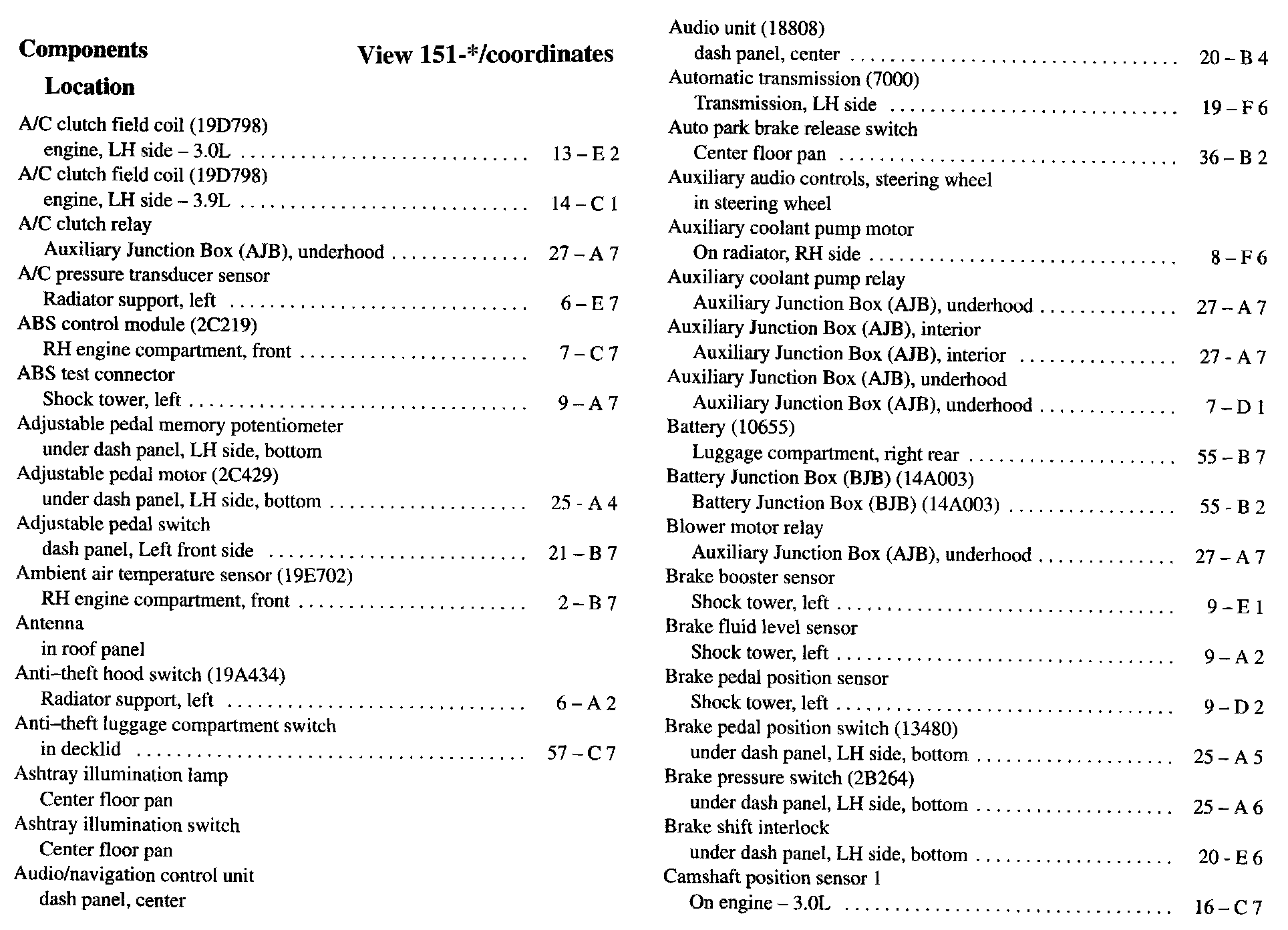

A/C - Ca:

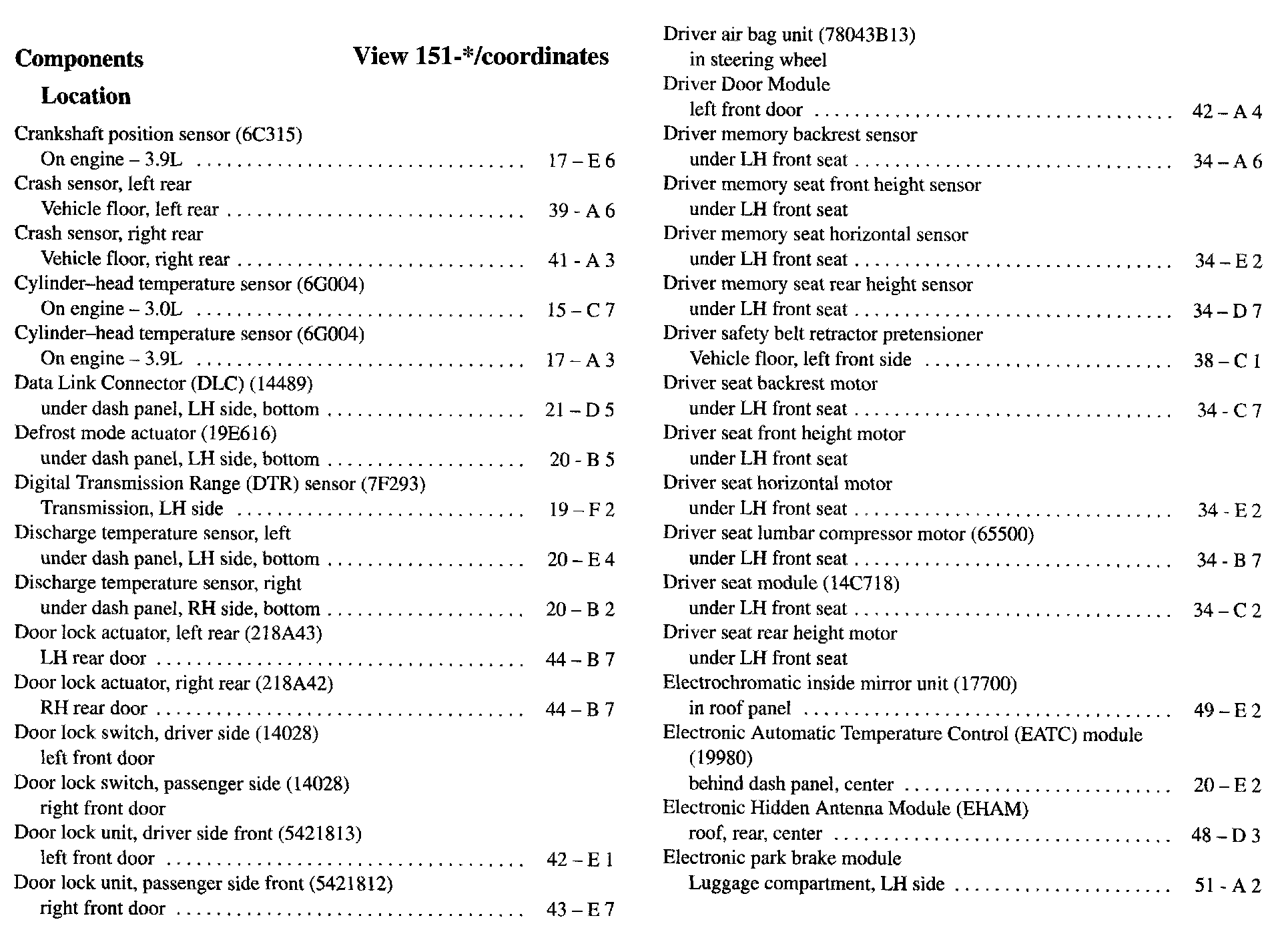

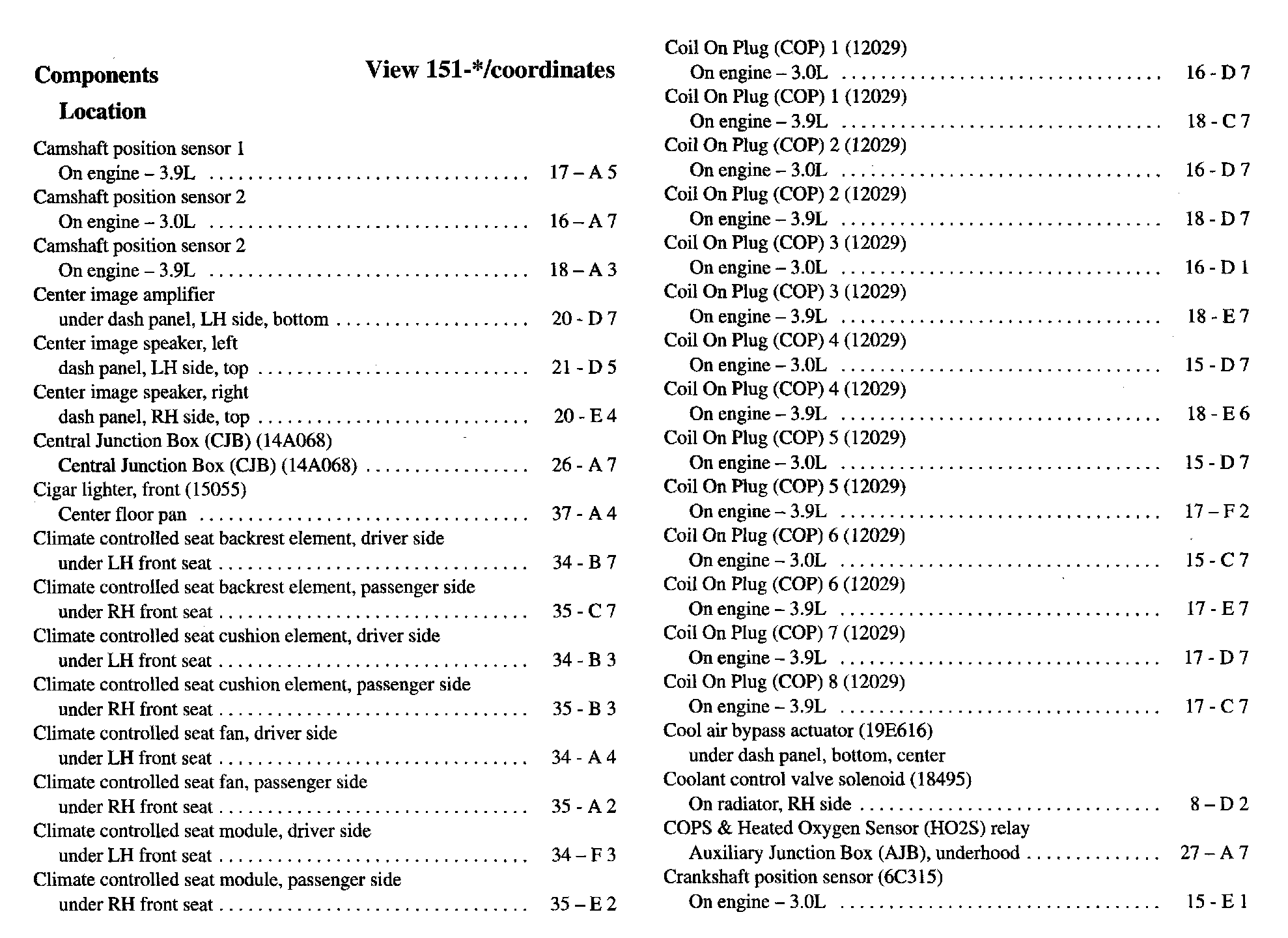

Ca - Cr:

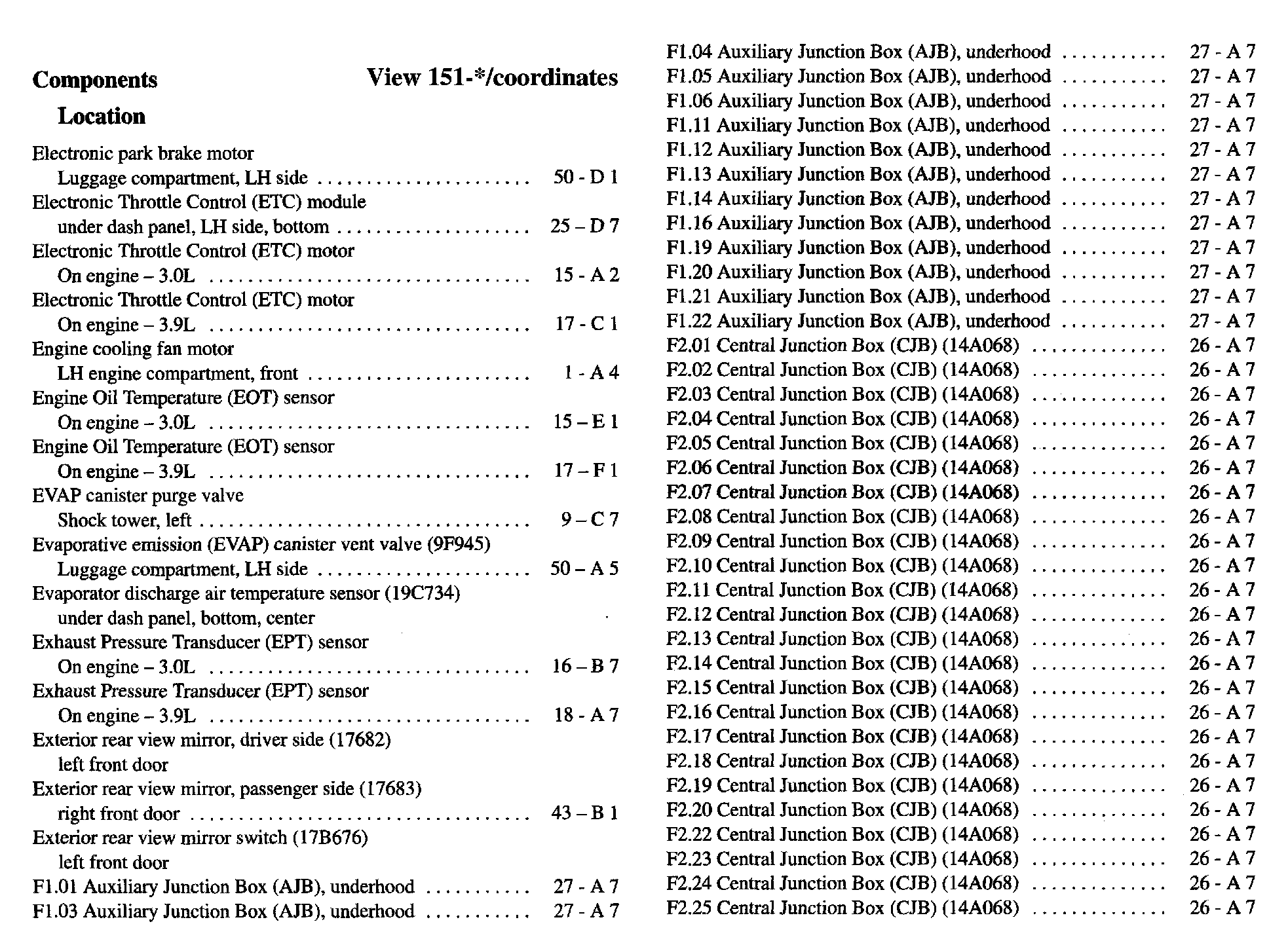

Cr - El:
El - F2.25:

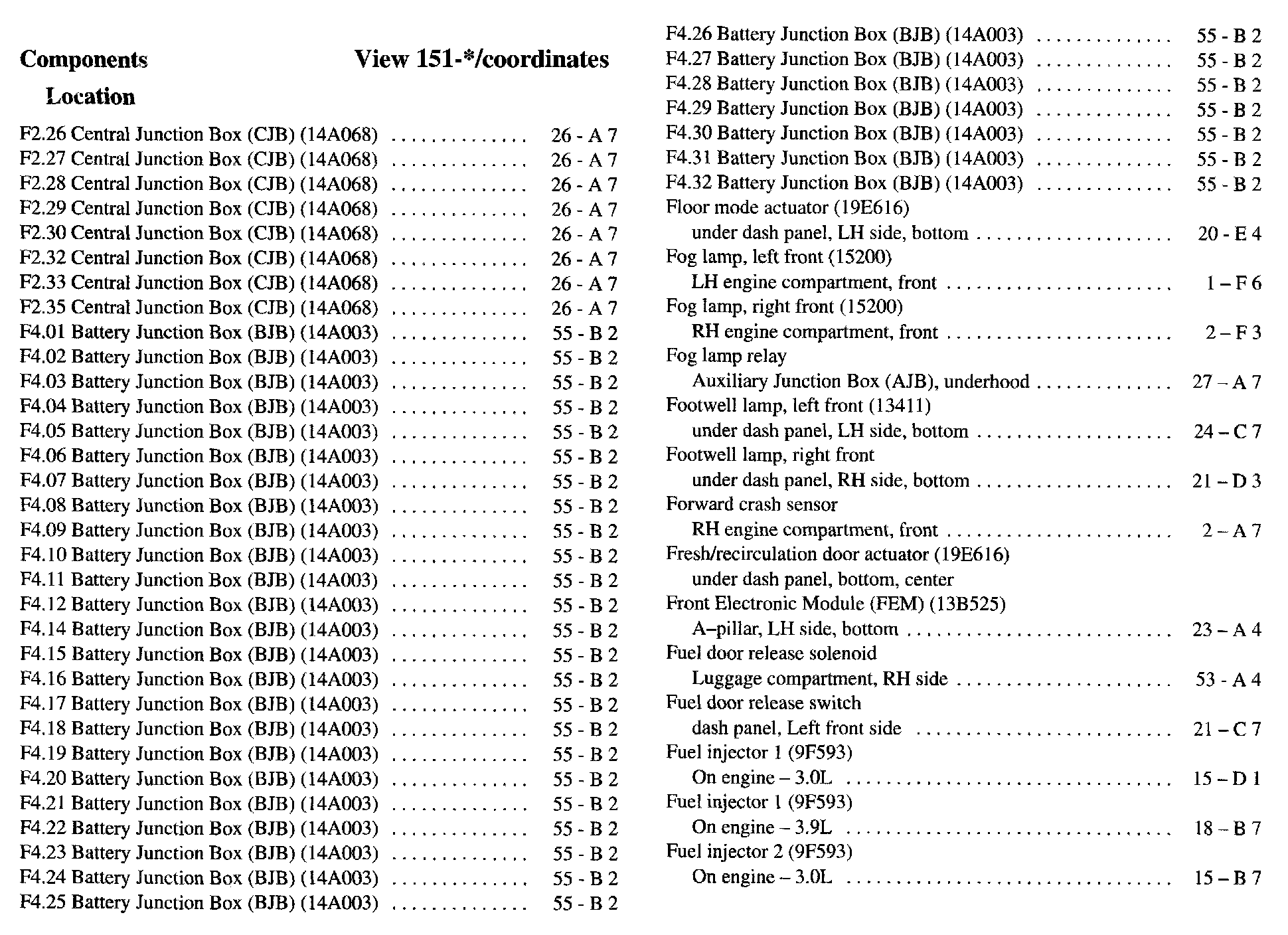

F2.26 - Fu:

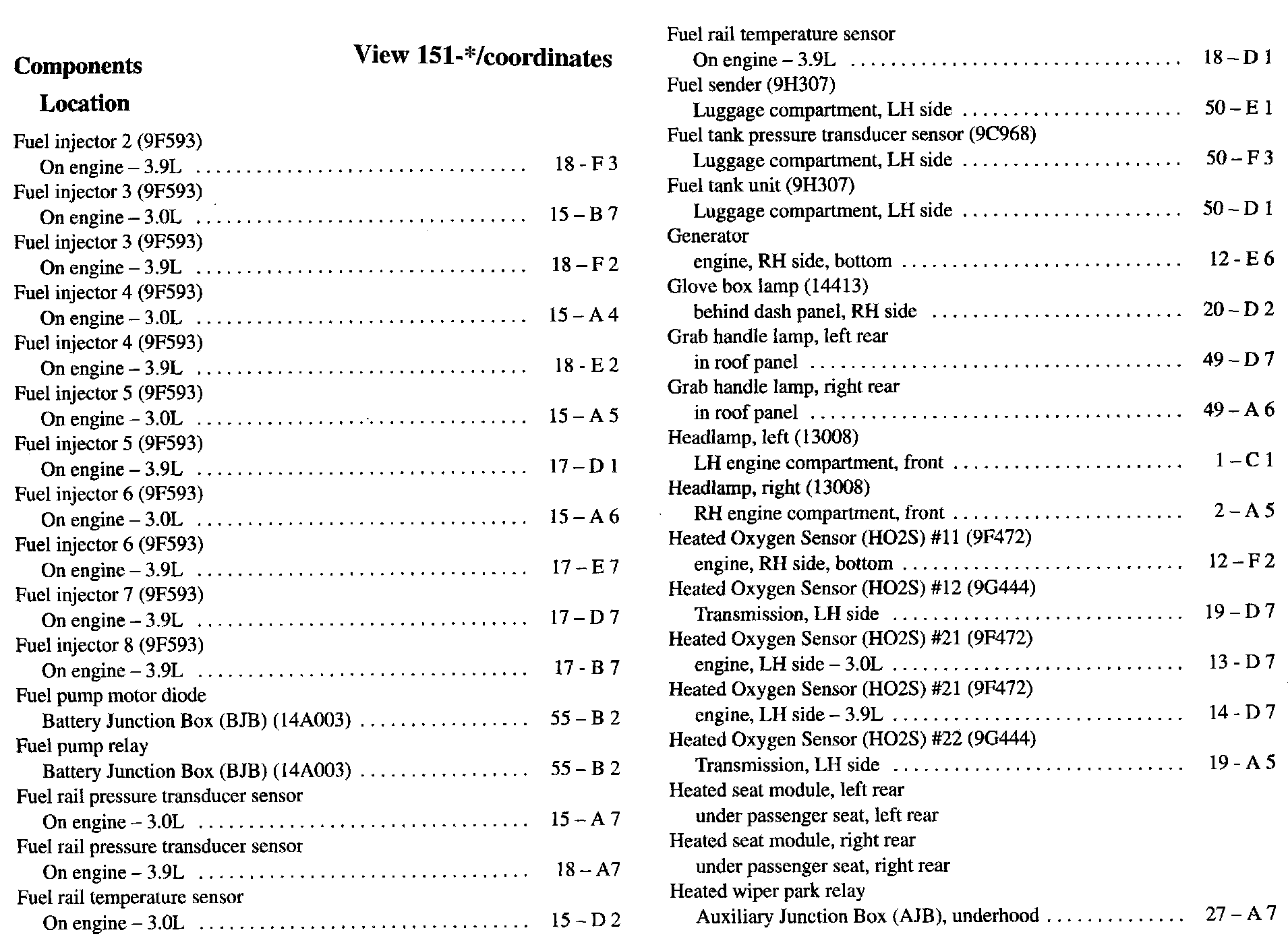

Fu - He:

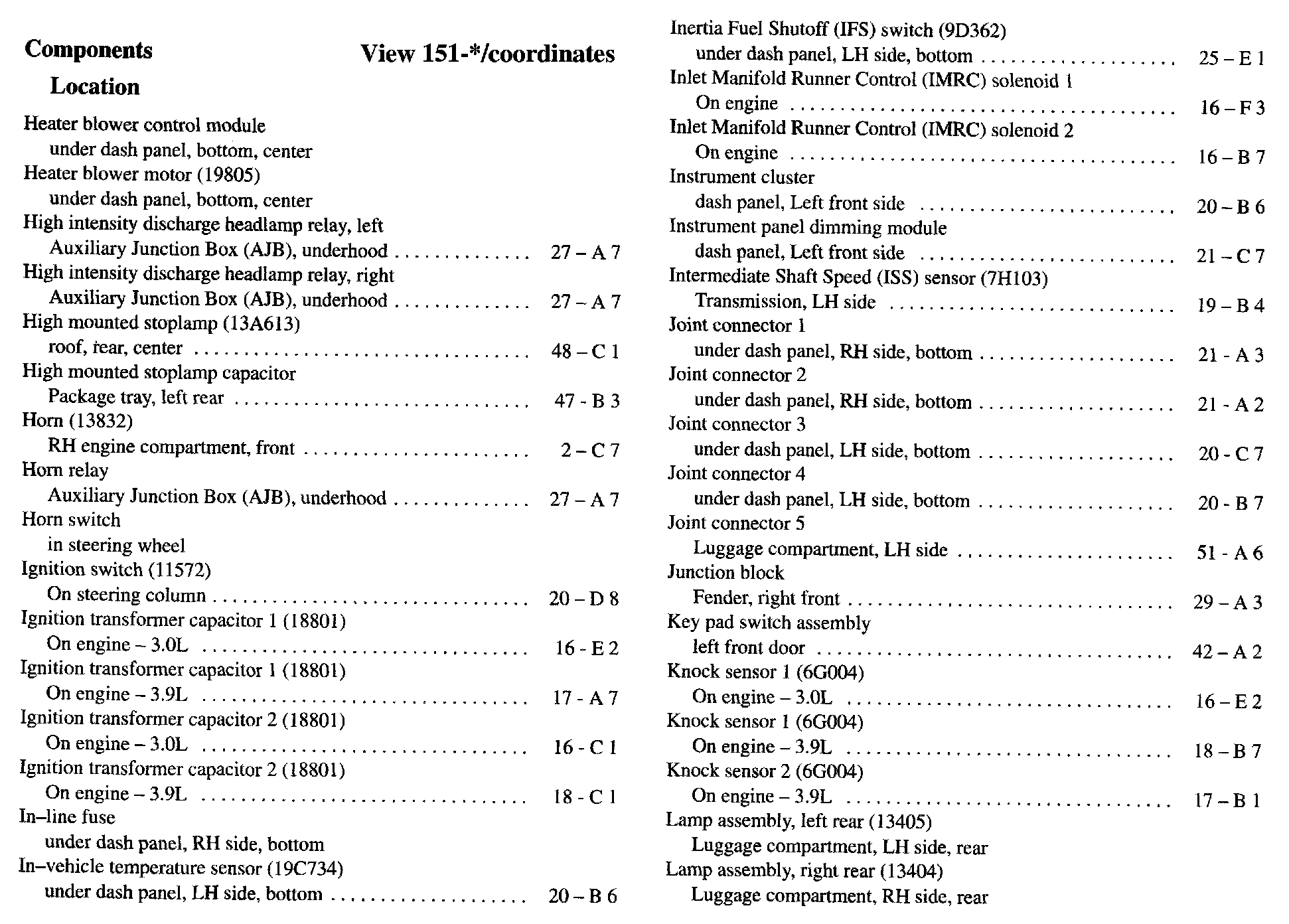

He - Lu:

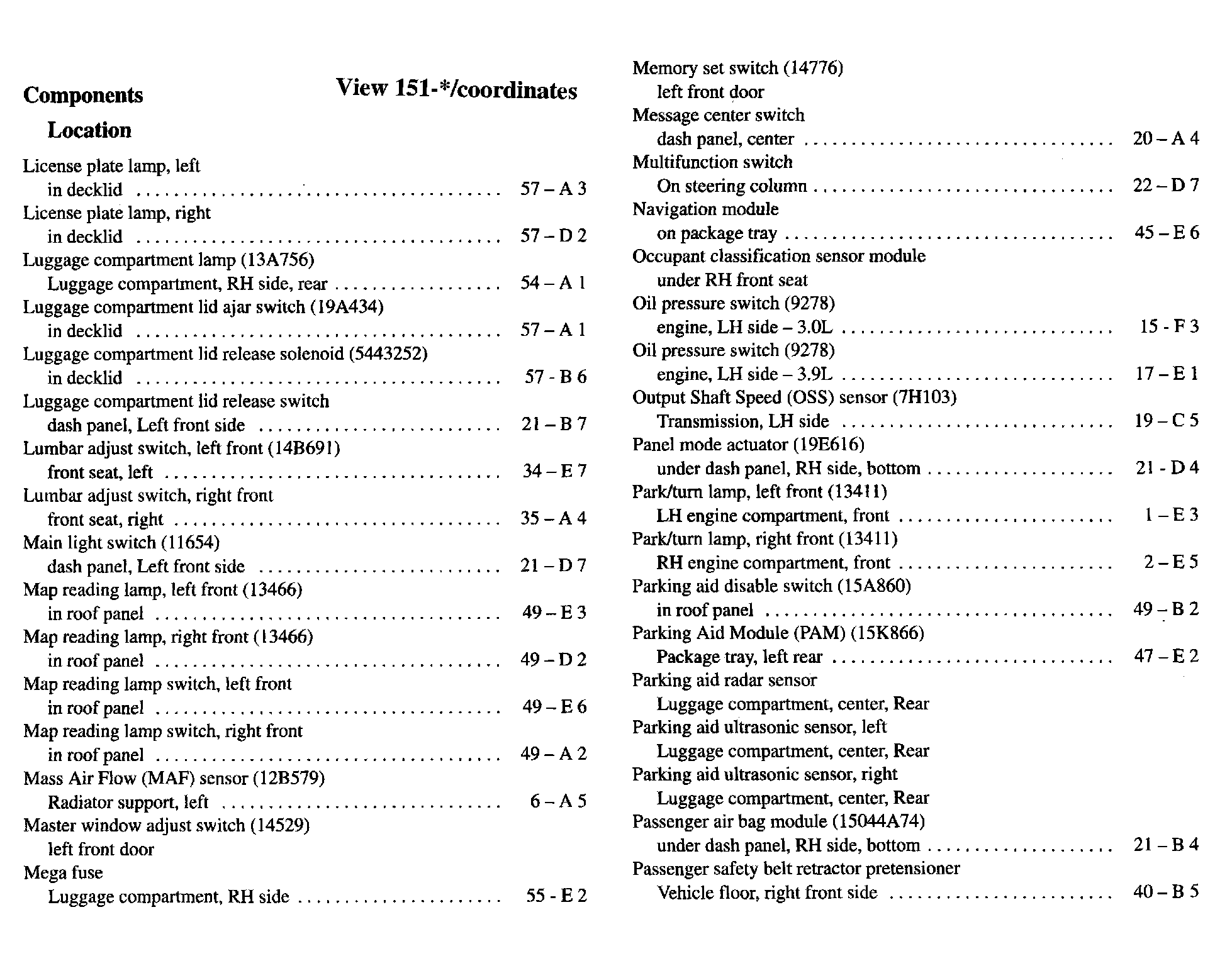

Li - Pa:

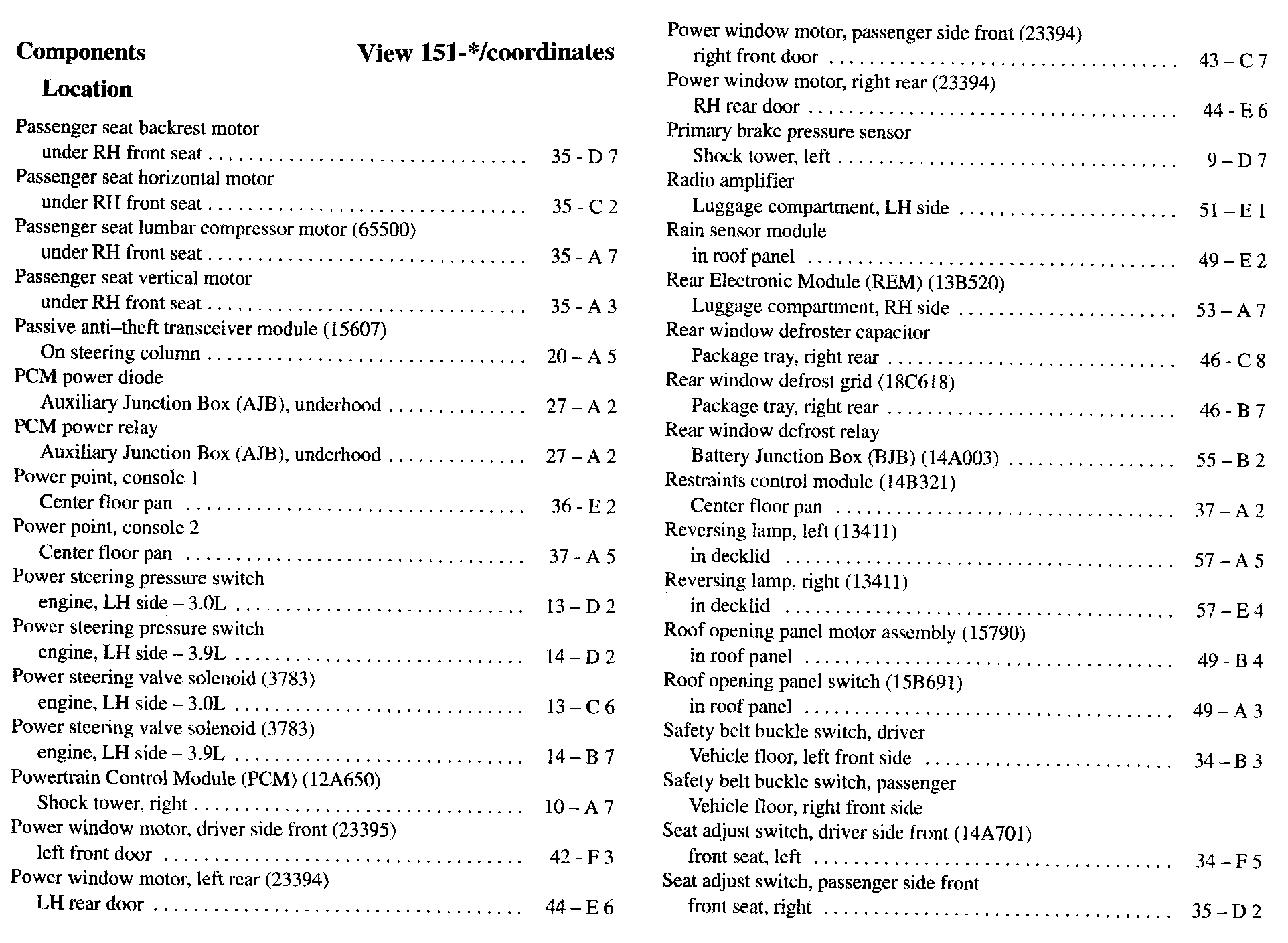

Pa - Se:

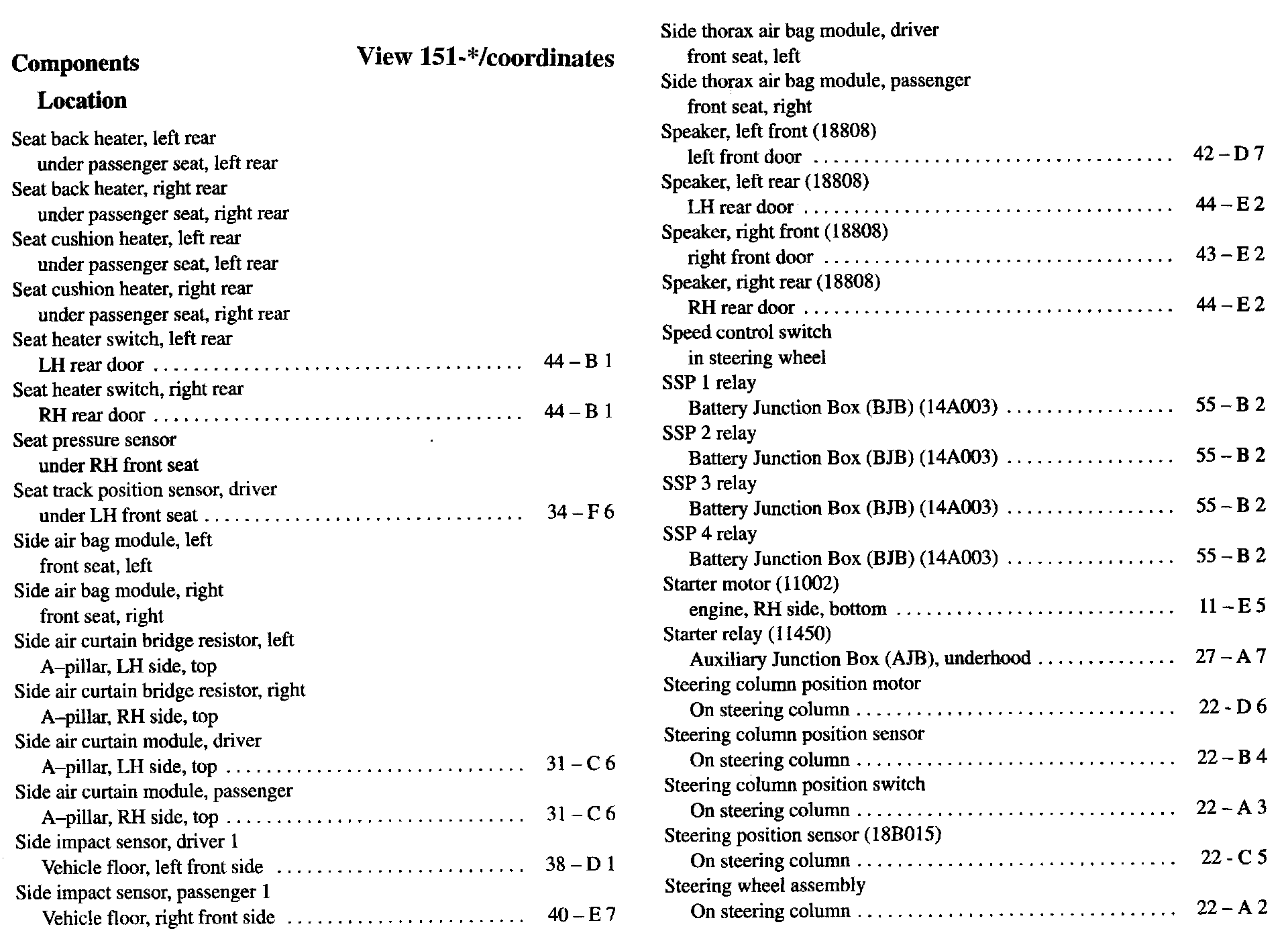

Se - St:

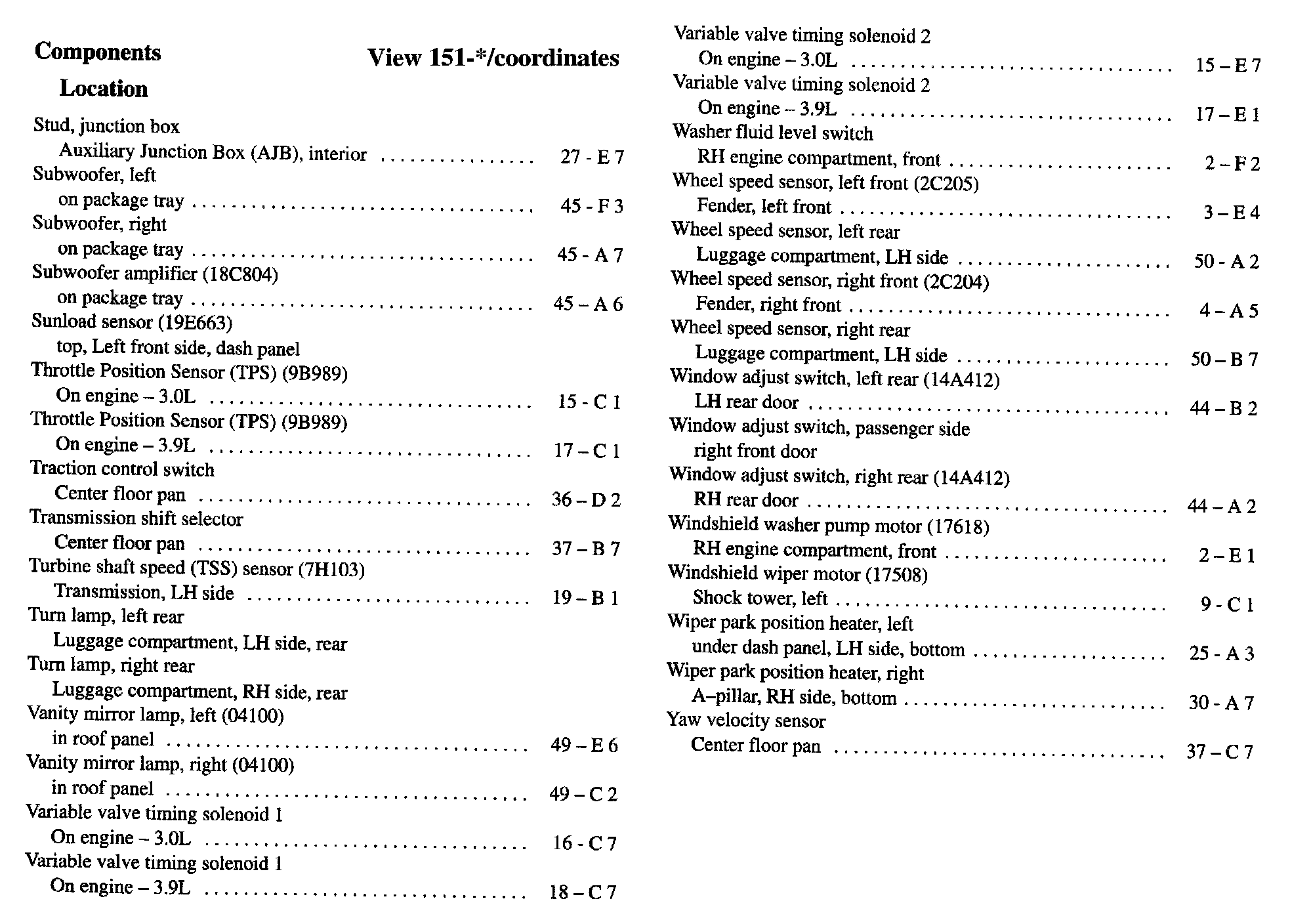

St - Ya:
