Variable Valve Timing Solenoid: Service and Repair

VARIABLE CAMSHAFT TIMING OIL CONTROL SOLENOID

REMOVAL
1. Remove the LH or RH valve cover.

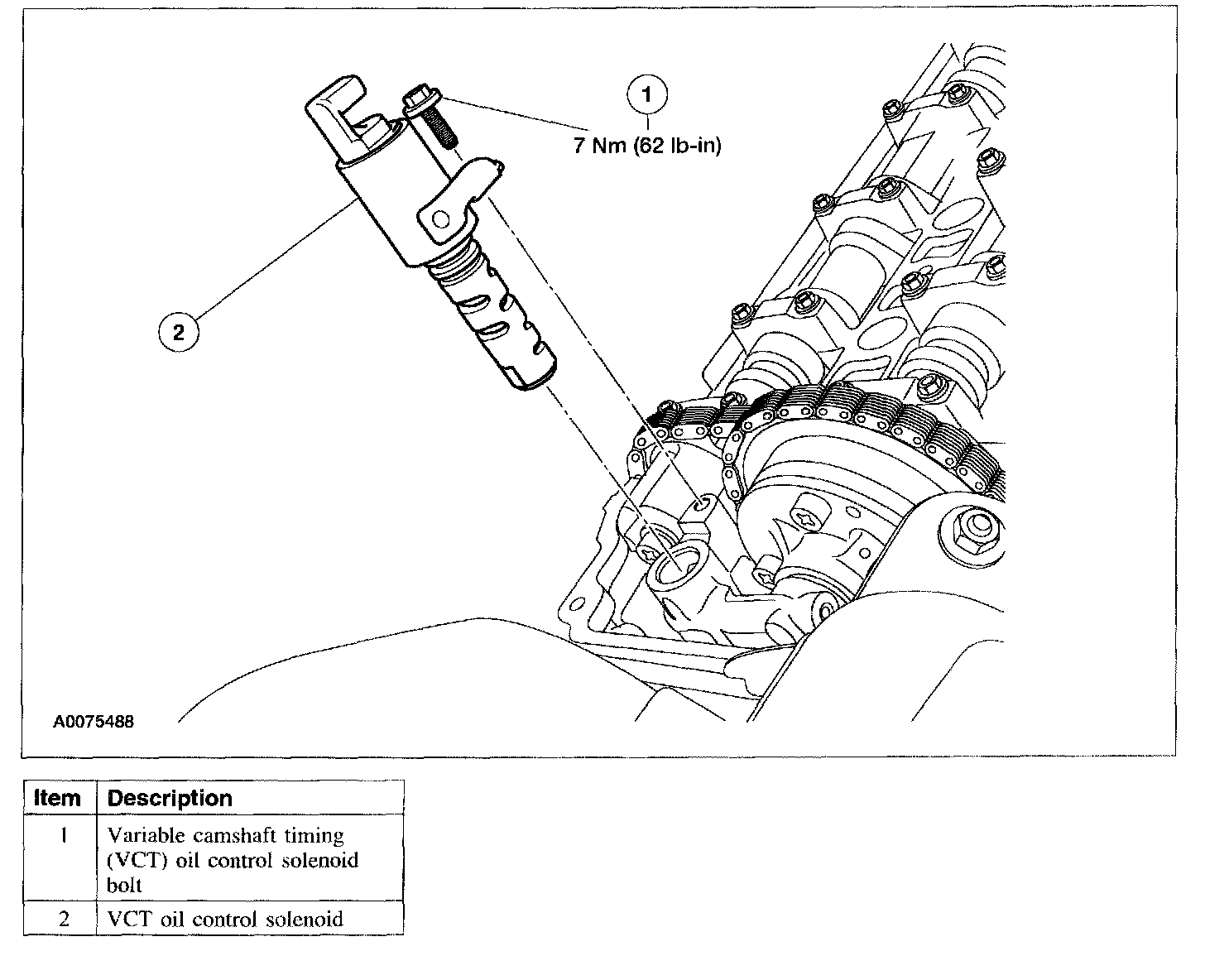

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
