Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

REMOVAL
1. Disconnect the battery ground cable.

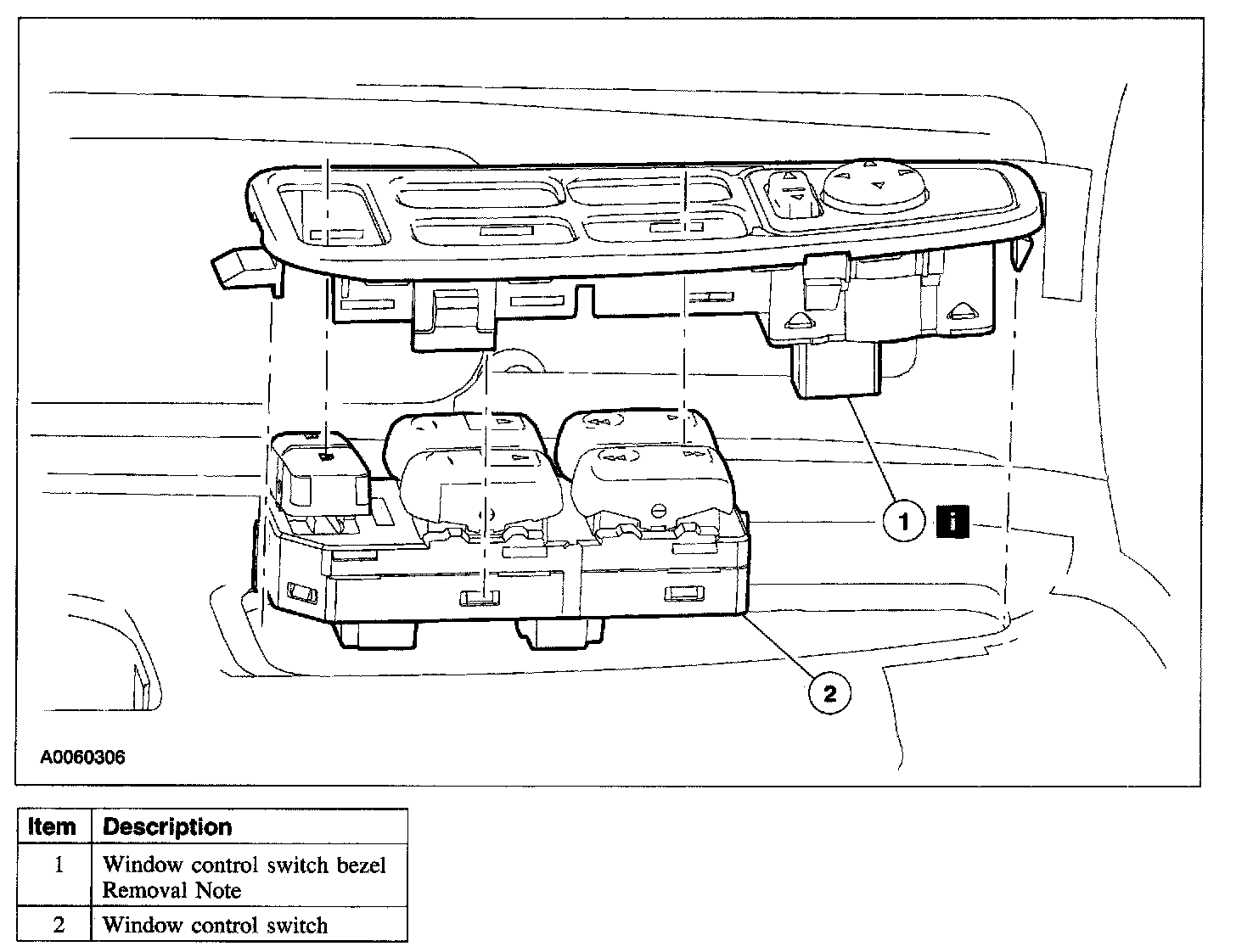

2. Remove the components in the order listed in the illustration and table.

Item 1: Window Control Switch Bezel Removal Note







1. Carefully lift out the master window control switch and bezel from the front of the door panel to avoid breaking the tab.
2. Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
