Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the screws and remove the steering wheel rotation sensor.

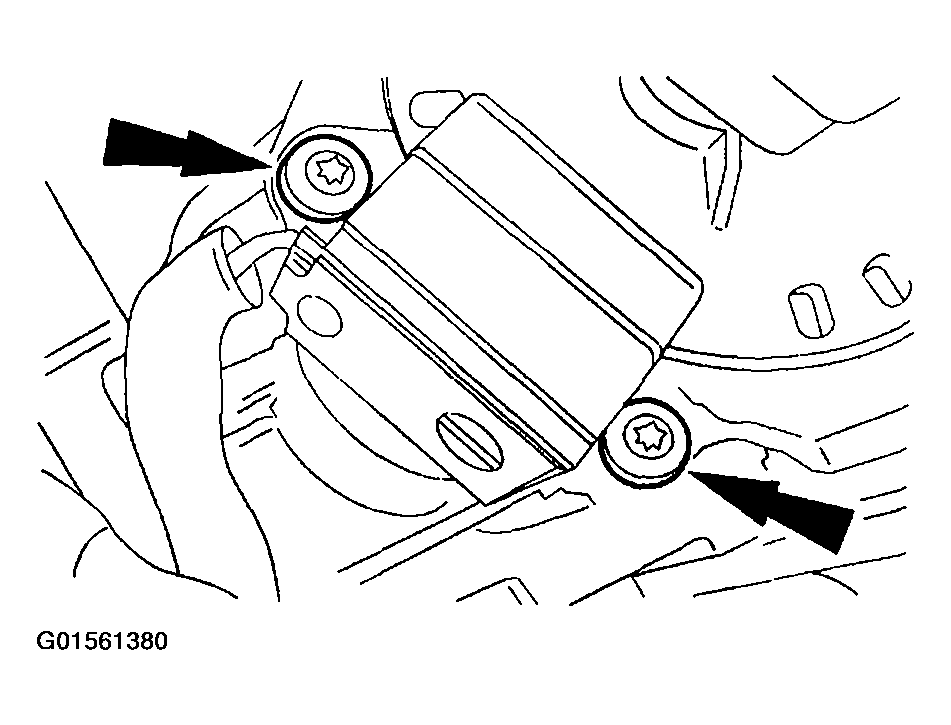

    Fig 1: Removing Screws And Steering Wheel Rotation Sensor
    G01561380Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
