Removal and Installation

  1. Remove the front floor console. For additional information, refer INSTRUMENT PANEL AND CONSOLE .
  2. Remove the yaw rate sensor.

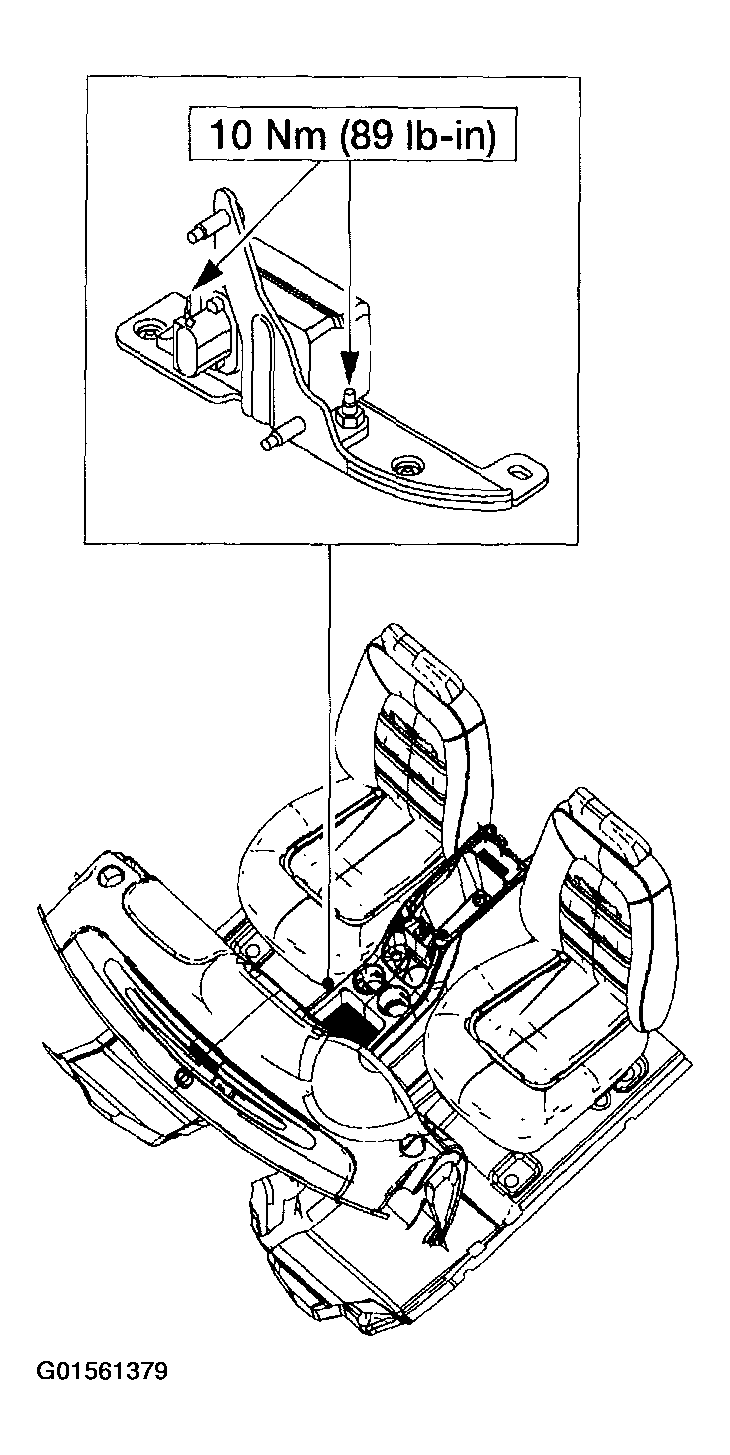

    Fig 1: Removing Yaw Rate Sensor
    G01561379Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
