Main Control Valve Body - Disassembly And Assembly: Notes

Fig 1: Identifying Main Control Valve Body
G01564167Courtesy of FORD MOTOR CO.

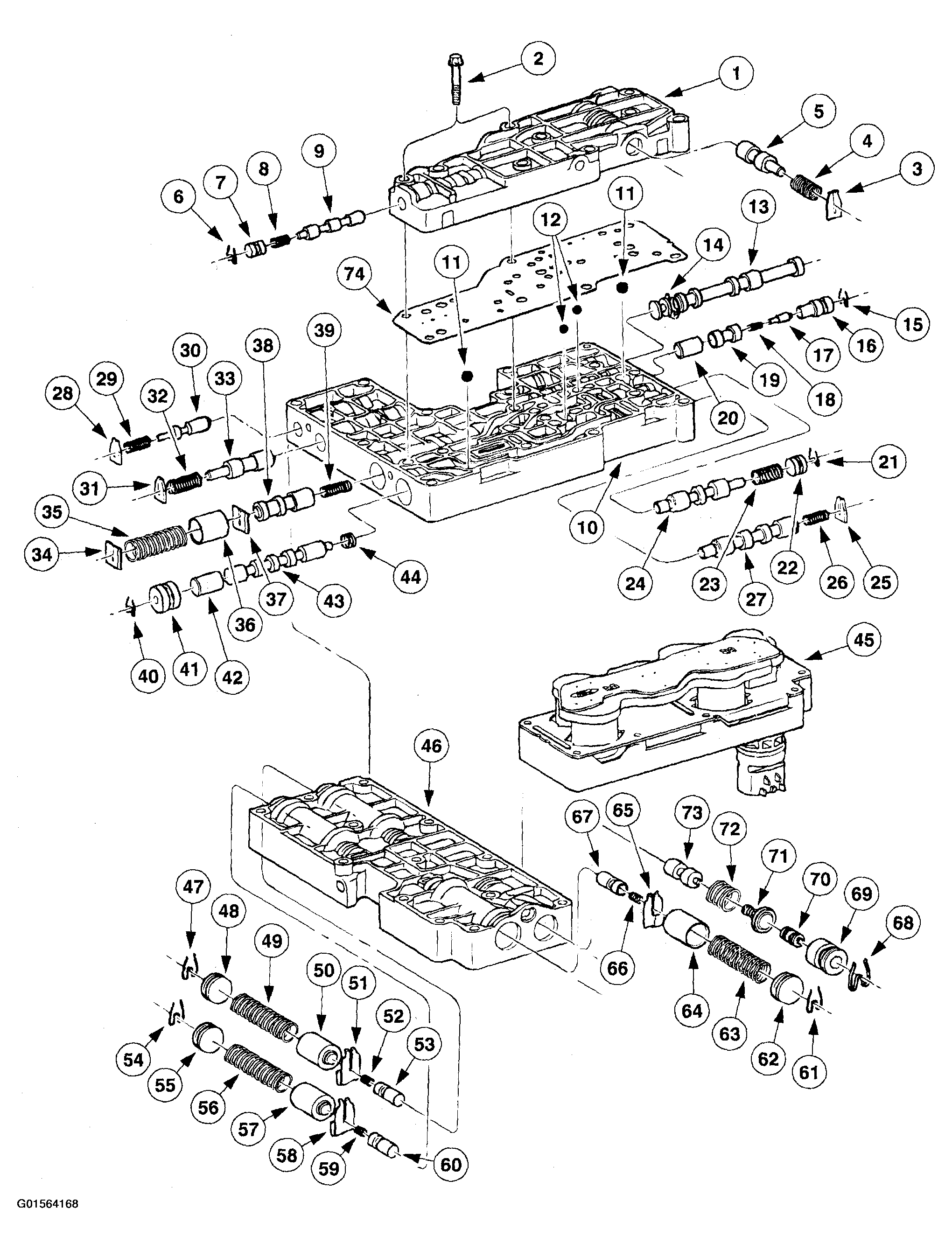

Fig 2: Exploded View Of Upper, Lower, Accumulator And Solenoid Bodies
G01564168Courtesy of FORD MOTOR CO.

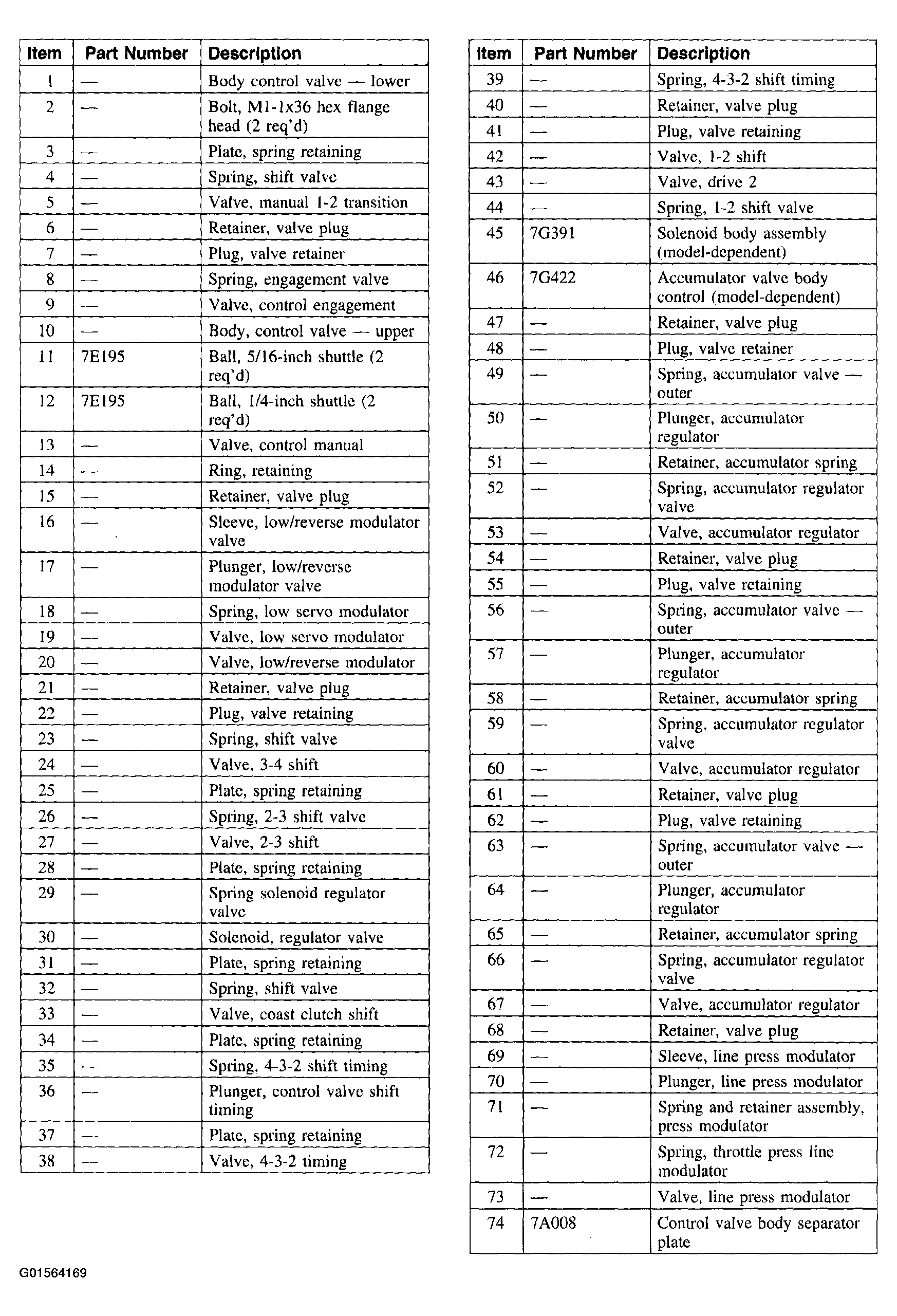

Fig 3: Identifying Upper, Lower, Accumulator And Solenoid Bodies Item Description Chart
G01564169Courtesy of FORD MOTOR CO.
