Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs

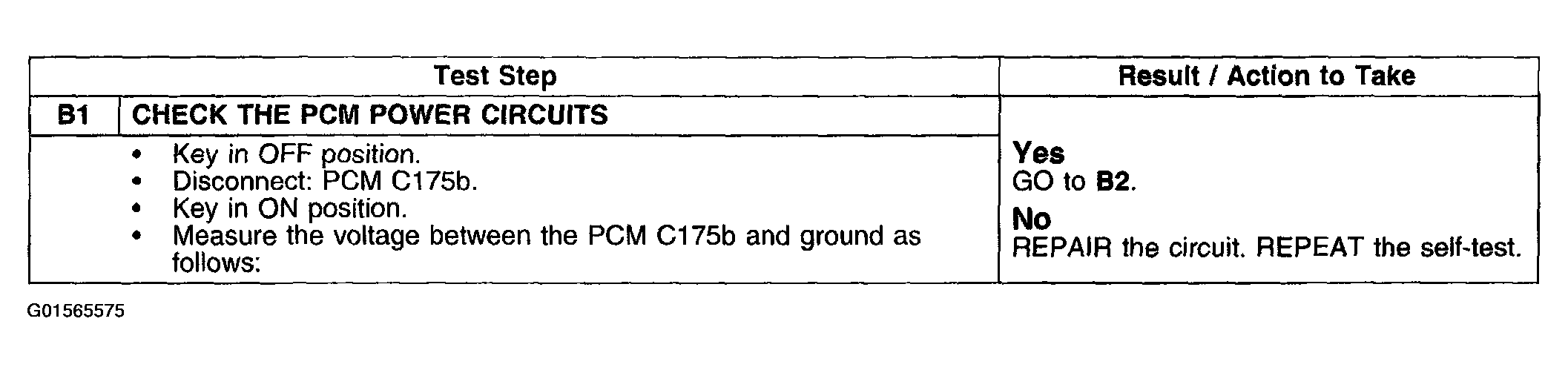

Fig 1: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B1)

Courtesy of FORD MOTOR CO.

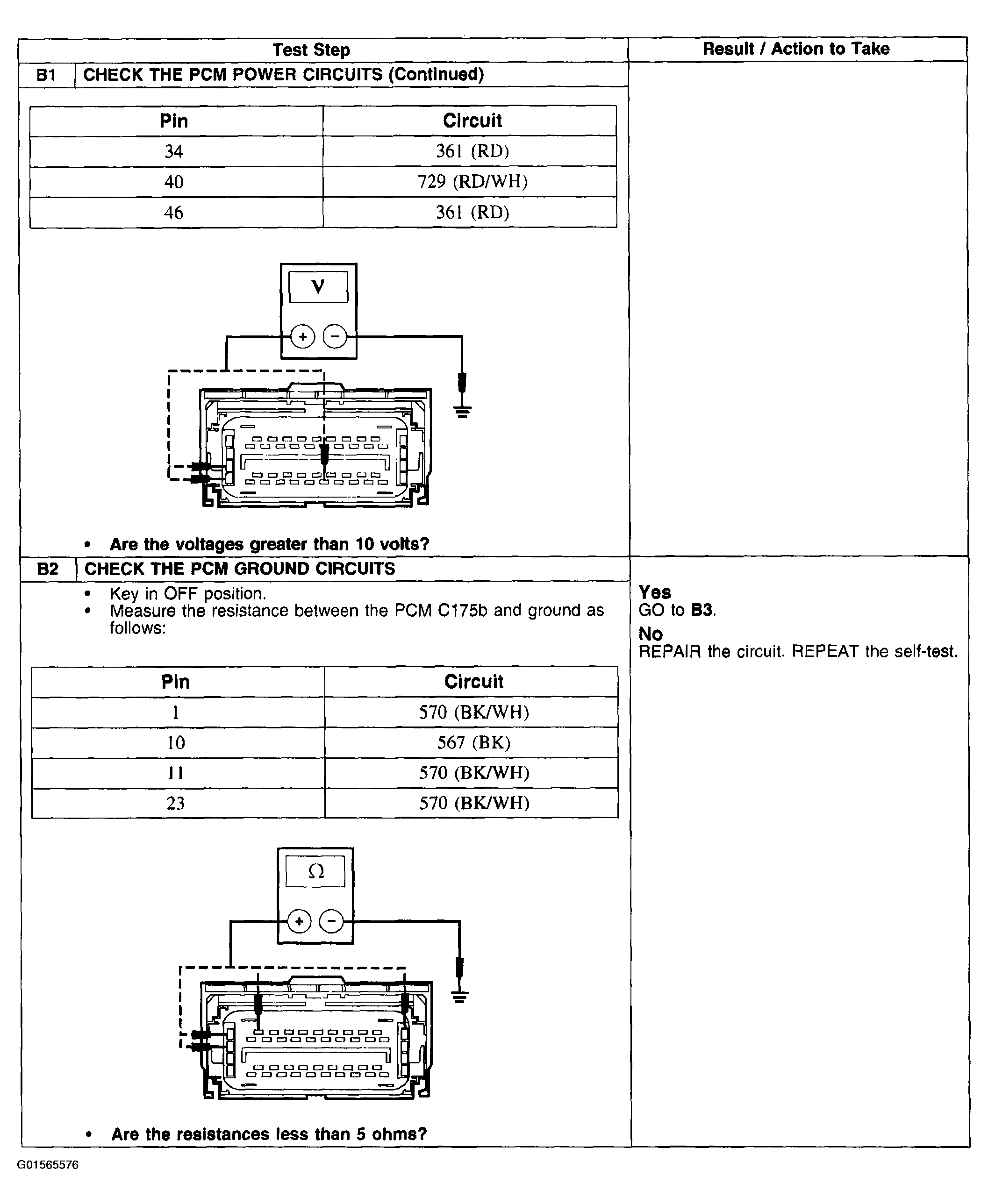

Fig 2: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B1-B2)

Courtesy of FORD MOTOR CO.

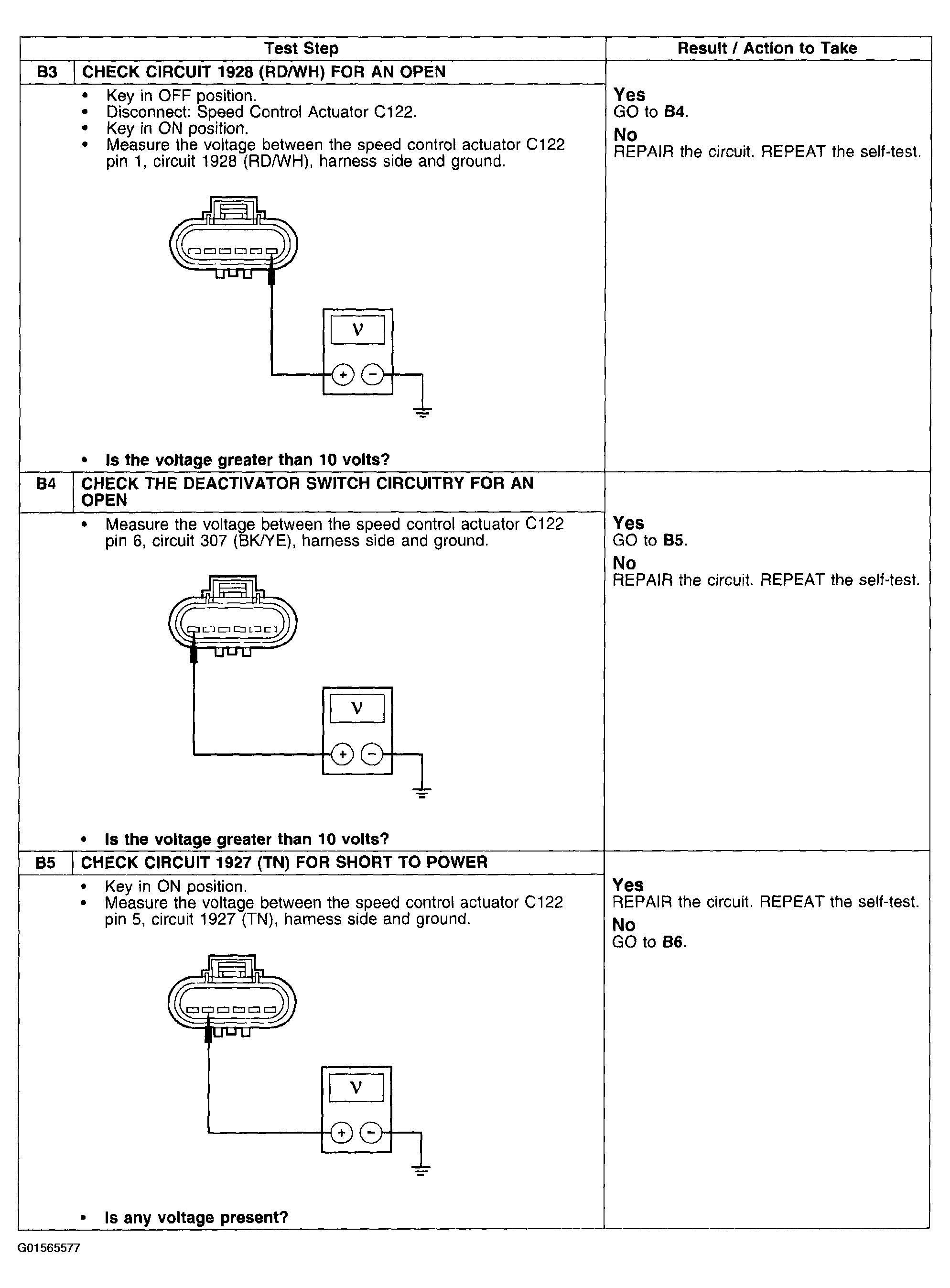

Fig 3: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B3-B5)

Courtesy of FORD MOTOR CO.

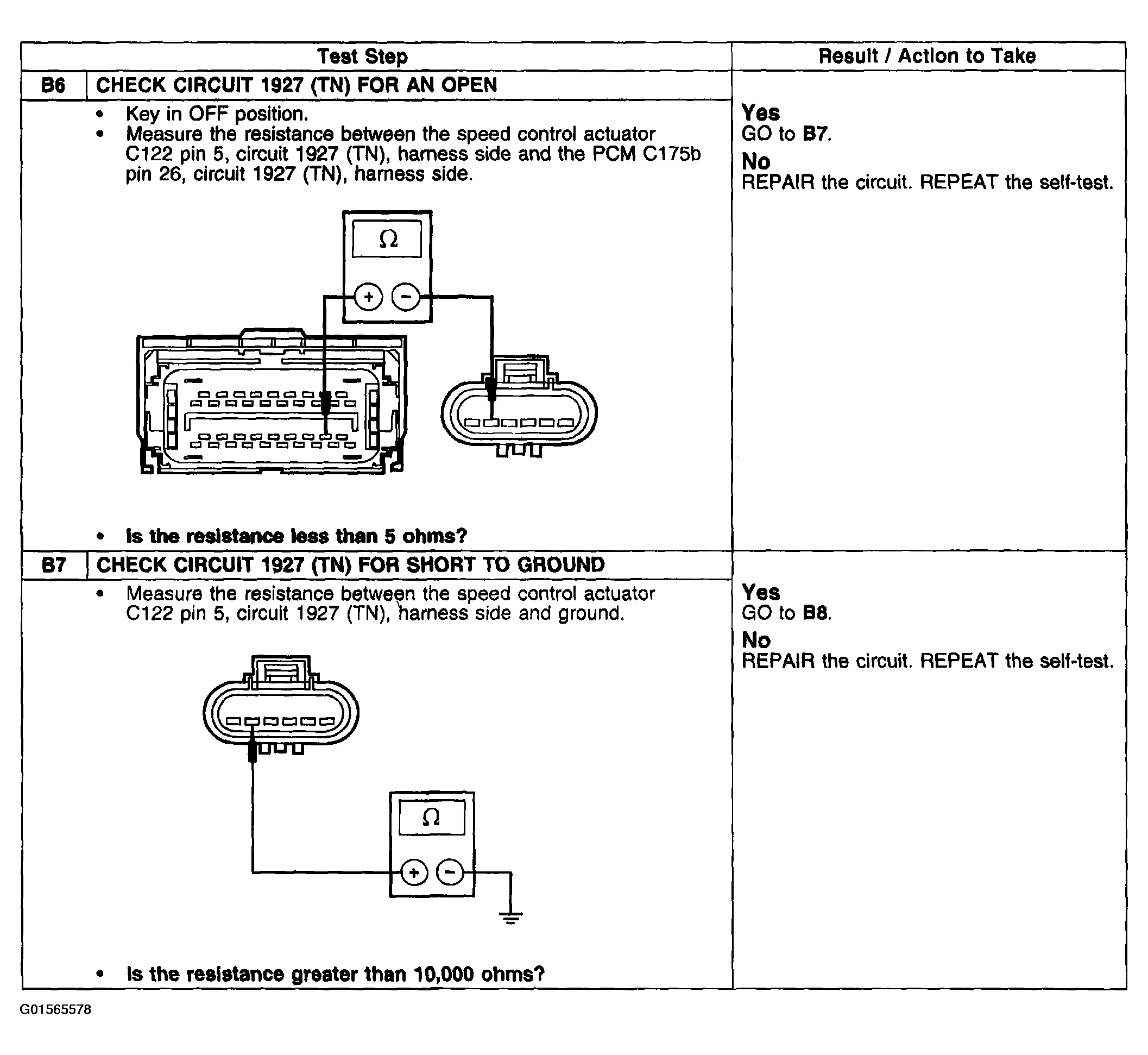

Fig 4: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B6-B7)

Courtesy of FORD MOTOR CO.

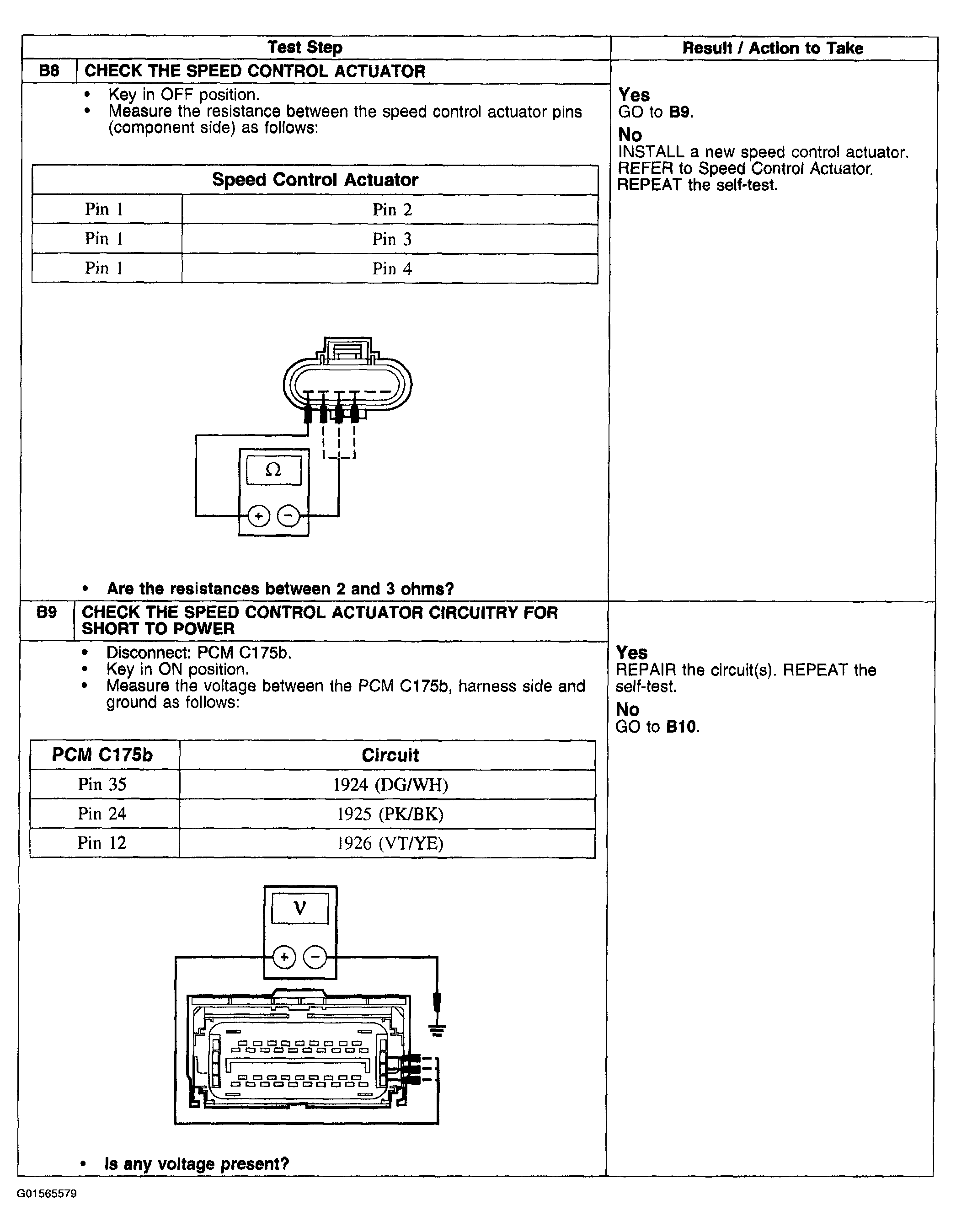

Fig 5: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B8-B9)

Courtesy of FORD MOTOR CO.

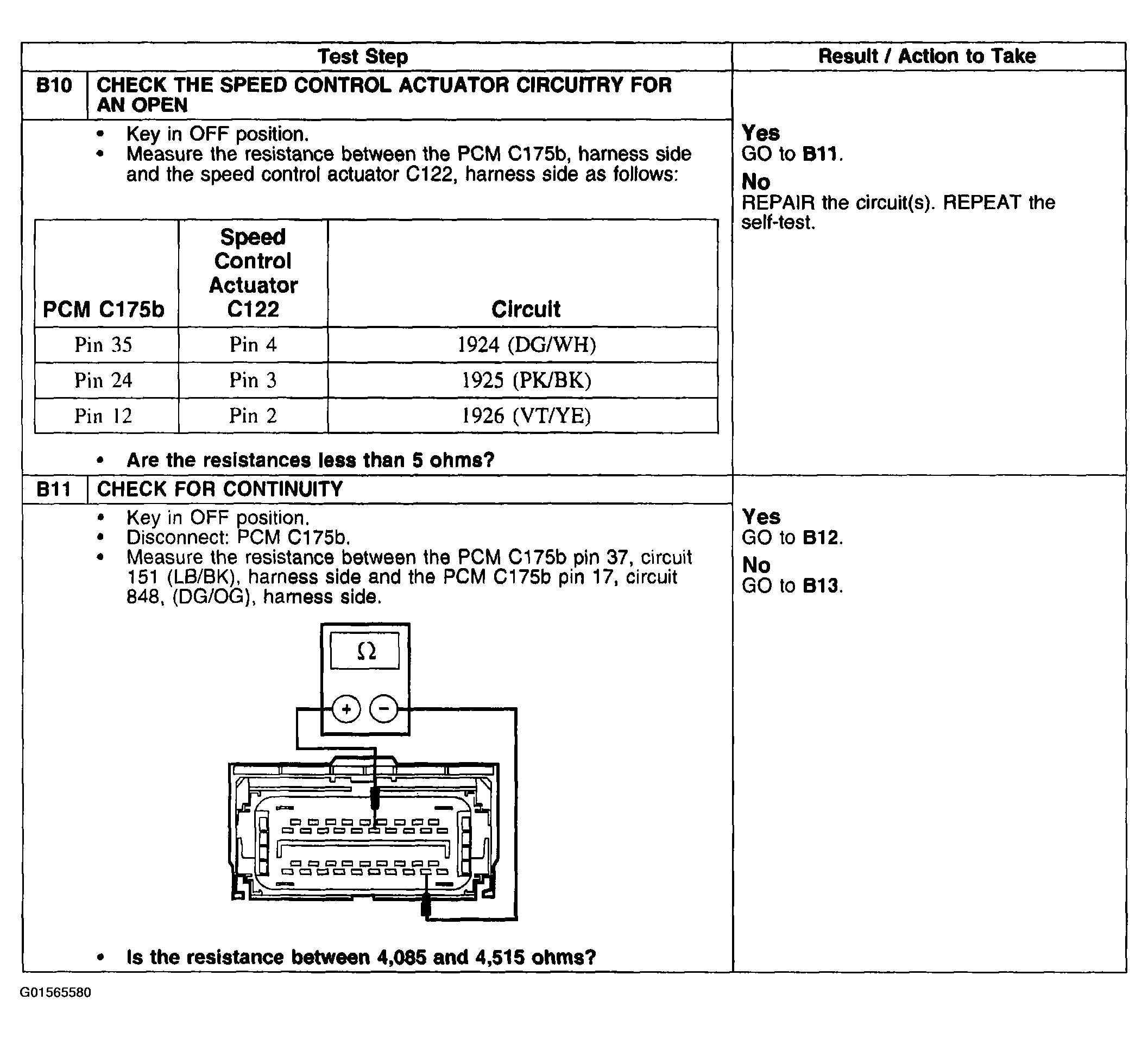

Fig 6: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B10-B11)

Courtesy of FORD MOTOR CO.

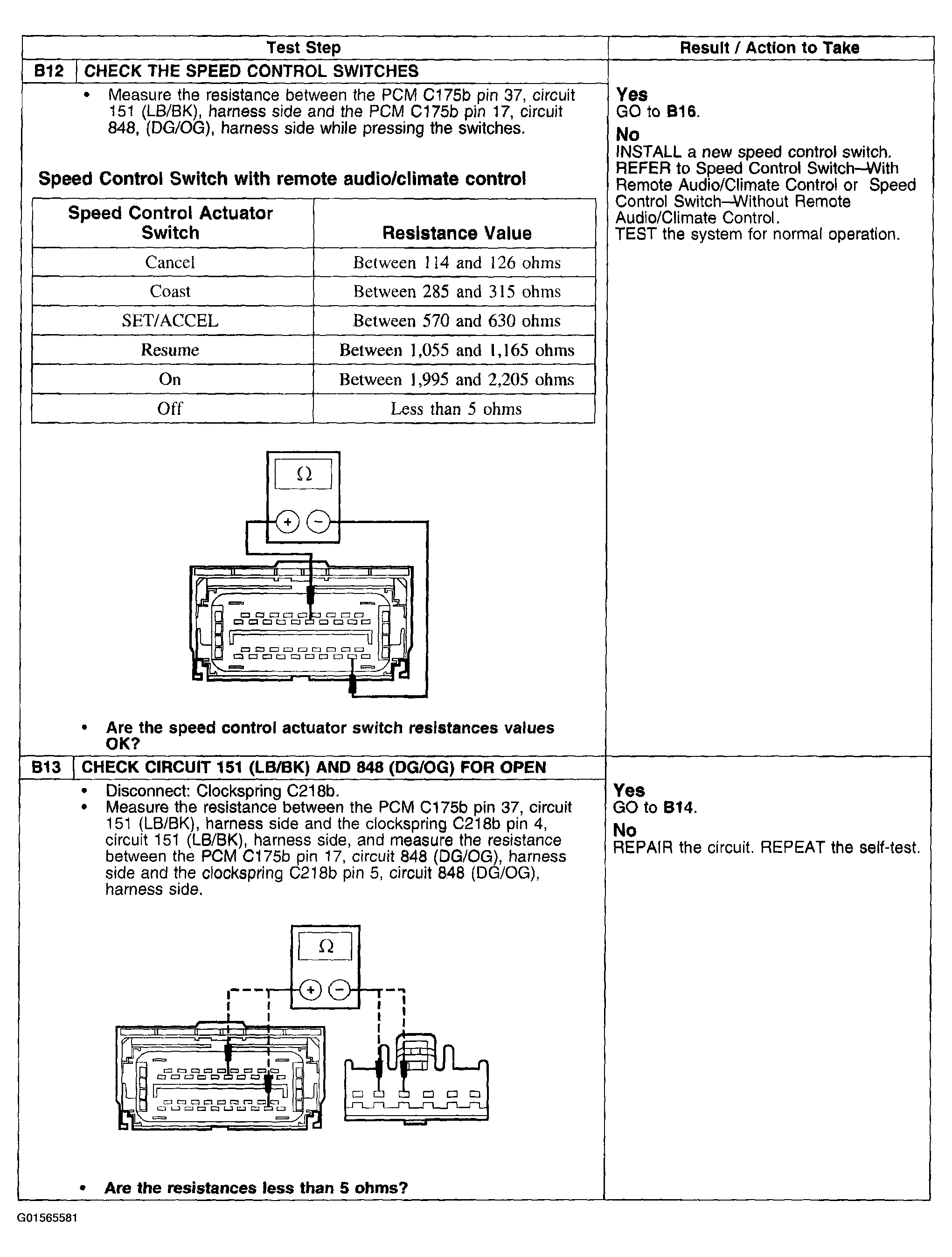

Fig 7: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B12-B13)

Courtesy of FORD MOTOR CO.

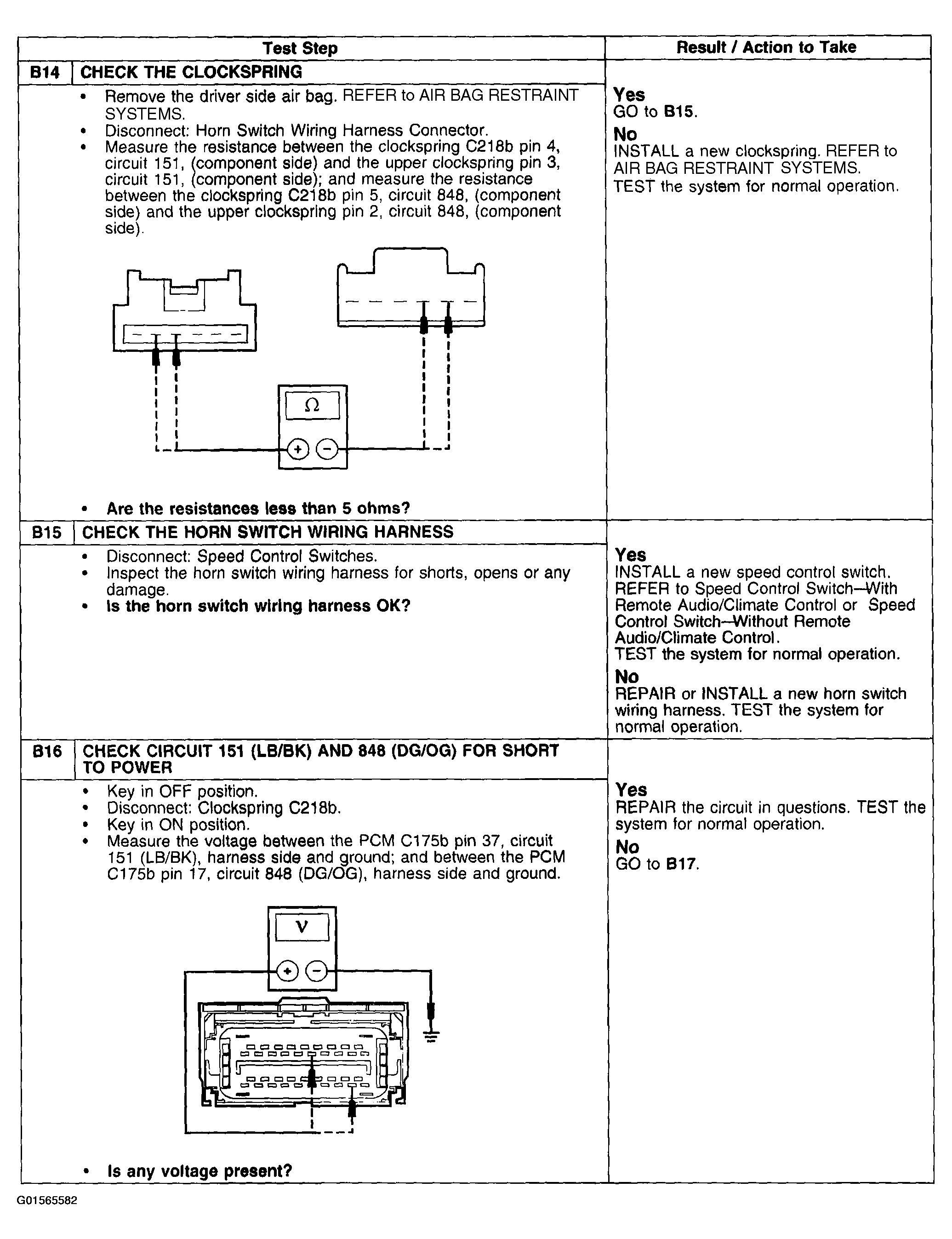

Fig 8: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B14-B16)

Courtesy of FORD MOTOR CO.

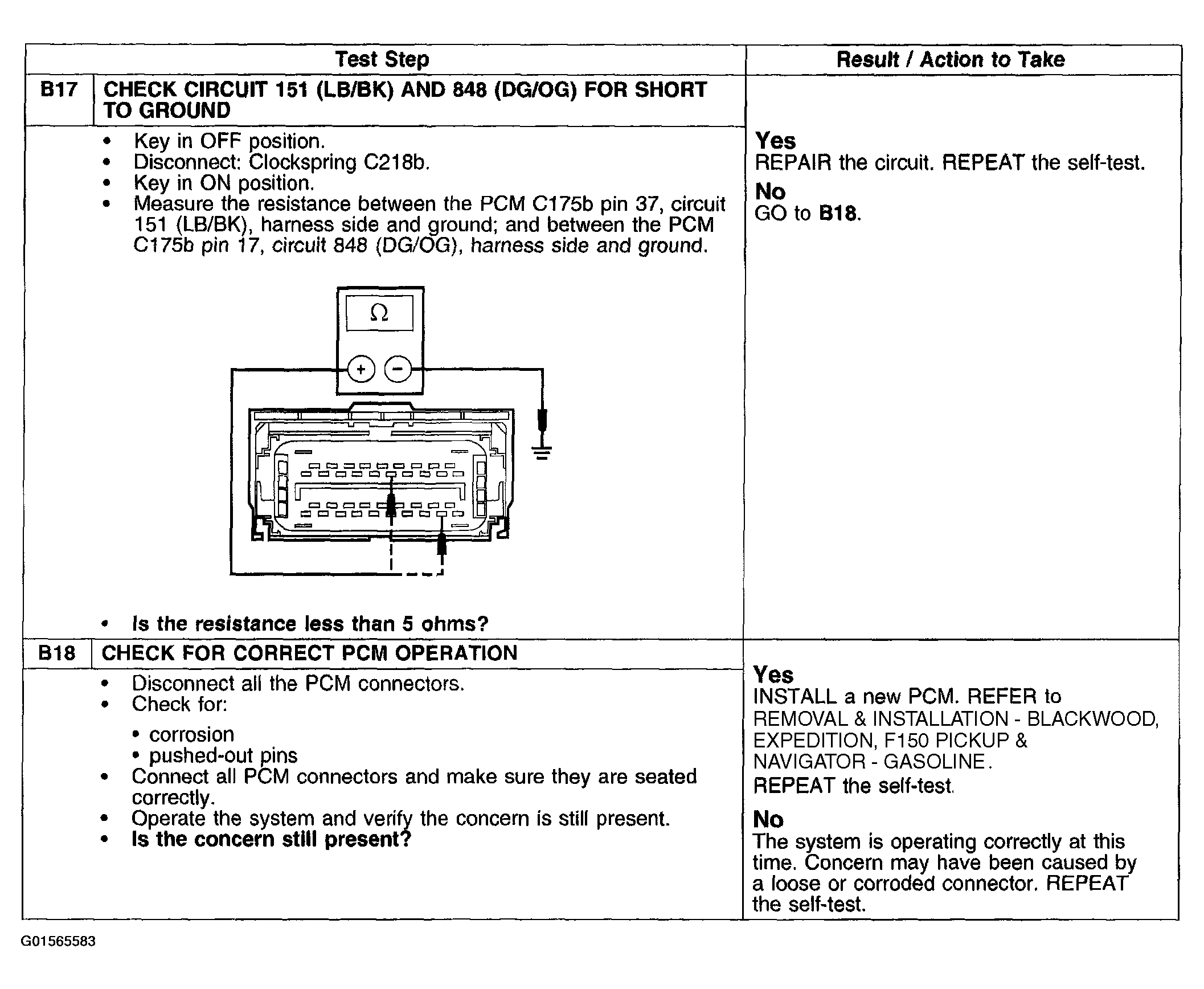

Fig 9: Pinpoint Test B Chart: Speed Control Is Inoperative-No DTCs (B17-B18)

Courtesy of FORD MOTOR CO.
