Inspection and Verification
NOTE:
If a new stability assist module is installed it must be reconfigured. For additional information, refer to
MODULE CONFIGURATION
.
- Verify the customer's concern by operating the vehicle to duplicate the condition.
- Verify the stoplamps operate correctly by depressing and releasing the brake pedal with the ignition switch in the OFF position. If the stoplamps do not operate correctly, refer to EXTERIOR LIGHTING . If the stoplamps operate correctly, proceed to the next step.
- Verify that the PRNDL operates correctly on the instrument cluster. If the PRNDL does not operate correctly, refer to INSTRUMENT CLUSTER . If the PRNDL operates correctly, proceed to the next step.

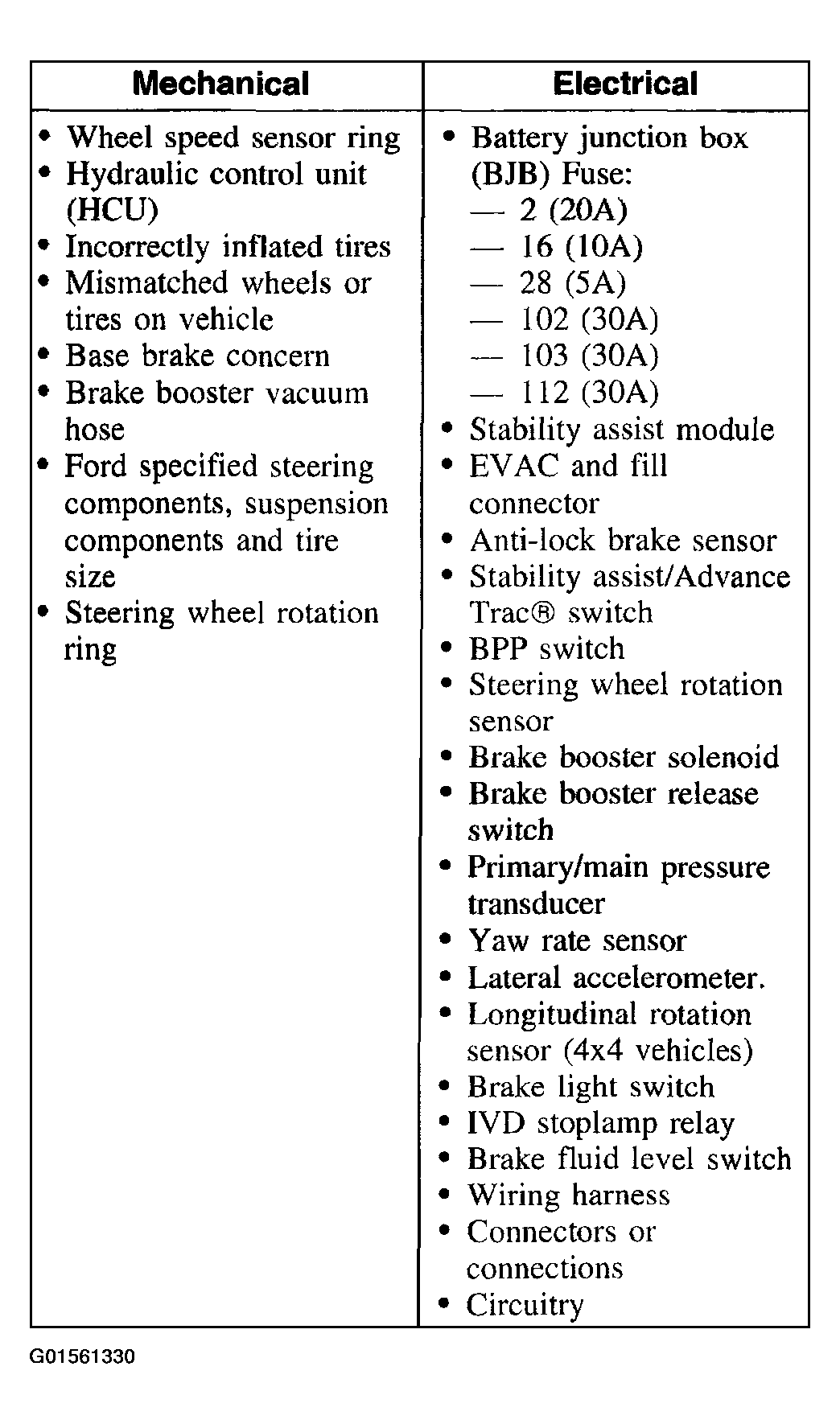

- Inspect to determine if one of the following mechanical or electrical concerns apply:
- If the concern remains after the inspection, connect the scan tester to the data link connector (DLC) located beneath the instrument panel, and select the vehicle to be tested from the scan tester menu. If the scan tester does not communicate with the vehicle:
- Check that the program card is correctly installed.
- Check the connection of the data link connector to the vehicle.
- Check that the ignition switch is in the RUN position.
- If the scan tester still does not communicate with the vehicle, refer to the scan tester manual.
- Carry out the DATA LINK DIAGNOSTIC TEST. If scan tester responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK .
- NO RESP/NOT EQUIP for stability assist module, GO to PINPOINT TEST A: NO COMMUNICATION WITH STABILITY ASSIST MODULE .
- SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the stability assist module.
- If the DTCs retrieved are related to the concern, go to STABILITY ASSIST MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX to continue diagnostics.
- If no DTCs related to the concern are retrieved, GO to SYMPTOM CHART to continue diagnostics.
