Pinpoint Test A: No Communication With 4WAS Module

WARNING: This page is about a different variant/trim than selected.

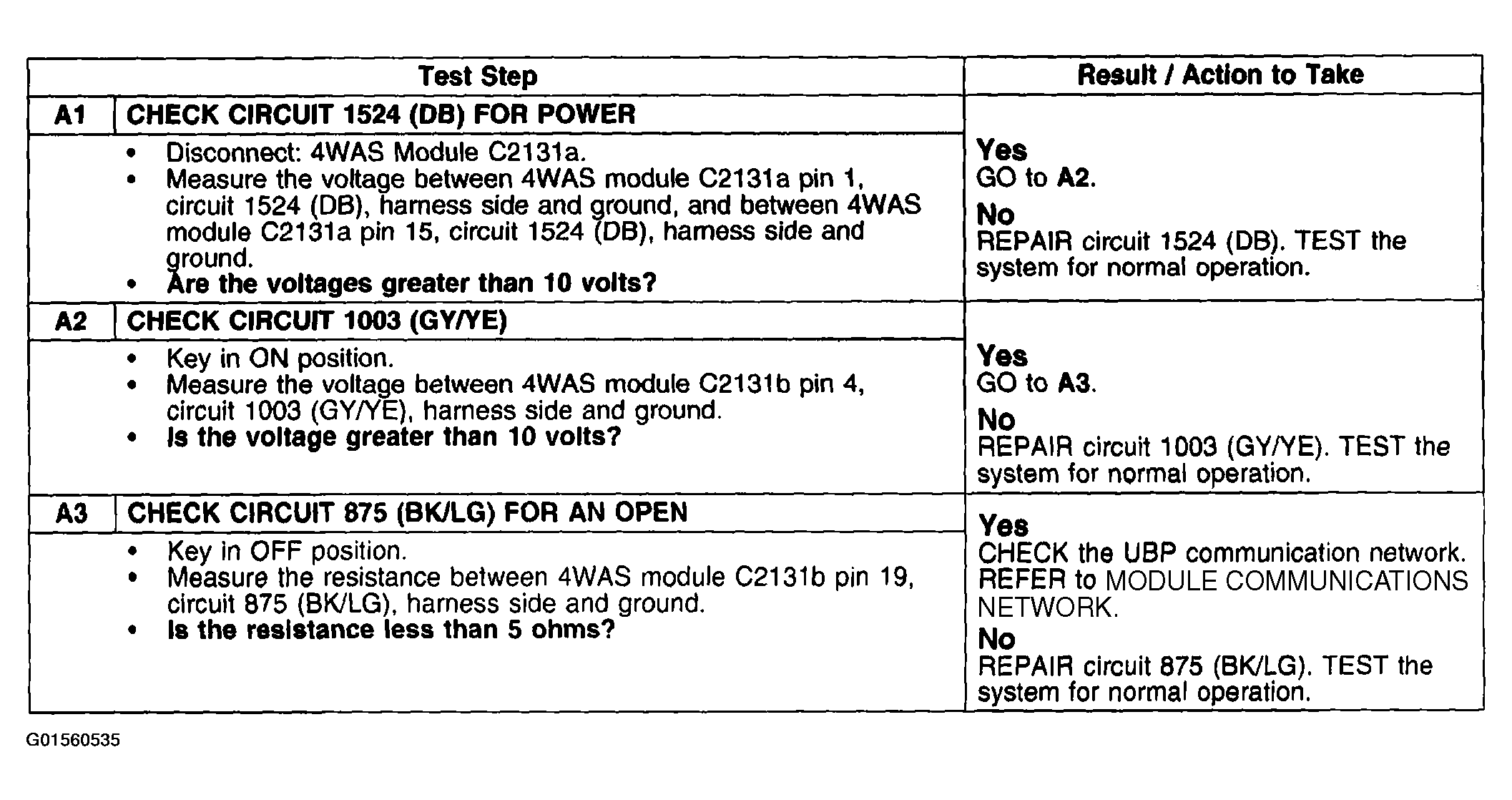

Fig 1: Pinpoint Test A: No Communication With 4WAS Module
G01560535Courtesy of FORD MOTOR CO.
